Card PCI 4 cổng CAN FD ICP DAS PISO-CAN400U-FD-T CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

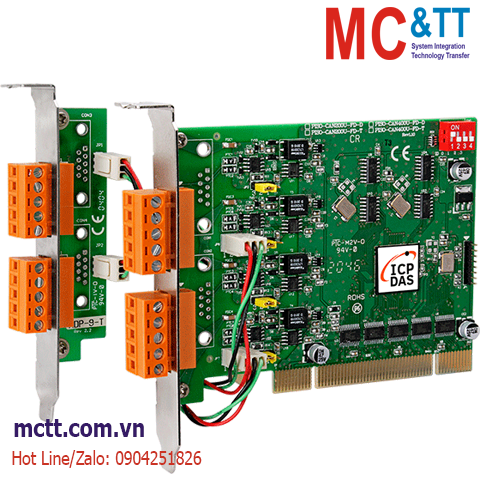

4-Port CAN FD Universal PCI Card

THÔNG TIN SẢN PHẨM

Features

Compatible with the ISO 11898-2 standard
Compatible with CAN specification 2.0 A/B and FD
CAN FD support for ISO and Non-ISO (Bosch) standards switchable
CAN FD bit rates for data field from 100 kbps to 10000 kbps
CAN bit rates from 10 kbps to 1000 kbps
Support CAN Bus message filter configuration
Board number selectable via DIP switch
Built-in jumper to select 120 ohm terminal resister for CAN Bus
Drivers provided for Windows 7/8.1/10
Demos and libraries provided for C#.Net, VB.Net and VC++.Net

Introduction

CAN FD (CAN with Flexible Data-Rate) is a newer extension version of the CAN 2.0 protocol. It was developed by Bosch and was released in 2012. It has been significantly improved during the standardization process and is nowadays in ISO 11898-1:2015. The CAN FD speeds up the data transmission and packs more data into each message.
PISO-CAN400U-FD-T is a very powerful and economic solution for an active CAN board. It has four independent CAN bus communication ports with 5-pin screw terminal connector, and has the ability to cover a wide range of CAN FD applications. It uses Microchip CAN FD controllers and TI TCAN1042HG series transceivers, which provide bus arbitration and error detection features, combined with auto-correction and re-transmission functionality.

Applications

Control System
Building Automation
Factory Automation
Distributed data acquisition

Click to view the Introduction of https://mctt.vn/can-bus-icp-das

Specifications

Software
Driver	Windows 7/8.1/10 (32-bit/64-bit OS)
SDK	C#.Net, VB.Net, VC++.Net

PC Bus
Type	Universal PCI, 3.3 V and 5 V, 33 MHz, 32-bit, plug and play
Board No.	Configurable via DIP switch

CAN
Controller	Microchip MCP2518FD
Ports	4
Baud Rate	CAN bit rates: 10 k ~ 1 M bps, CAN FD bit rates for data field: 100 k ~ 10 M bps (*Note1)
Isolation	3000 VDC for DC-to-DC, 2500 Vrms for photo-couple
Terminal Resistor	Jumper for 120 Ω terminal resistor
Specification	ISO 11898-2, CAN 2.0 A/B and FD
Filter	Yes

Power
Consumption	200 mA @ 5V

Mechanical
Dimensions (mm)	121.7 x 21.6 x 92.7 (W x L x H)

Environment
Operating Temperature	0 ~ +60 °C
Storage Temperature	-20 ~ +70 °C
Humidity	5 ~ 85% RH, Non-condensing

Specification Memo

Note1: The maximum CAN FD data rate can be exceeded depending on the concrete operating conditions (cable length, network topology, settings,...), but it can also not be reached.

Download

Datasheet

Documents

Ordering Information

PISO-CAN400U-FD-T CR

4-port Isolated Protection CAN FD Universal PCI Card with 5-pin screw terminal connector, including a ADP-9-T board (RoHS)
