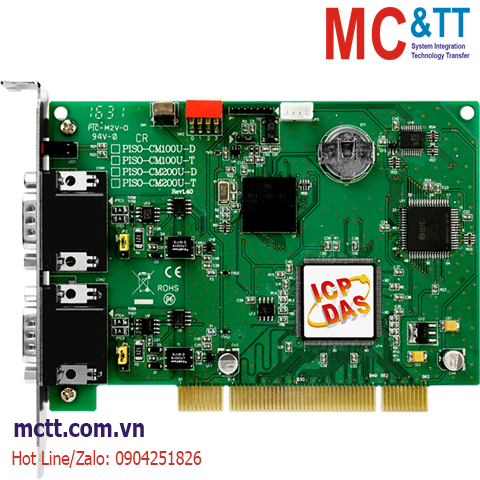

Card PCI 2 cổng CAN ICP DAS PISO-CM200U-D CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

2-port CAN Programmable Universal PCI Card

THÔNG TIN SẢN PHẨM

Features

• Embedded 32-bit microprocessor
• NXP 82C250 CAN transceiver
• Bosch C_CAN controller
• Supports both CAN 2.0A and CAN 2.0B specifications
• Storage Timestamp with a precision of at least ±1 ms
• Board number selectable via DIP switch
• Dual port RAM communication mechanism
• Embedded RTC (real time clock)
• Transmission/reception buffer for up to 256 CAN messages
• Allows a maximum of 5 sets of cyclic transmission messages
• Cyclic transmission message precision: ±1ms
• Easy to update firmware

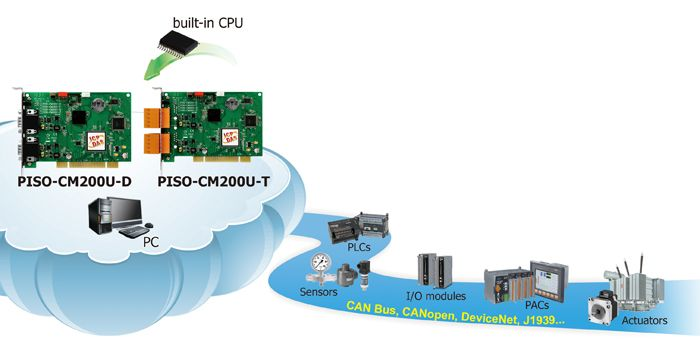

Introduction

The CAN (Controller Area Network) is a serial communication protocol, and efficiently supports distributed real-time control with a very high level of security. It is an especially suited for networking "intelligent" devices as well as sensors and actuators within a system or sub-system. In CAN networks, there is no addressing of subscribers or stations in the conventional sense, but instead prioritized messages are transmitted.

ICP DAS provides an open architecture platform for CAN bus PISO-CM100/100U. The PISO-CM100/100U represents a very powerful and economic solution of an active CAN board with one CAN channels, covering a wide range of CAN applications. The 16-bit on-board microcontroller allows, among many other features, the filtering, preprocessing, and storage (with timestamp) of CAN messages as well as the real-time transmission of CAN messages. PISO-CM100/100U also uses the new Phillips SJA1000T and Transceiver 82C250/251, which provide bus arbitration and error detection with auto correction and re-transmission function. Under the effect of the powerful microcontroller, this card can be made for one CAN controller without losing data, even in systems with a high bus load. Besides, equipped with integrated intelligence functions, the PISO-CM100/100U makes it is possible to preprocess CAN data streams, thus relieving the PC of a considerable burden. As a result, real-time requirements on the PC applications are drastically reduced. Due to the state-of-the-art, it can be installed in a slot of 32-bits PCI bus or Universal PCI bus and supported truly “Plug & play” technology.

In addition, users can develop their own CAN application by using the PISO-CM100/100U library. When the PISO-CM100/100U is active, the data exchange between users’ application and can bus firmware is performed via the memory mapping method of the PISO-CM100/100U.

Specification

Software
Driver	Windows XP/7/8.1/10 (32-bit/64-bit) OS
Library	C#.Net, VB.Net, VC++.Net

LED Indicators
Status	1 x CAN status 1 x Operating mode

PC Bus
Type	Universal PCI, 5 V, 33 MHz, 32-bit, plug and play
Board No.	Configurable via DIP switch

CAN
Controller	Bosch C_CAN
Transceiver	NXP 82C250
Ports	2
Baud Rate	10 k ~ 1 M bps
Isolation	3000 VDC for DC-to-DC, 3000 Vrms for photo-couple
Terminal Resistor	Jumper for 120 Ω terminal resistor

Power
Consumption	800 mA @ 5 V

Mechanical
Dimensions (mm)	150 x 22 x 121 (W x L x H)

Environmental
Operating Temperature	0 ~ +60 °C
Storage Temperature	-20 ~ +70 °C
Humidity	5 ~ 85% RH, Non-condensing

Download

Data sheet

Documents

Ordering Information

PISO-CM200U-D CR

2-port Programmable CAN Universal PCI Card with 9-Pin D-sub Connector (RoHS)
