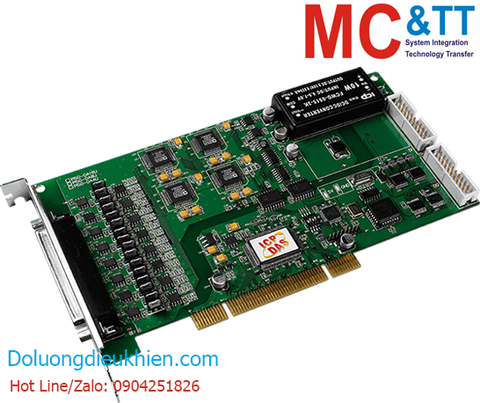

Miễn phí vận chuyển với đơn hàng từ 10.000.000đCard PCI 16 kênh đầu ra tương tự AO + 16 kênh vào/ra số DIO 5V/TTL + 3 kênh Timer/Counter/Frequency ICP DAS PISO-DA16U CR
Features
Introduction
The PISO-DA series adds high-voltage isolation design that offers a durable ability to keep users' computers safe from unexpected surge. It is the built-in high-quality isolation components that make PISO-DA series featuring 2500 VDC bus-typed isolation!For the PISO-DA series, their voltage output range is from -10 V to +10 V, and their current output range is from 0 to 20 mA. In addition, These cards also feature the following advantages by ICP DAS's innovation:
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.
Accessories
Specification
| Hardware | |
|---|---|
| Card ID | Yes (4-bit) |
| Connector | Female DB37 x 1 20-pin Box header x 2 |
| Analog Output | |
|---|---|
| Channels | 16 |
| Range | Voltage: ±10 V Current: 0 ~ 20 mA |
| Resolution | 14-bit |
| Accuracy | 0.04% of FSR ±2 LSB @ 25 °C, ± 10 V |
| Voltage Output Capability | ±5 mA |
| Response Time | 333 kHz (Typical) |
| Slew Rate | 0.71 V/μs |
| Isolation | 2500 V (Bus Type) |
| Operation Mode | Static Update |
| Digital Input | |
|---|---|
| Channels | 16 |
| Type | 5 V/TTL |
| TTL Input, ON Voltage Level | 2.0 V Min. |
| TTL Input, OFF Voltage Level | 0.8 V Max. |
| Response Speed | 1.0 MHz (Typical) |
| Trigger Mode | Static Update |
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | 5 V/TTL |
| Operation Mode | Static Update |
| Voltage | Logic 0: 0.4 V Max. Logic 1: 2.4 V Min. |
| Max. Load Current | Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V |
| Response Speed | 1.0 MHz (Typical) |
| Timer/Counter/Frequency | |
|---|---|
| Channels | 3 |
| Type | 5 V/TTL |
| Resolution | 16-bit |
| Reference Clock | Internal: 4 MHz |
| PC Bus | |
|---|---|
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
|---|---|
| Consumption | 3000 mA @ +5 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 105.06 x 188 x 22 (W x L x D) |
| Environmental | |
|---|---|
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Download
Odering information
| PISO-DA16U CR | Universal PCI, 14-bit, 16-ch Isolated Analog Output Board (RoHS) Includes one CA-4002 D-Sub connector |
