Miễn phí vận chuyển với đơn hàng từ 10.000.000đCard PCI 2 kênh đầu ra tương tự AO ICP DAS PISO-DA2U CR
Features
Introduction
The built-in high-quality isolation components on the PISO-DA2U make it featuring 3750 VDC bus-typed and channel-channel isolation, and offer durable abilities. For the PISO-DA2U, the voltage output ranges are +/-10 V, +/-5 V, 0~+10 V and 0~+5 V and the current output ranges are 0 ~ 20 mA and 4 ~ 20 mA. In addition, the PISO-DA2U also features the following advantages by ICP DAS's innovation: ICP DAS provides the software calibration instead of the manual calibration so that no jumpers and trim-pots are required anymore.
The calibration information can be saved in EEPROM for long-term use. Individual channel configuration.In other words, every channel can be individually configured as voltage output or current output! ICP DAS provides the Card ID function. Users can set card ID for each card and then recognize them one by one when more than two boards are used in a computer.
The cards support various OS versions, such as Linux, DOS, Windows. DLL and Active X control together with various language sample program based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic, C#.NET, Visual Basic.NET and LabVIEW are provided in order to help users to quickly and easily develop their own applications.

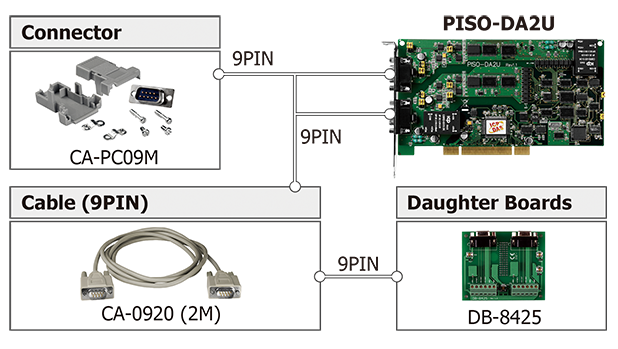

Accessories
Specification
| Hardware | |
|---|---|
| Card ID | Yes (4-bit) |
| Connector | Male DB9 x 2 |
| Analog Output | |
|---|---|
| Channels | 2 |
| Range | Voltage: ±10 V, ±5 V, 0 ~ 10 V, 0 ~ 5 V Current: 0 ~ 20 mA, 4 ~ 20 mA |
| Resolution | 12-bit |
| Accuracy | 0.015% of FSR ±1/2 LSB @ 25 °C, ±10 V |
| Voltage Output Capability | ±5 mA |
| Response Time | 500 kHz |
| Slew Rate | 0.15 V/μs |
| Isolation | 3750 VDC (Bus Type, CH-to-CH) |
| Operation Mode | Static Update |
| PC Bus | |
|---|---|
| Type | 3.3 V/5 V Universal PCI, 32-bit, 33 MHz |
| Data Bus | 8-bit |
| Power | |
|---|---|
| Consumption | 1350 mA @ +5 V |
| Mechanical | |
|---|---|
| Dimensions (mm) | 98 x 189 x 22 (W x L x D) |
| Environmental | |
|---|---|
| Operating Temperature | 0 ~ +60°C |
| Storage Temperature | -20 ~ +70°C |
| Humidity | 5 ~ 85% RH, Non-condensing |
Download
Odering information
| PISO-DA2U CR | Universal PCI, 2-ch Isolated Analog Output Board (RoHS) Includes two CA-PC09M D-Sub connectors |
