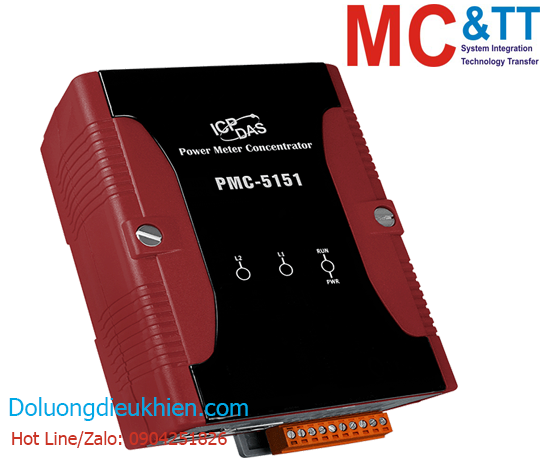

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ quản lý năng lượng tập trung (Web-based Power Meter Concentrator) ICP DAS PMC-5151-SC CR
Features
Introduction
The PMC-5151 is a web-based intelligent Power Meter Concentrator developed by ICP DAS. It offers webpage interface, and features various functions such as: power data collection, logic control, power demand management, data logger and alarm notification functions.PMC-5151 allows connections to ICP DAS Smart Power Meters via RS-485 or Ethernet interface to read the power data of the devices measured by the power meters; and then real-time record the power values in the data logger file. It also provides data logger file auto send-back function; together with PMC Data Server software or SCADA software, it allows collection and analysis of the power data. PMC-5151 is equipped with built-in Web Server that allows direct connections via browsers to the PMC-5151 for viewing power data and setting up the system parameters. It also offers Modbus TCP/RTU Slave function that allows SCADA software or HMI devices to connect to PMC-5151 to get real-time power data of the devices via Modbus TCP/RTU protocol. In addition to ICP DAS XW-Board and M-7000 I/O modules, the PMC-5151 can also connect to standard Modbus TCP/RTU Slave modules. By working with the I/O modules, and functions such as IF-THEN-ELSE logic rule execution and alarm notification functions including Email/SMS/SNMP Trap, PMC-5151 offers more thought-out power demand management and alarm notification functions, and is able to perform load shedding of the devices if required, and enables real-time monitoring and control of the power consumption of the devices.
Application
Specification
| Software | |
|---|---|
| Protocol | • Modbus TCP/RTU for SCADA software • FTP Client & Server • SNMP & SNMP Trap • DDNS |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • Power meters & I/O modules monitoring and control • Data Logger operation • Timer operation (Unlimited set supported) • Schedule operation (Unlimited set supported) • Internal Register operation (48 set supported) • non-SSL & SSL Email sending function • SNTP Time Synchronization |
| Power Management | • Power Data Display • Historical Power Data Report • Power Demand Management • PUE Setting and Display |
| CPU Module | |
|---|---|
| CPU | 32-bit ARM CPU (520 MHz) |
| Storage Expansion | microSD socket with 4 GB microSD card (support up to 32 GB microSDHC card) |
| LED Indicators | |
|---|---|
| Status | 1 x Power/Running |
| I/O Expansion | |
|---|---|
| I/O Type | XW-board |
| Remote Module Support | M-7000/DL Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| Power Meter | PM Series Modbus meter |
| COM Ports | |
|---|---|
| Ports | COM 1: RS-232 (RxD, TxD and GND); non-isolated; COM 2: RS-485 (D+, D-); 2500 VDC; isolated; COM 3: RS-485 (D+, D-); 2500 VDC; isolated; |
| Ethernet | |
|---|---|
| Ports | RJ-45 x 2, 10/100 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| Power | |
|---|---|
| Input Range | 10 ~ 30 VDC |
| Consumption | 4.8 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 91 x 126 x 52 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering information
| PMC-5151-SC CR | Web-based Power Meter Concentrator (Simplified Chinese) (Plastic Case) (RoHS) |
