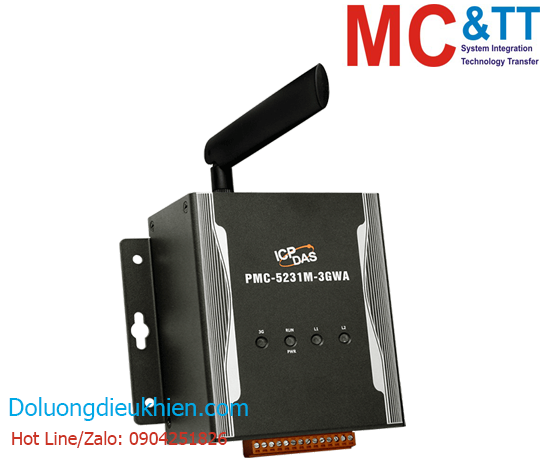

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ quản lý năng lượng tập trung IoT + WCDMA (3G) ICP DAS PMC-5231M-3GWA CR
Tính năng
Giới thiệu
PMC-5231M-3GWA is the new generation of Power Meter Concentrator for meeting the trend of energy saving and carbon reduction in the Industry 4.0 age. It provides flexible integration with the ICP DAS power meters via RS-485 or Ethernet interface, and features various functions such as: measure the power consumption of the devices, energy usage analysis, power demand management and alarm notification functions. The PMC-5231M-3GWA features a built-in Micro SD card. After it retrieving the power data from the power meter, it will save the power data in data log file, and automatically send back the data log files to the back-end management center for data analysis and statistics. PMC-5231M-3GWA offers a user-friendly and intuitive web site interface that allows users to implement the Energy monitoring and management system just a few clicks away; no programming is required. In addition to ICP DAS XV-Board and M-7000 I/O modules, the PMC-5231M-3GWA can also connect to standard Modbus TCP/RTU Slave modules. By working with the I/O modules, and functions such as IF-THEN-ELSE logic rule execution and alarm notification functions including LINE/Email/SMS, PMC-5231M-3GWA offers more thought-out power demand management and alarm notification functions, and is able to perform load shedding of the devices if required, and enables real-time monitoring and control of the power consumption of the devices. PMC-5231M-3GWA also supports the Modbus TCP/RTU, SNMP, FTP and MQTT protocols for seamless integration with the back-end SCADA/MES/IT/IoT/Network Management systems. So that the administrator can monitor the status of power consumption of each device and perform statistics and analysis of the power information, thus improving the overall efficiency in electricity consumption to save costs on utility bills. All of these features make PMC-5231M3GWA a perfect concentrator of power meter in the Energy monitoring and management application of Industry 4.0 age.
Ứng dụng
Energy measurement, monitoring and management
Thông số kỹ thuật
| Software | |
|---|---|
| Protocol | • Modbus TCP/RTU for SCADA software • FTP Client & Server • SNMP & SNMP Trap • MQTT Client (Message Publish & Subscribe; non-SSL & SSL) • Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap) • DDNS |
| Function | • Web Interface for Configuration • IF-THEN-ELSE Logic operation (Unlimited rule supported) • Power meters & I/O modules monitoring and control • Data Logger operation • Timer operation (Unlimited set supported) • Schedule operation (More Powerful; Unlimited set supported) • Internal Register operation (70 set supported) • Instant message sending function (LINE Notify) • non-SSL & SSL Email sending function. • SMS message sending function. • SNTP Time Synchronization |
| Power Management | • Power Data Display • Historical Power Data Report • Power Demand Management • PUE Setting and Display |
| IoT Service Integration | • ICP DAS IoTstar IoT Cloud Management Software • Microsoft Azure IoT Cloud platform • IBM Bluemix IoT Cloud platform |
| CPU Module | |
|---|---|
| CPU | 32-bit ARM CPU (1 GHz) |
| Storage Expansion | microSD socket with 4 GB microSD card (support up to 32 GB microSDHC card) |
| LED Indicators | |
|---|---|
| Status | 1 x Power/Running 1 x Modem Status 1 x Mobile Network Status |
| 2G System | |
|---|---|
| Frequency Band | GSM: 850/900/1800/1900 MHz |
| GPRS Connectivity | GPRS class 12/10; GPRS station class B |
| 3G System | |
|---|---|
| Data Transmission Rate | WCDMA / HSPA+; Download: Max. 14.4Mbps; Upload: Max 5.76Mbps |
| Frequency Band | WCDMA 850/900/1900/2100 MHz |
| I/O Expansion | |
|---|---|
| I/O Type | XV-board |
| Remote Module Support | M-7000/DL/IR Series Module Modbus RTU Slave Module Modbus TCP Slave Module |
| Power Meter | PM Series Modbus meter |
| COM Ports | |
|---|---|
| Ports | COM 1: Reserved COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max. COM 3: RS-485 (Data+, Data-), non-isolated, Speed: 115200 bps max. COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Ethernet | |
|---|---|
| Ports | RJ-45 x 1, 10/100/1000 Based-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| Power | |
|---|---|
| Input Range | 12 ~ 48 VDC |
| Consumption | 6.5 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 117 x 126 x 58 (W x L x H) |
| Installation | DIN-Rail Mounting/Wall Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Thông tin mua hàng
| PMC-5231M-3GWA CR | IIoT Power Meter Concentrator (Support 3G Communication) (Metal Case) (RoHS) |
