The PMC Data Server is a Database utility developed by ICP DAS. It is designed for connections to the ICP DAS PMC/PMD concentrators to read the power data measured by the power meters, and import the power data into the Database system for further statistics and analysis, so that enables a complete power management solution.
The ICP DAS PMMS (Power Management and Monitoring Solution) consists of three parts: ICP DAS PMC Data Server, ICP DAS PMC/PMD concentrator and ICP DAS power meter. The PMC/PMD is used for connections to ICP DAS PM-3133/PM-311x/PM-3033/PM-4324(-MTCP) power meters to read power data of the devices measured by the power meters by RS-485 (or Ethernet) interface, and save these power data to the PMC/PMD. When PMC Data Server is connected to these PMC/PMD concentrators by Ethernet, the PMC/PMD concentrators will automatically send the power data files at pre-defined scheduled time to the PMC Data Server through the FTP protocol, then PMC Data Server will receive these power data logger files and import the content of these files into the Database system for further operations.
By using PMC Data Server to build a power management system, during the whole process of system development, no programming is required; by a few settings of the connection parameters for Database; the user could quickly convert the power data of the devices into Database system. The ICP DAS PMC Data Server, PMC/PMD concentrator and Power Meters is an easy-to-use and easy-to-build solution for power management that makes more efficient energy usage.

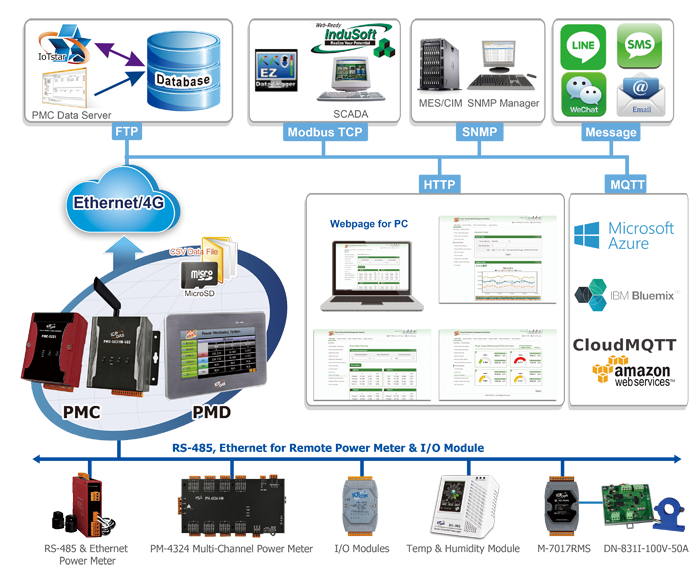

The system architecture of ICP DAS PMMS solution is as below.

Features

• Connect to up to 5 PMC/PMD concentrators through Ethernet interface to receive the power data logger files (in CSV format) that are sent by PMC/PMD concentrators.
• Support Database import function to import the content of CSV file to the MS SQL, MS Access, MySQL(MariaDB) or Oracle Database system.

Currently the PMC Data Server support ICP DAS PMC/PMD concentrator. This document is intended to give a full-range instruction of PMC Data Server. For detailed operations and setting of PMC/PMD concentrator, please refer to the user manual of PMC/PMD concentrator.
