Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ chuyển đổi Profibus sang Quang (Dual Fiber, Single Mode, ST, 1310 nm, 10 KM) ICP DAS PROFI-2542 CR
Features
Introduction

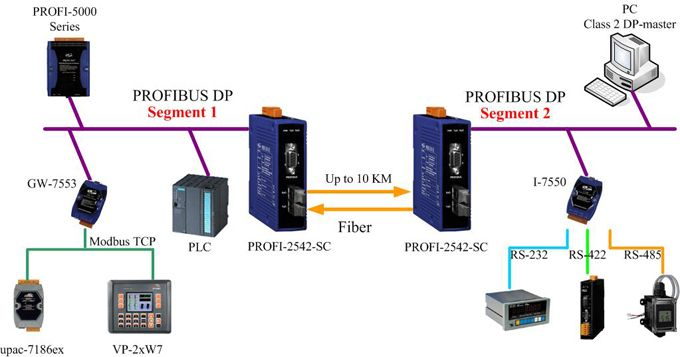

Fiber optic transmission medium is a good material to protect data transmission from EMI/RFI interference and has been used in harsh environment extensively. On the other hand, PROFIBUS is famous in industrial application. In order to solve the problem between different transmission medium, PROFI-2542-SC is specially designed for converting PROFIBUS signal to single mode fiber optic cables. The fiber length between two PROFI-2542-SCs can be up to 10km. PROFI-2542-SC is the economic solution for applications which require protecting the data transmission from electrical exposure, surges, lightning or chemical corrosion.
Applications
• Industrial Automation
• Factory Automation
• Process Automation
• Etc…
Specifications
| LED Indicators | |
|---|---|
| Status | PWR LED, TxD LED, RxD LED |
| Fiber | |
|---|---|
| Fiber Cable | 9 / 125 μm recommended |
| Wavelength | 1310 nm |
| PROFIBUS | |
|---|---|
| Transceiver | ADI ADM2486 |
| Baud Rate | 9.6 k, 19.2 k, 45.45 k, 93.75 k, 187.5 k, 500 k, 1.5 M, 3 M, 6 M, 12 M set by DIP switch |
| Isolation | 3000 VDC for DC-to-DC, 2500 Vrms for bus-to-logic |
| Power | |
|---|---|
| Consumption | 1 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33.0 x 126.8 x 104.5 (W x L x H) |
| Installation | DIN-Rail |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75℃ |
| Storage Temperature | -30 ~ +85 ℃ |
| Humidity | 5 ~ 95% RH, Non-condensing |
Download
Ordering Information
| PROFI-2542 CR | PROFIBUS to Single-mode Fiber Converter (ST type) (RoHS) |
