NB-IoT Remote Terminal Unit with GPS (Asia Only)

Gọi +84 904251826 để được trợ giúp

Modem NB-IoT RS-232/485/Ethernet + GPS ICP DAS RTU-540P-NB CR

Features

  • Support LTE NB-IoT B1/B3/B5/B8/B20/B28.
  • Support Modbus RTU protocol to connect to Max 3 Modbus RTU devices via RS-485 port.
  • Support MQTT.
  • Support micro SD Card.
  • Support GPS function.
  • Built-in Watch-dog Function.
  • Power Reverse Polarity Protection.
  • Support 3.7V Li-ion Battery backup.
  • Power supply +10 VDC ~ +30 VDC.

Introduction

RTU-540P-NB is is an intelligent Active LTE NB-IoT Remote Terminal Unit with GPS. Within the high performance 32 bit CPU, RTU-540P-NB is suit for the hard industrial environment. When connecting with NB-DA Server or MQTT Broker, the user can also control the devices which connected to RTU-540P-NB from the remote control center. It features LTE NB-IoT module, 6 digital inputs, 2 digital outputs, 1 analog input, 1 RS-232, 1 RS-485 and SD interface. It can be used in M2M application fields to transfer the local I/O, GPS and Modbus device's data via LTE NB-IoT by the defined period or DI/AI triggers. The local I/O and GPS data can also be stored in the SD card to become a remote data logger. It also supports Li-ion battery as another power source when the main power is failed temporarily. Therefore, RTU-540P-NB is an ideal solution for environmental monitoring, remote device management and vehicle monitoring system for M2M applications.

Application

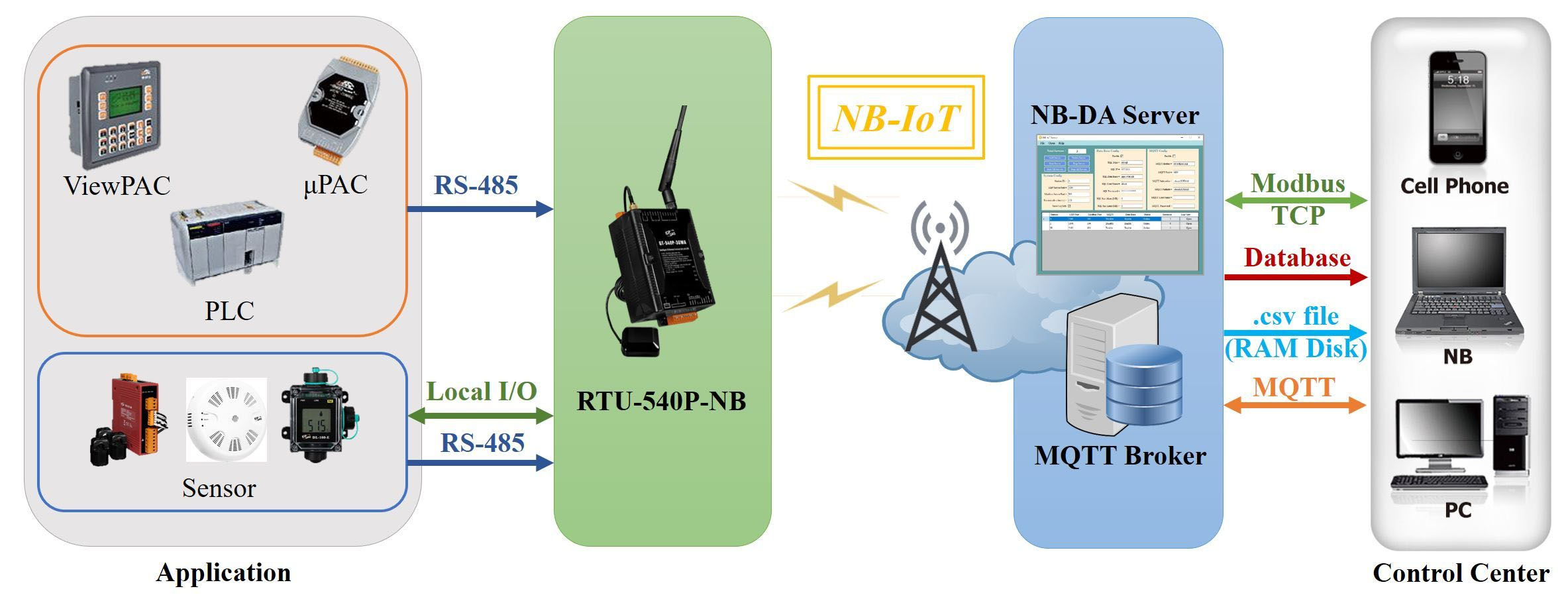

NB-IoT Gateway:

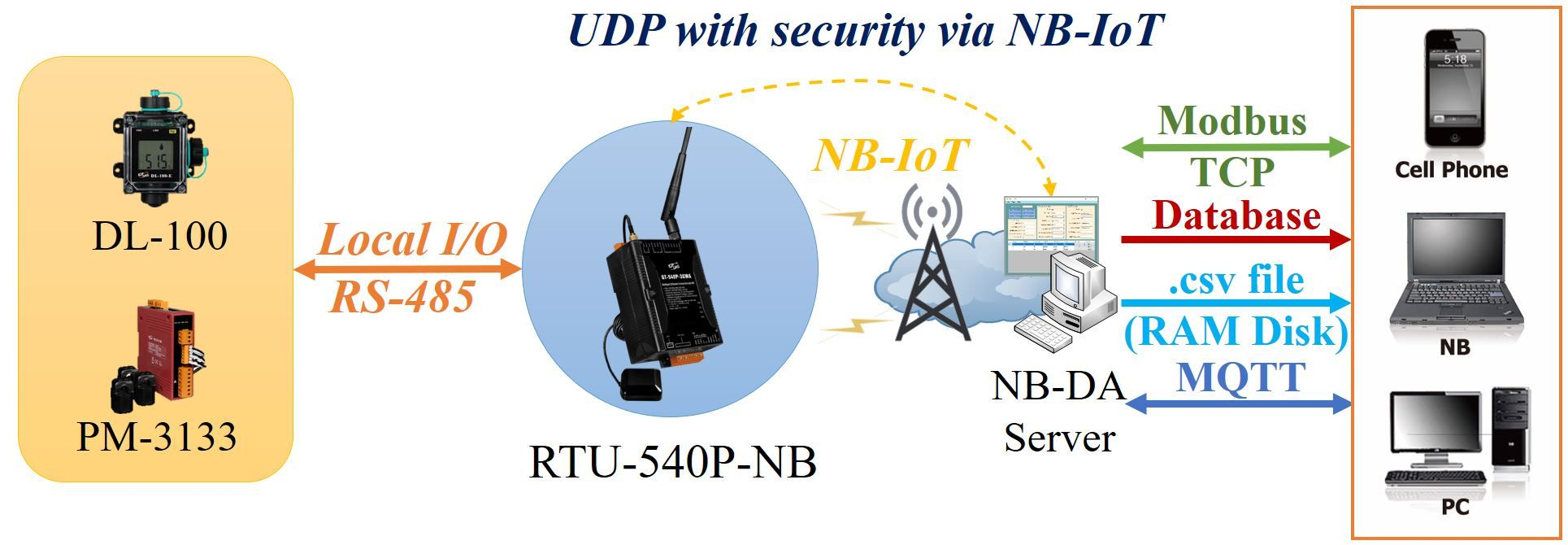

Data Collection and Remote Control (with NB-DA Server):

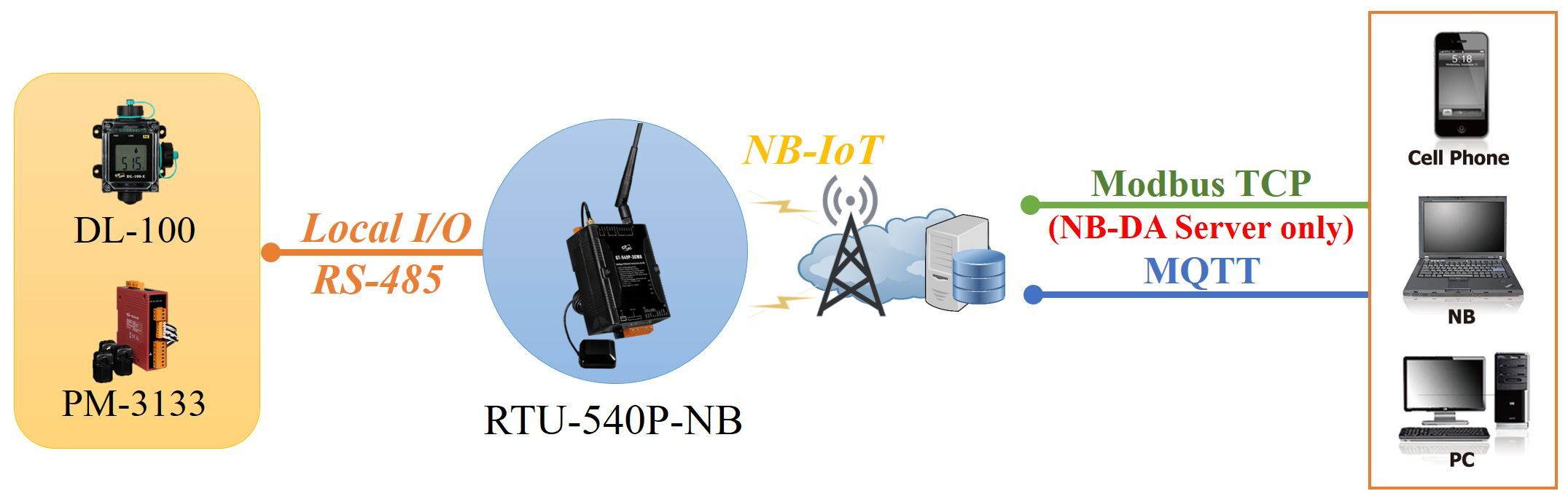

Data Collection and Remote Control (with MQTT Broker):

Specification

Software
Service NB-IoT Gateway



CPU Module
CPU ARM Microprocessor
Watchdog Timer Yes



LED Indicators
Status 1 x EXT
1 x NB
1 x STA
1 x GPS



4G System
Data Transmission NB-IoT
Downlink transfer: Max. 34 Kbps; Uplink transfer: Max. 66 Kbps
Frequency Band LTE NB-IoT: B1/B3/B5/B8/B20/B28



GPS
Acquisition Time Hot start (Open Sky) = 2 s(typical)
Cold start (Open Sky) = 36 s(typical)
Protocol GPRMC format (NMEA 0183 version 3.01)
Sensitivity Tracking = up to -159 dBm (with external LNA)
Cold start = up to -146 dBm (with external LNA)
Support Channels 32



Analog Input
Channels 1
Type Current
Range 0 ~ 20 mA
Resolution 12 bit



Digital Input
Channels 6
Type Sink or Source, Isolated channel with common power or ground
Wet Contact, ON Voltage Level +3.5 ~ 30 VDC
Wet Contact, OFF Voltage Level +1V max.
Isolation 3750Vrms



Digital Output
Channels 2
Type Open-Collector (NPN) (100mA@30VDC)
Load Voltage +30 V max
Max. Load Current 100 mA max
Isolation 3750Vrms



COM Ports
Ports 1 x RS-232(Use for device configuration and debug)
1 x RS-485 (Use for communication with other devices)



Environmental
Operating Temperature -25 ℃ ~ +75 ℃
Storage Temperature -30 ℃ ~ +80 ℃
Humidity 5~95% RH, non-condensing

Download

Data Sheet

Documents

Ordering information

RTU-540P-NB CR  NB-IoT Remote Terminal Unit with GPS (RoHS) (Asia Only)
