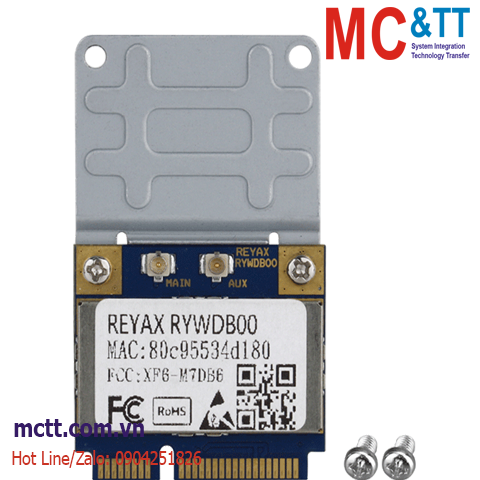

Card Wifi Mini Pcie 802.11 a/b/g/n ICP DAS RYWDB00 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Wi-Fi wireless expansion card (Asia Only)

THÔNG TIN SẢN PHẨM

Feature

Compliant to single-spatial stream IEEE 802.11 a/b/g/n with dual band (2.4 and 5 GHz) support
Support for 20 MHz and 40 MHz channel bandwidths
Transmit power up to +18 dBm with integrated PA
Receive sensitivity as low as -96.5 dBm

Introduction

RYWDB00 is a wireless network expansion card that provides a comprehensive multi-protocol wireless connectivity solution, including 802.11 a/b/g/n (2.4 GHz and 5 GHz), and supports mini PCIe slot (signal type USB2.0 HS).

Application

Specifications

Wi-Fi
Transmission Distance (LoS)	50 meters (LOS)
Standard	IEEE 802.11a/b/g/n
Encryption	Open/WPA/WPA2
Data Transmission Rate	802.11b: 1, 2, 5.5, 11 Mbps 802.11g/a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n: MCS0 to MCS7
Client	Max. 16 Clients (AP mode)
Channels	2.4GHz: 1~13 5 GHz: 36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132,136,140,149,153,157,161,165

Power
Input Range	+3.1 VDC ~ +3.5 VDC
Consumption	1.5W ( 0.45 A @ 3.3 VDC)

Mechanical
Dimensions (mm)	30.0 x 26.8 x 3.0 (W x L x H)

Environment
Operating Temperature	-40 ~ +85 °C

Download

Datasheet

Documents

Ordering Information

RYWDB00 CR

Wi-Fi wireless expansion card (RoHS) (Asia Only)
