Features

• Cost-effective for lighting control
• Power Relay Outputs
• Isolated AC Digital Input
• -40°C ~ +80°C Temperature Detector
• Support DCON and Modbus RTU Protocol
• 7 Kinds DI DO coordinated functions

Introduction

The SC-6104-W5 is an easy-to-use fan control module that requires no specialist skills to install and operate, and no software is needed in order to control the DO channels.

The SC-6104-W5 provides 1 channel for digital input (photo couple isolation) and 4 channels for relay output. All of the 4 output channels are form C type relay, while the input channel is based on a sink-type using a wire connection. The input channel can directly control a 4-channel relay ON and OFF sequence without requiring a remote host controller. And the SC-6104-W5 support 7 kinds coordinated function for users select. In addition to there is one channel temperature sensor can detect -40℃ ~ +80℃ and it can be read by DCON and Modbus RTU communication protocol to control fan control unit. SC-6104-W5 has ±4 kV ESD protection for each terminal and 5000 Vrms intra-module isolation for DI. And the Shell is using fireproof materials. These high protection designed allows users more at ease.

When required, communication with the SC-6104-W5 is programmable based on the DCON and Modbus RTU protocol, and an added benefit is that different addresses can be set for DCON and Modbus RTU communication via hardware configuration.

Warning
Do not use the SC-6104-W5 to connect to any device where the loading is greater than 550 W (5 A, 110 V) per channel, as this may cause the module to malfunction.
ICP DAS cannot be held responsible for any damage or injuries that may result from inappropriate usage and any such usage may cause your warranty to be voided.

Application

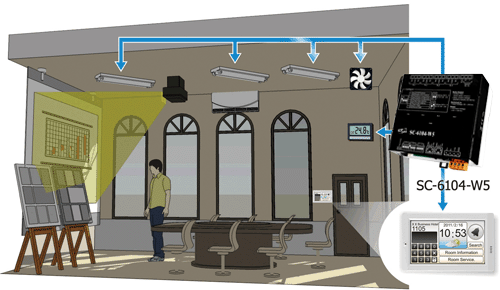

Seamless Integration with BMS

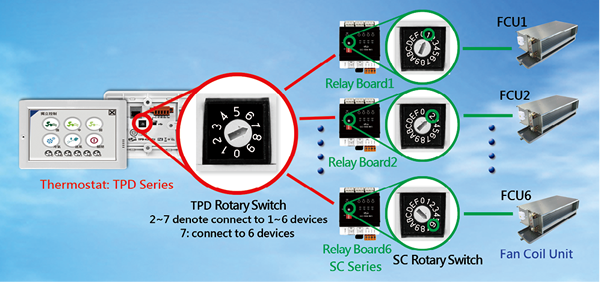

FCU (Fan Coil Unit) is widely used in commercial building for air conditioning system, with relay board and thermostat, it allows easy control for maintenance of comfortable indoor temperature. To maintain user-defined indoor temperature, the relay board is used for controlling the air flow of FCU, and the flow rate of the two-way valve or three-way valve for the chilled-water and hot-water in FCU. And the thermostat provides users interface for easy set-up of the temperature and air flow.


The ICP DAS SC series control module in FCU works not only as a relay board, it also provides functions such as: assigning network address, switches testing, delay of power output. And with the TPD series color TouchPAD (works as thermostat, preloaded with intelligent control procedures), in addition to temperature setting function, it can also perform various functions such as: schedule setting, temperature compensation, remote control, and remote schedule setting, etc. The users can experience a more visual upgrade interface with intelligent features that mechanical or monochrome LED HMI cannot achieve.
