Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ giao diện 2 kênh cảm biến đo lực Strain Gauge kết nối SI-ETH Lorenz SI-ETH
| Type: | SI-ETH |
|---|---|

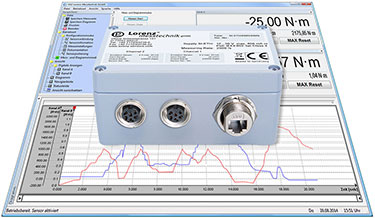

| Technical Details: | 2 Channel Ethernet-Sensor-Interface SI-ETH with freely available Configuration and Evaluation Software VS2. The Evaluation and Excitation of the connected Sensor occurs via the Ethernet Interface of the PC. Sensors with Output Signals of mV/V, ±5V, ±10V or 0/4 … 20 mA are suitable for the Connection. Through the Measuring Rate of up to 2500/s, high-dynamic Measurements are realizable. This Measuring Amplifier is also very suitable for heavy Industry Applications by its robust Aluminum Die Cast Housing. Software and Driver Download |
| Suitable Connection Cable (PDF Datasheet): |
Connection cable for passive sensors, 3 m, with 7-pin female cable connector and 6-pin male cable connector |
| PDF Datasheet: | 080758c.pdf |
| PDF Operation Manual: | SI-ETH: 090342b.pdf VS2: 090313g.pdf |
