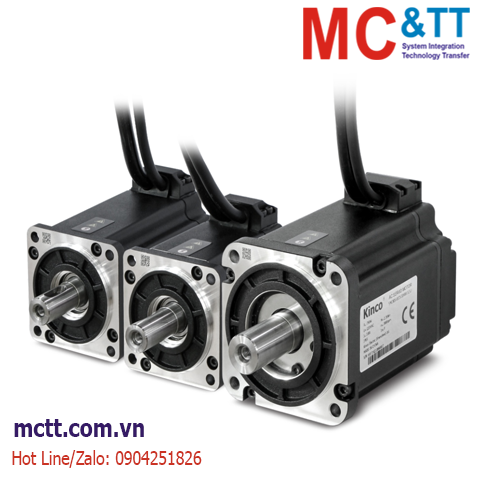

Động cơ AC Servo 3KW, 2000 rpm without brake Kinco SMC130D-0300-20VAK-5HSP

Thương hiệu: Kinco | Tình trạng: Còn hàng
Liên hệ

Động cơ AC Servo 200W~3KW Kinco SMC-G2 series

Gọi +84 904251826 để được trợ giúp

Động cơ AC Servo 3KW, 2000 rpm without brake Kinco SMC130D-0300-20VAK-5HSP

Tính năng

  • New electromagnĐộng cơ AC Servo 3KW, 2000 rpm without brake Kinco SMC130D-0300-20VAK-5HSPetic design

Adopting 12-slot and 10-pole design, with small slot torque and low torque pulsation, which is conducive to reducing the vibration during the operation of the motor and making the torque output more smooth

  • New structure and short fuselage

The redesign of the fuselage structure shortens the length of the fuselage, which can save more installation space and reduce the size of the equipment for customers' equipment

  • Insulation class F

The motor in the industry is at the highest insulation level, which can maintain high reliability and stability in high temperature extreme environment

  • Energy efficiency class: 2

Thông số kỹ thuật

Series Model Rated power
Pn(W)
Rated torqueTn
(Nm)
Rated speed
Nn(rpm)
Rated current
In(A)
Shaft diameter (mm) Length (mm)
□=A □=B (brake motor)
60 Flange SMC60S-0020-30M■K-5LSU 200 0.64 3000 1.5 14 75±1.5 112±1.5
SMC60S-0020-30Q■K-5LSU
SMC60S-0020-30□■K-5LSU 86.5±1.5 122±1.5
SMC60S-0040-30M■K-5LSU 400 1.27 2.9 97±1.5 134.5±1.5
SMC60S-0040-30Q■K-5LSU
SMC60S-0040-30□■K-5LSU 108.5±1.5 144.5±1.5
80 Flange SMC80S-0075-30M■K-5LSU 750 2.39 4 19 106.7±1.5 141±1.5
SMC80S-0075-30Q■K-5LSU
SMC80S-0075-30□■K-5LSU 118.2±1.5 150±1.5
130 Flange SMC130D-0100-20□■K-5LSP 1KW 4.78 2000 4.5 (ref.) 22 143.5±1.5 203.5±1.5
SMC130D-0100-10MAK-5LSP 1KW 9.55 1000 4.6 (ref.) 171±1.5 -
SMC130D-0150-20□■K-5LSP 1.5KW 7.16 2000 7.7 (ref.) 163.5±1.5 223.5±1.5
SMC130D-0200-20□■K-5LSP 2KW 9.55 9.5 (ref.) 179.5±1.5 239.5±1.5
SMC130D-0150-20□■K-5HSP 1.5KW 7.16 3.85 (ref.) 163.5±1.5 223.5±1.5
SMC130D-0150-10MAK-5HSP 1.5KW 14.33 1000 3.8 (ref.) 203.5±1.5 -
SMC130D-0200-20□■K-5HSP 2KW 9.55 2000 4.75 (ref.) 179.5±1.5 239.5±1.5
SMC130D-0300-20□■K-5HSP 3KW 14.33 7 (ref.) 213.5±1.5 273.5±1.5

Note: □ = V :Singleturn communication type optical encoder
                   Y : Multiturn communication type optical absolute encoder
                   M :Singleturn communication type magnetoelectric encoder
                   Q :Multiturn communication type magnetoelectric absolute encoder

■ = A : Motor without brake
 B : Motor with brake

Thông tin đặt hàng

Tài liệu

KincoCatalog_FD5_Servo_K1E56_23
