Bộ chuyển đổi RS-232/RS-422/RS-485 sang Bluetooth ICP DAS tBLE-720 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

RS-232/422/485 to Bluetooth LE Converter

THÔNG TIN SẢN PHẨM

Tính năng

Frequency: ISM 2.4 GHz
Standard: Bluetooth 4.0
Interface: RS-232, RS-422 and RS-485
Baud Rate :9600~115200 bps
Supports multiple connections –Max slave is 3
Supports two types of communication - advertisements and connection
Provide AT command to setup the module
RF Link and status LED indicators for troubleshooting
Easy-to-use switch for baud rate and Bluetooth LE role setting
No Antenna required
GUI Configuration Software (Windows Version)
Operating Temperatures, -25 °C ~ +75 °C

Giới thiệu

The tBLE-720 module is designed for serial network like RS-232, RS-422 or RS-485. It allow RS-232, RS-422 or RS-485 interface to be converted to Bluetooth low energy (LE) piconet network. User can choose tBLE-720 or mobile device (e.g. smart phone, tablet or notebook) to do the connection, which provides Bluetooth LE data conversion between two devices. The tBLE-720 has two transmission modes – advertisement and connection mode. Users not only can send advertising packet in the advertisement mode but also can send connection packet in the connection mode. It supports different roles in each transmission mode. One is broadcaster and observer in advertisement mode, and the others is central and peripheral in connection mode. User can use dip switch to change transmission mode and role. The tBLE-720 supports a lot of useful AT commands. They can set many parameters such as connection parameters, broadcast parameters. The tBLE-720 also provides slave security mechanism. The mechanism can obstruct illegal master, and the slave will ignore connection request from illegal master. In addition, ICPDAS provides software utility to easily configure and test the tBLE-720 modules via RS-232, RS-422 or RS-485.

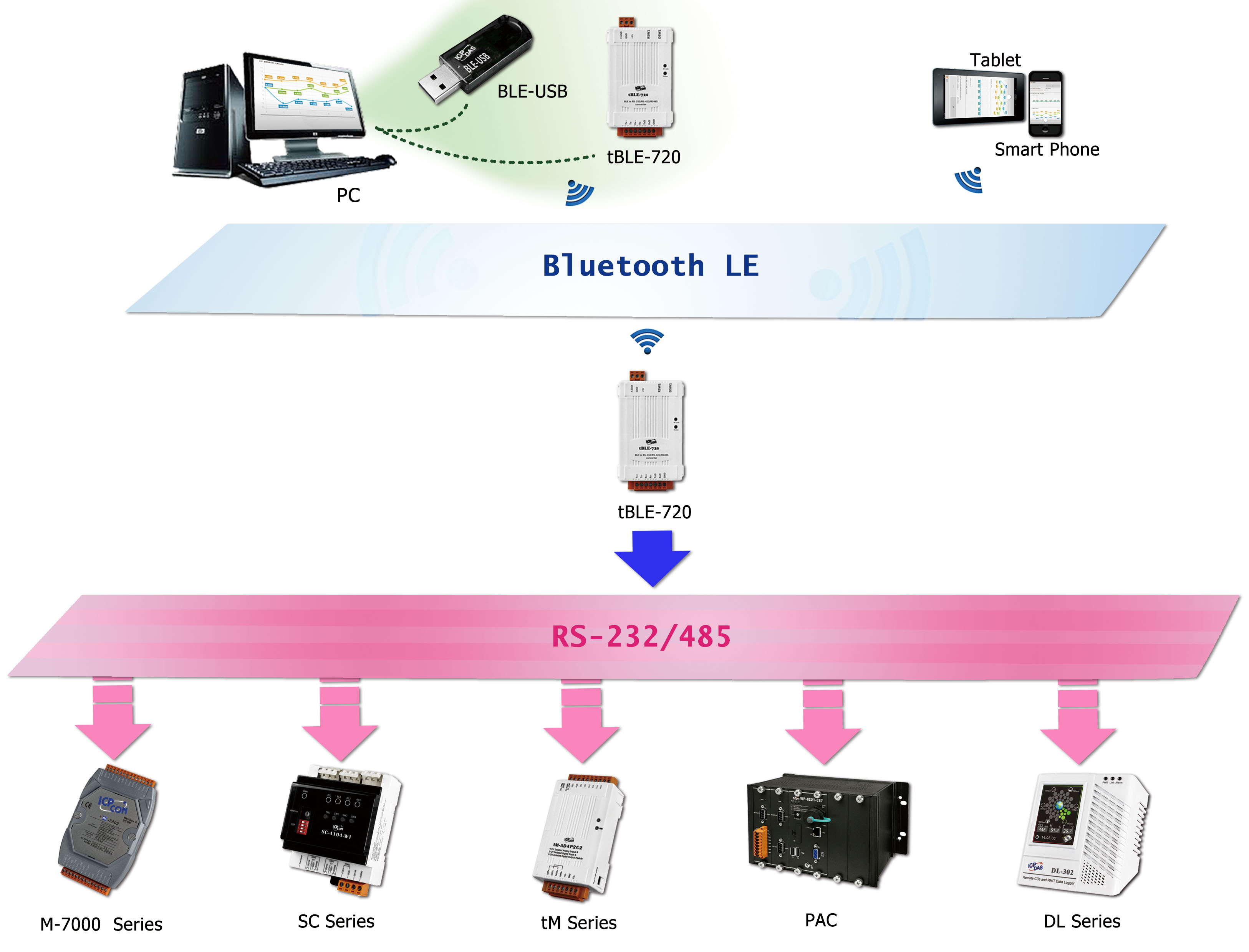

Ứng dụng

Thông số kỹ thuật

LED Indicators
Status	1 x Status 1 x RF link

RF
Antenna	1.0 dBi chip antenna
Data Transmission Rate	85 kbps
Frequency Band	2.4 GHz ISM (2402 ~ 2480 MHz)
RX Sensitivity	-94 dBm
Standard	Bluetooth 4.0
Tx Power	-20 ~ 4 dBm
Max. Slaves	3
Transmission Distance (LoS)	20 m

Bluetooth LE
Connection Role	Connection Mode: Central/Peripheral Broadcast Mode: Observer/Broadcaster
Standard	Bluetooth 4.0

COM Ports
Ports	1 x RS-232 1 x RS-422 1 x RS-485
Baud Rate	9600~115200 bps
Data Format	N, 8, 1

HMI
DIP Switch	Dip switch: Role /Transmission mode Rotary switch: Baud rate

Power
Input Range	+10 ~ +30 VDC
Consumption	1W

Mechanical
Casing	Plastic
Dimensions (mm)	52 x 95 x 27 (W x L x H)
Installation	DIN-Rail

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-25 ~ +75 °C
Humidity	5 ~ 95% RH, Non-condensing

Download

Data Sheet
