Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ chuyển đổi RS-232 sang RS-485 ICP DAS tM-7520U-CA CR
Feature
Introduction
Most industrial computer systems provide standard RS-232 serial ports with limited transmission speed, range, and networking capabilities. The RS-485 standards overcome these limitations by using differential voltage lines for data and control signals. The tM-7520U transparently converts RS-232 signals into isolated RS-485 signal with no need to change any hardware or software. This lets you easily build an industrial grade, long-distance communication system using standard PC hardware. The module provides 2500 VDC of optical isolation allowing you to separate and protect critical segments of the system from the rest of the RS-485 network.
The tM-7520U provides 2 modes of baud rate setting, one is Self-Tuner mode and the other is Fixed baud rate mode. The Self-Tuner mode can support Multiple Baud Rate and Multiple Data Format. The Self-Tuner design is exactly the same as I-7520 series. The Fixed baud rate mode offers a better quality for data transmission over long or lossy lines or electrically noisy environments.
Application
• Building Automation
• Factory Automation
• Machine Automation
• Remote Maintenance
• Remote Diagnosis
• Testing Equipment
Specifications
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | Yes, Contact for Each Terminal |
| LED Indicators | |
|---|---|
| Status | 1 x Power 1 x TxD/RxD |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 Input (Master) 4 x RS-485 Output (Slave) |
| Baud Rate | 300 ~ 115200 bps for Self-Tuner 1200 ~ 115200 bps for Fixed baud rate setting |
| Bias Resistor | Yes, 1 KΩ |
| Node Address | 254 (max.) |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC (Non-isolated) |
| Consumption | 0.5 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 52 x 92 x 27 (W x L x H) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +75 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering Information

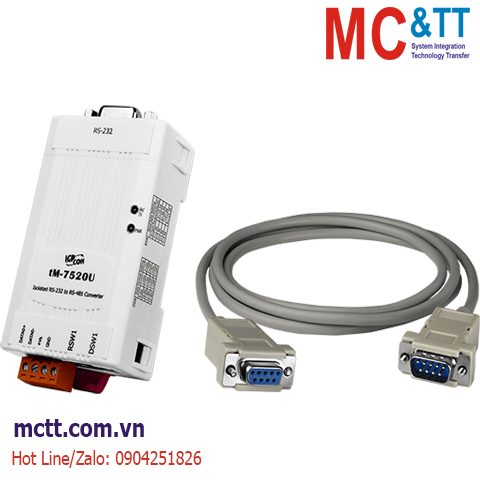

| tM-7520U-CA CR | Tiny Isolated RS-232 to RS-485 Converter with CA-0915 Cable (RoHS) |
