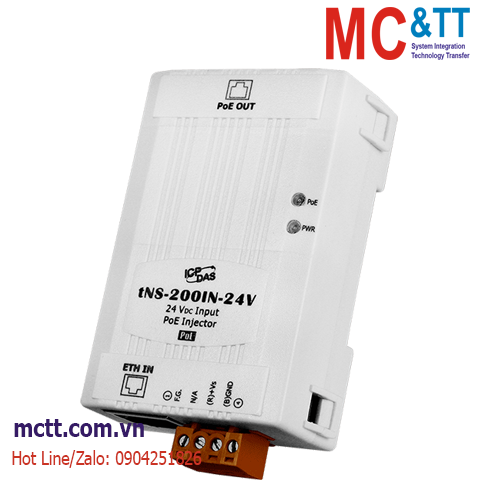

Bộ Injector PoE công nghiệp 24VDC 15W ICP DAS tNS-200IN-24V CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

10/100 Base-TX PoE injector, +24 VDC input, PoE 15.4W

THÔNG TIN SẢN PHẨM

Feature

• Auto-detection of PD (powered devices)
• Over-temperature, over-current and over/under-voltage detection
• No user settings
• Power Sourcing Equipment (PSE) operation
• tNS-200IN-24V supplies up to 15.4W
• Tiny packaging fi ts on your DIN-Rail Mounting
• +18 ~ +32 VDC power input

Introduction

The tNS-200IN-24V Single Port PoE Injector supports PoE powered devices in industrial environments. The tNS-200IN-24V delivers both data and power over a single standard Ethernet cable to a PoE Powered Device designed to receive both Data and Power through its RJ-45 port connector. The tNS-200IN-24V is designed with +24 VDC to +48 VDC boost for PoE application where +48 VDC power supply is not available.

Application

Specifications

LED Indicators
Status	Power, Power Device is detected

Ethernet
Ports	1 x RJ-45 in, 1 x PoE out, 10/100Base-T(X)

PoE Technology
PoE Compliance	100% IEEE 802.3af compliant
PoE Power	Up to 15.4 W
PoE Operation	Automatic detection and power management
PoE Pin Assignments	V+ (Pin 4,5), V- (Pin 7,8)
PoE Disconnect Mode	DC disconnect
PoE Voltage	+48 VDC depending on power input

Power
Reverse Polarity Protection	Yes
Input Range	+18 ~ +32 VDC
Consumption	0.8 A@ 24 VDC with PD full loading

Mechanical
Casing	Plastic
Dimensions (mm)	52 x 86 x 27 (W x L x H)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-40 °C ~ +75 °C
Storage Temperature	-40 °C ~ +85 °C
Humidity	10% ~ 90% RH, non-condensing

Download

Datasheet

Documents

Ordering Information

tNS-200IN-24V CR

10/100 Base-TX, PoE injector for 1 PoE port (uses spare pairs), +24 VDC input, PoE 15.4W (RoHS)
