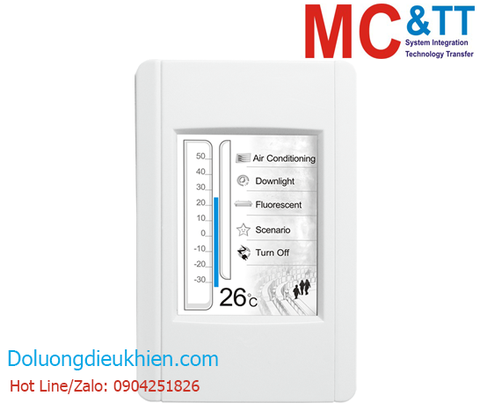

Màn hình cảm ứng HMI 2.8 inch Ethernet Modbus TCP ICP DAS TPD-283-H CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

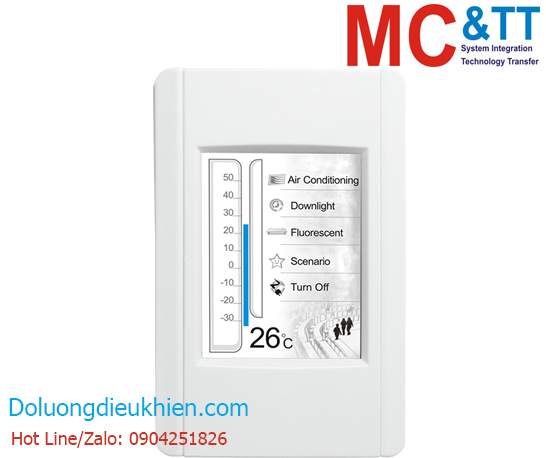

2.8" Touch HMI Device with Ethernet (PoE)

THÔNG TIN SẢN PHẨM

Features

Excellent C/P ratio (cost/performance)
High-resolution color touch screen
PoE (Power over Ethernet)
GUI design
Free HMIWorks development tool
Suppots C programming language and Ladder Designer
Supports the custom communication protocol (C language)
Modbus TCP protocol

Introduction

TPD 2.8 inch H series of tiny touch HMI and designed for building and home automation. TPD 2.8 inch series is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.

For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD series devices when using Ladder Designer.

Specifications

Main Unit
CPU	32-bit RISC CPU

Display
Type	LCD 2.8 TFT (Resolution 240 x 320 x 16), defective pixels <= 3
Backlight Life	20,000 hours
Brightness	160 cd/m2
Touch Panel	Yes

HMI
Buzzer	Yes
Rotary Switch	Yes

Ethernet
Ports	RJ-45 x 1, 10/100 Base-TX

Power
Consumption	1.5 W
Powered from PoE	IEEE 802.3af, Class1 (48 V)

Mechanical
Dimensions (mm)	119 mm x 76 mm x 32 mm
Installation	Wall Mounting
Ingress Protection Rating	Front Panel: IP40

Environmental
Operating Temperature	-20 ~ +70°C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

TPD-283-H CR

2.8" Touch HMI Device with Ethernet (PoE) (RoHS)
