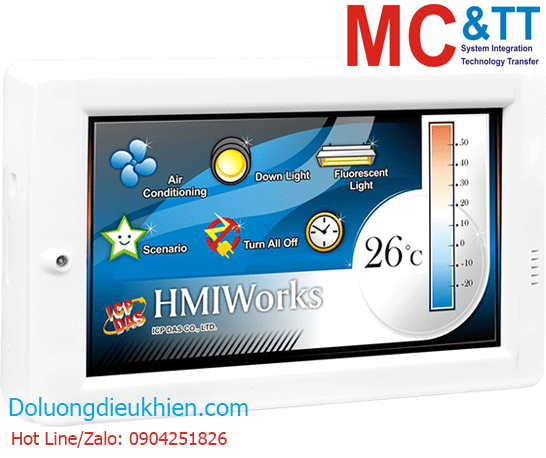

Màn hình cảm ứng HMI 4.3 inch RS-485/Ethernet Modbus RTU/TCP ICP DAS TPD-433-H-EU CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

4.3" Touch HMI Device with 1 x RS-485, Ethernet (PoE), Suitable for the European 86 x 86 mm Outlet Box

THÔNG TIN SẢN PHẨM

Features

Excellent C/P ratio (cost/performance)
High-resolution color touch screen
PoE (Power over Ethernet)
RS-485 (including Self-Tuner)
RTC (Real Time Clock)
GUI design
Free HMIWorks development tool
Suppots C programming language and Ladder Designer
Supports the custom communication protocol (C language)
Modbus TCP/RTU protocol

Introduction

TPD 4.3 inch series is a tiny touch HMI with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control pads.

For PLC users, HMIWorks provides Ladder Designer, and for IT users, C language environment is provided. Especially, it only takes no more than 30 minutes to learn how to create an application program of TPD-series devices when using Ladder Designer. With all the features provided, TPD-series touch HMI devices must be the most cost effective HMI device ever been in the market.

Specification

Main Unit
CPU	32-bit RISC CPU
Storage	16 MB SDRAM/16 MB Flash
Real Time Clock	Yes

Display
Type	LCD 4.3” TFT(Resolution 480 X 272 X 16), defective pixels <= 3
Backlight Life	20,000 hours
Brightness	400 cd/m2
Touch Panel	Yes

LED Indicators
Status	1 LED

HMI
Buzzer	Yes
Rotary Switch	Yes
Reset Button	Yes

Ethernet
Ports	RJ-45 x 1, 10/100 Base-TX

USB
Specification	USB 1.1 Client (Firmware updates only)
Connector	Mini-B

Power
Consumption	2.5 W
Powered from PoE	IEEE 802.3af, Class1 (48 V)
Powered from Terminal Block	+12 ~ 48 VDC

Mechanical
Dimensions (mm)	126 mm x 92 mm x 29 mm
Installation	Wall Mounting (Suitable for the European 86mm x 86mm outlet box)

Environmental
Operating Temperature	-20 ~ +50°C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

TPD-433-H-EU CR

4.3" Touch HMI Device with 1 x RS-485, Ethernet (PoE), RTC and USB Download Port, Suitable for the European 86 x 86 mm Outlet Box (RoHS)
