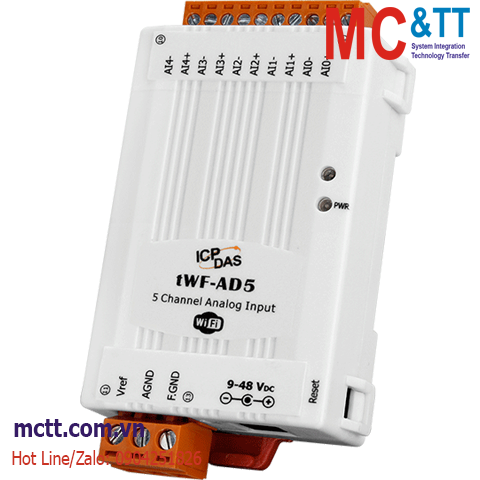

Module Wi-Fi Modbus TCP 5 kênh AI ICP DAS tWF-AD5 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Tiny Wi-Fi I/O Module with 5-ch AI (Asia Only)

THÔNG TIN SẢN PHẨM

Feature

• Wi-Fi communication remote I/O controller.
• Both Access Point(AP) & Station(STA) mode support
• PC utility, Android APP, Web browser support(HTML)
• MODBUS TCP support
• Isolation differential voltage input
• 14/12 bit resolution in Normal/Fast mode
• Wide power supply range: 9 ~ 48 VDC
• Cost-effective

Introduction

The tWF-AD5 module have 5 channels differential analog input as WLAN connection complies with the IEEE802.11b/g/n standards. With the popularity of 802.11 network infrastructure, the tWF-AD5 make an easy way to incorporate wireless connectivity into monitoring and control systems. They also support Modbus TCP protocol and the network encryption configuration, which makes perfect integration to SCADA software or HMI Modbus APP and offer easy and safe access for users from anytime and anywhere.

Application

• Building Automation
• Security Automation
• Machine Automation
• Factory Automation
• Remote Diagnosis
• Remote Maintenance
• Testing Equipment

Specifications

Isolation
Intra-module Isolation	3000 VDC

EMS Protection
EFT (IEC 61000-4-4)	Yes ±4 kV for Power
ESD (IEC 61000-4-2)	±4 kV Contact for Each Terminal ±8 kV Air for Random Point

LED Indicators
Status	1 x Power 1 x Status

Wi-Fi
Standard	IEEE 802.11 b/g/n
Mode	Access Point (Limited AP) & Station (STA)
Encryption	Open,WEP, WPA2
Data Transmission Rate	Data Rate, 2.4 GHz

Analog Input
Channels	5
Type	Voltage: ±1.25 V, ±2.5 V, ±5 V, ±10 V
Resolution	Normal Mode: 14-bit Fast Mode: 12-bit
Accuracy	Normal Mode: +/-0.1% Fast Mode: +/-0.5%

Power
Reverse Polarity Protection	Yes
Input Range	+9 VDC ~ +48 VDC
Consumption	0.84W Max.

Mechanical
Dimensions (mm)	52 x 97 x 27 (W x L x H)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +75 °C
Humidity	10 ~ 95% RH, Non-condensing

Specification Memo

(*): non-RevB version
(**): RevB version

Download

Datasheet

Documents

Ordering Information

tWF-AD5 CR

Tiny Wi-Fi I/O Module with 5-ch AI (RoHS) (Asia Only)
