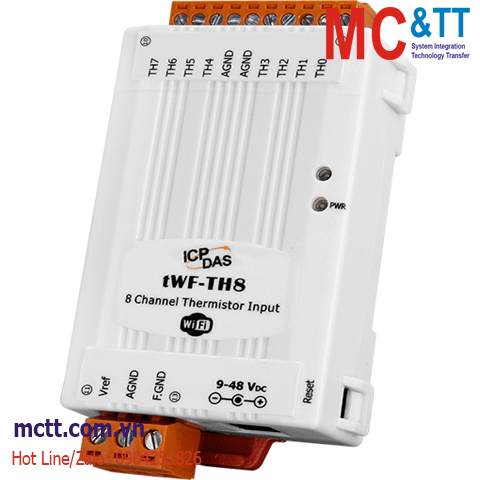

Module Wi-Fi Modbus TCP 8 kênh Thermistor ICP DAS tWF-TH8 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Tiny Wi-Fi I/O Module with 8-ch Thermistor Input (Asia Only)

THÔNG TIN SẢN PHẨM

Feature

• Wi-Fi communication remote I/O controller.
• Both Access Point(AP) & Station(STA) mode support
• PC utility, Android APP, Web browser support(HTML)
• MODBUS TCP support
• Default 13 NTC Thermistor Types
• 8 User-defined NTC Thermistor Types
• 16 bit resolution
• Wide power supply range: 9 ~ 48 VDC
• Cost-effective

Introduction

The tWF-TH8 module have 8 channels Thermistor input as WLAN connection complies with the IEEE802.11b/g/n standards. With the popularity of 802.11 network infrastructure, the tWF-TH8 make an easy way to incorporate wireless connectivity into monitoring and control systems. They also support Modbus TCP protocol and the network encryption configuration, which makes perfect integration to SCADA software or HMI Modbus APP and offer easy and safe access for users from anytime and anywhere.

Application

• Building Automation
• Security Automation
• Machine Automation
• Factory Automation
• Remote Diagnosis
• Remote Maintenance
• Testing Equipment

Specifications

Isolation
Intra-module Isolation	3000 VDC

EMS Protection
EFT (IEC 61000-4-4)	Yes ±4 kV for Power
ESD (IEC 61000-4-2)	±4 kV Contact for Each Terminal ±8 kV Air for Random Point

LED Indicators
Status	1 x Power 1 x Status

Wi-Fi
Standard	IEEE 802.11 b/g/n
Mode	Access Point (Limited AP) & Station (STA)
Encryption	Open,WEP, WPA2
Data Transmission Rate	Data Rate, 2.4 GHz

Analog Input
Channels	8
Type	NTC Thermistor
Resolution	16-bit
Accuracy	+/-1%

Power
Reverse Polarity Protection	Yes
Input Range	+9 VDC ~ +48 VDC
Consumption	0.84W Max.

Mechanical
Dimensions (mm)	52 x 97 x 27 (W x L x H)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +75 °C
Humidity	10 ~ 95% RH, Non-condensing

Specification Memo

(*): non-RevB version
(**): RevB version

Download

Datasheet

Documents

Ordering Information

tWF-TH8 CR

Tiny Wi-Fi I/O Module with 8-ch Thermistor Input (RoHS) (Asia Only)
