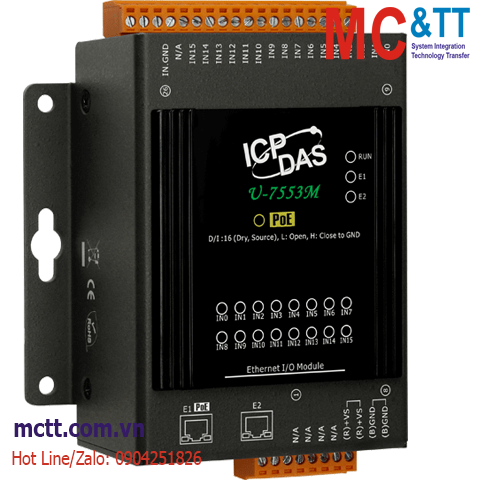

Module Ethernet OPC UA + MQTT 16 kênh đầu vào số DI ICP DAS U-7553M CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

OPC UA I/O Module with 16-channels DI and 2-port Ethernet Switch

THÔNG TIN SẢN PHẨM

Features

• Support OPC UA Server and MQTT Client Protocol
• Support RESTful API via HTTP and HTTPS
• Support to Execute OPC UA, MQTT and RESTful API Simultaneously
• Support Logic Function Rule Setting: IF, THEN, ELSE
• Support Schedule: to Execute the Set Rules at a Specific Time.
• Support Event Log: Record the I/O Change for Device Tracking
• Support IoTstar Cloud Management Software.
• Built-in Web Server to Provide the Web User Interface
• I/O Channels: 16 x DI
• Dual-port Ethernet Switch for Daisy-Chain Topology
• IEEE 802.3af-compliant Power over Ethernet (PoE)

Introduction

U-7553M is a UA I/O module that provides 16 digital input channels. It has a built-in dual-port Ethernet switch to implement daisy-chain topology. The cabling is much easy and can reduce the total cable and switch cost. It follows IEEE 802.3af (Class 2) compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. This feature provides greater ﬂexibility and efficiency to simplify system design, save space, and reduce wirings and power sockets. It provides a Web UI to confi gure/control/monitor the modules, connections, and I/O status via a web browser. It is easy, fast, and no extra APP needed.

In industrial communication, UA I/O provides OPC UA Server, MQTT Client and RESTful API protocols (can execute all communications at the same time.). Users can choose the networking mode according to their cases. And to transmit the values of the built-in I/O channels to the Cloud system or field control system for displaying, analysis or strategy. Support Scaling. Let the analog signal be converted into a more readable value. Support logic function Rule Setting IF, THEN, ELSE, can set up logical condition/action for I/O and virtual point; Provide schedule function to execute the set rules at a specific time; Support RESTful API function, can read/write I/O and virtual point through HTTP or HTTPS.

Applications

Click to view the Introduction of https://mctt.vn/opc-ua-icp-das

Specifications

Software
Protocol	• OPC UA Server • MQTT Client • RESTful API
Function	• Web Interface for Conﬁguration • Scaling • Security • Rule Setting • Schedule • Event Log • IoTstar Setting

CPU Module
CPU	32-bit CPU (400 MHz)
Watchdog Timer	Module, Communication (Programmable)

Isolation
2-way Isolation	I/O: 2500 VDC

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for each terminal ±8 kV Air for random point

LED Indicators
Status	Run, Ethernet, I/O

Digital Input/Counter
Channels	16
Type	Dry Contact
Sink/Source (NPN/PNP)	Source
ON Voltage Level	Close to GND
OFF Voltage Level	Open
Max. Counts	4,294,967,295 (32-bit)
Frequency	100 Hz
Min. Pulse Width	5 ms
Effective Distance	500m (max.)

Ethernet
Ports	2 x RJ-45, 10/100 Base-TX, Swtich Ports
PoE	Yes
LAN bypass	Yes
Security	ID, Password and IP Filter

Power
Reverse Polarity Protection	Yes
Consumption	4.1 W
Powered from PoE	IEEE 802.3af, Class2
Powered from Terminal Block	+12 ~ +48 VDC

Mechanical
Dimensions (mm)	97 x 120 x 47 (W x L x H)
Installation	DIN-Rail mounting

Environment
Operating Temperature	-25 °C ~ +75 °C
Storage Temperature	-30 °C ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

U-7553M CR

OPC UA I/O Module with 16-channels DI and 2-port Ethernet Switch. (RoHS)
