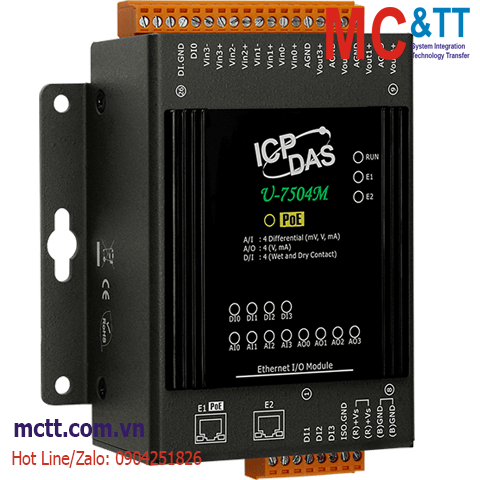

Module Ethernet OPC UA + MQTT 4 kênh DI + 4 kênh AI + 4 kênh AO ICP DAS U-7504M CR
Features
- • Built-in Web Server to Provide the Web User Interface
• Built-in OPC UA Server
• Support MQTT Client Communication Protocol
• Support Scaling
• Built-in I/O Channels (4 x DI, 4 x AI, and 4 x AO)
• 2-port Ethernet Switch for Daisy-Chain Topology
• IEEE 802.3af-compliant Power over Ethernet (PoE)
Introduction
A-7504M is a UA I/O module that provides 4 digital input channels, 4 analog input channels and 4 analog output. It has a built-in two-port Ethernet switch to implement daisy-chain topology. The cabling is much easier and total costs of cable and switch are significantly reduced.
UA-7504M follows IEEE 802.3af compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. This feature provides greater flexibility and efficiency to simplify system design, save space, and reduce wirings and power sockets.
UA I/O provides OPC UA server and MQTT client function in industrial networking communication. Users can choose the networking mode according to their needs and environment, to transmit the values of built-in I/O channels to the cloud IT system or field control system for reading and writing. Support Scaling. Let the analog signal be converted into a more readable value.
Specifications
| Software |
| Protocol |
● OPC UA Server
• OPC Unified Architecture: 1.02
• Core Server Facet
• Data Access Server Facet
• Method Server Facet
• UA-TCP UA-SC UA Binary
• User Authentication: Username/Password, X.509 Certificate
• Security Policy: None, Basic128Rsa15 (Sign, Sign & Encrypt), Basic256 (Sign, Sign & Encrypt)
• Recommend to keep the max. number of sessions within 3 connections.
● MQTT Client
• Connect to the MQTT Broker to read or control the I/O channel value by the publish/subscribe messaging mechanism. (MQTT Ver. 3.1.1; TLS Ver. 1.2) |
| Function |
• Web Interface for Configuration
• Support Scaling |
| CPU Module |
| CPU |
32-bit CPU (400 MHz) |
| Isolation |
| Intra-module Isolation |
2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±2 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each terminal and ±8 kV Air for random point |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| LED Indicators |
| Status |
1 x PoE Power
1 x System Running
1 x Ethernet Link/Act
12 x I/O Channel Status |
| Analog Input |
| Channels |
4 (Differential) |
| Type |
±500 mV, ±1 V, ±5 V, ±10 V
+0 mA ~ +20 mA, ±20 mA, 4 ~ 20 mA
(Jumper Selectable) |
| Resolution |
16-bit |
| Accuracy |
±0.1% |
| Sampling Rate |
10 Samples/Second (Total) |
| Input Impedance |
Voltage: 2 MΩ
Current: 125 Ω |
| Common Mode Rejection |
86 dB Min. |
| Normal Mode Rejection |
100 dB |
| Common Voltage Protection |
±200 VDC |
| Overvoltage Protection |
240 Vrms |
| Overcurrent Protection |
Yes, 50 mA Max. at 110 VDC/VAC Max |
| Individual Channel Configuration |
Yes |
| Channel-to-Channel Isolation |
Yes, 400 VDC |
| Open Wire Detection |
Yes, for 4 ~ 20 mA only |
| Zero Drift |
±20 μV/°C |
| Span Drift |
±25 ppm/°C |
| Analog Output |
| Channels |
4 |
| Type |
+0 VDC ~ +5 VDC, ±5 VDC, +0 VDC ~ +10 VDC,±10 VDC
+0 mA ~ +20 mA, +4 mA ~ +20 mA
(Jumper Selectable) |
| Resolution |
12-bit |
| Accuracy |
±0.1% of FSR |
| Open Wire Detection |
Yes, for 4 ~ 20 mA only |
| Voltage Output Capability |
20 mA @ 10 V |
| Current Load Resistance |
400 Ω |
| Digital Input/Counter |
| Channels |
4 |
| Type |
Dry + Wet Contact |
| Wet Contact, ON Voltage Level |
+1 VDC Max. |
| Wet Contact, OFF Voltage Level |
+3.5 VDC ~ +30 VDC |
| Dry Contact, ON Voltage Level |
Close to GND |
| Dry Contact, OFF Voltage Level |
Open |
| Dry Contact, Effective Distance |
500 M Max. |
| Max. Counts |
16-bit (65535) |
| Frequency |
50 Hz |
| Min. Pulse Width |
10 ms |
| Overvoltage Protection |
+30 VDC |
| Ethernet |
| Ports |
RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators) |
| PoE |
Yes |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
12 ~ 48 VDC |
| Consumption |
5.1 W |
| Powered from PoE |
Yes, IEEE 802.3af, Class 1 |
| Powered from Terminal Block |
Yes, 12 ~ 48 VDC |
| Mechanical |
| Dimensions (mm) |
97 x 120 x 42 (W x L x H) |
| Installation |
Wall Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Data sheet
Documents
Ordering infromation
| UA-7504M CR |
OPC UA I/O Module with 4-ch DI, 4-ch AI, 4-ch AO, and 2-port Ethernet Switch (RoHS) |
