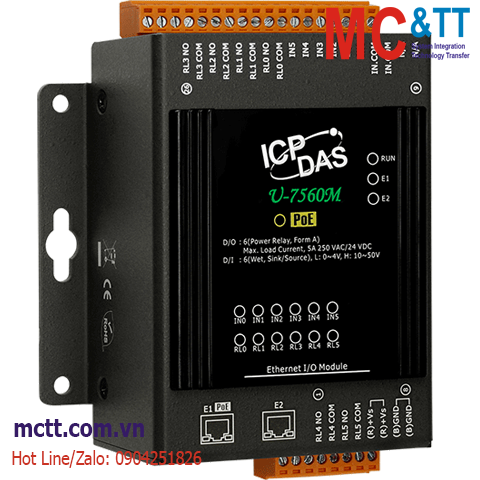

OPC UA I/O Module with 6-ch DI, 6-ch Relay and 2-port Ethernet Switch

THÔNG TIN SẢN PHẨM

Features

Built-in Web Server to Provide the Web User Interface
Built-in OPC UA Server
Support MQTT Client Communication Protocol
Built-in I/O Channels (6 x DI and 6 x Relay)
2-port Ethernet Switch for Daisy-Chain Topology
IEEE 802.3af-compliant Power over Ethernet (PoE)

Introduction

UA-7560M is an OPC UA I/O module that provides 6 digital input channels and 6 digital output Relay channels. It has a built-in two-port Ethernet switch to implement daisy-chain topology. The cabling is much easier and total costs of cable and switch are significantly reduced. UA-7560M follows IEEE 802.3af compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. This feature provides greater flexibility and efficiency to simplify system design, save space, and reduce wirings and power sockets.

UA I/O provides OPC UA server and MQTT client function in industrial networking communication. Users can choose the networking mode according to their needs and environment, to transmit the values of built-in I/O channels to the cloud IT system or field control system for reading and writing.

Specifications

Software
Protocol	● OPC UA Server • OPC Unified Architecture: 1.02 • Core Server Facet • Data Access Server Facet • Method Server Facet • UA-TCP UA-SC UA Binary • User Authentication: Username/Password, X.509 Certificate • Security Policy: None, Basic128Rsa15 (Sign, Sign & Encrypt), Basic256 (Sign, Sign & Encrypt) • Recommend to keep the max. number of sessions within 3 connections. ● MQTT Client • Connect to the MQTT Broker to read or control the I/O channel value by the publish/subscribe messaging mechanism. (MQTT Ver. 3.1.1; TLS Ver. 1.2)
Function	Web Interface for Configuration

Software

Protocol

● OPC UA Server
• OPC Unified Architecture: 1.02
• Core Server Facet
• Data Access Server Facet
• Method Server Facet
• UA-TCP UA-SC UA Binary
• User Authentication: Username/Password, X.509 Certificate
• Security Policy: None, Basic128Rsa15 (Sign, Sign & Encrypt), Basic256 (Sign, Sign & Encrypt)
• Recommend to keep the max. number of sessions within 3 connections.

● MQTT Client
• Connect to the MQTT Broker to read or control the I/O channel value by the publish/subscribe messaging mechanism. (MQTT Ver. 3.1.1; TLS Ver. 1.2)

Function

Web Interface for Configuration

CPU Module
CPU	32-bit CPU (400 MHz)

Isolation
Intra-module Isolation	2500 VDC

EMS Protection
EFT (IEC 61000-4-4)	±2 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for each terminal and ±8 kV Air for random point
Surge (IEC 61000-4-5)	±2 kV for Power Line

LED Indicators
Status	1 x PoE Power 1 x System Running 1 x Ethernet Link/Act 16 x I/O Channel Status

Digital Input/Counter
Channels	6
Type	Wet Contact
Sink/Source (NPN/PNP)	Sink/Source
Wet Contact, ON Voltage Level	+10 VDC ~ +50 VDC
Wet Contact, OFF Voltage Level	+4 VDC Max.
Max. Counts	16-bit (65535)
Frequency	50 Hz
Min. Pulse Width	10 ms
Input Impedance	10 kΩ
Overvoltage Protection	+70 VDC

Relay Output
Channels	6
Type	Power Relay, Form A (SPST N.O.)
Contact Rating	5 A @ 250 VAC/24 VDC (Resistive Load)
Operate Time	10 ms (max.)
Release Time	5 ms (max.)
Electrical Endurance	100,000 ops.
Mechanical Endurance	20,000,000 ops.

Ethernet
Ports	RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators)
PoE	Yes

Power
Reverse Polarity Protection	Yes
Input Range	12 ~ 48 VDC
Consumption	3.8 W
Powered from PoE	Yes, IEEE 802.3af, Class 1
Powered from Terminal Block	Yes, 12 ~ 48 VDC

Mechanical
Dimensions (mm)	97 x 120 x 42 (W x L x H)
Installation	Wall Mounting

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering infromation

UA-7560M CR

OPC UA I/O Module with 6-ch Relay, 6-ch DI and 2-port Ethernet Switch. (RoHS)
