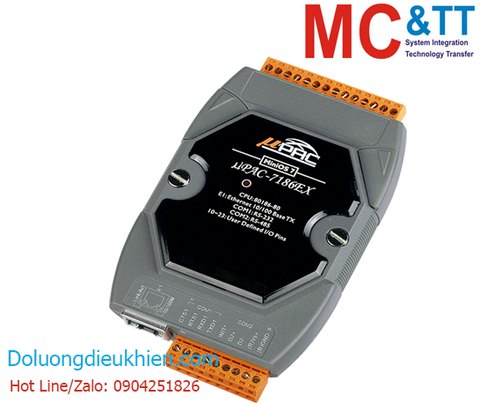

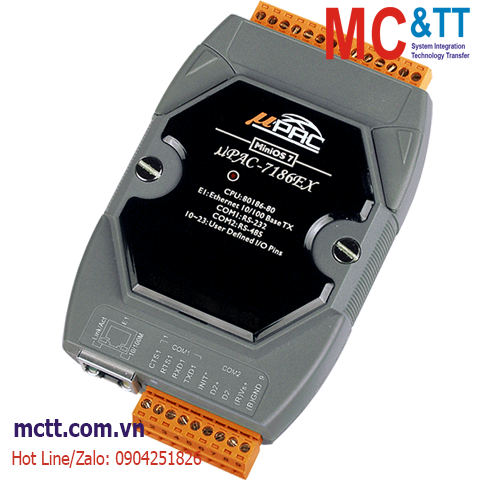

Bộ lập trình nhúng MiniOS7 PAC với CPU 80186-80 ICP DAS uPAC-7186EX-G CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Ethernet PAC with 80186-80 CPU, MiniOS7 (Gray Cover)

THÔNG TIN SẢN PHẨM

Features

• Built-in High-Performace MiniOS7 from ICP DAS
• Easy-to-use Software Development Tool Kits (Using C language)
• Various Storage Media
‣ 512 KB Flash
‣ 16 KB EEPROM
• Various Communication Interfaces
‣ 10/100 Base-TX Ethernet
‣ RS-232/RS-485
• 64-bit Hardware Serial Number
• I/O Expansion Bus Interface
• Build-in Watchdog Timer

Introduction

The uPAC-7186EX-G is a palm-size programmable automation controller with RS-232/485 and Ethernet communication interfaces. ICP DAS provides easy-to-use software development tool kits (MiniOS7 framework, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).

For hardware expansion, the uPAC-7186EX-G also supports an I/O expansion bus. A cost-effective I/O expansion board with A/D, D/A, D/I, D/O and serial ports is available. Nearly all kinds of I/O functions can be implemented by this bus. But the bus can support only one board. There are more than 50 boards available for uPAC-7186EX, you can choose one of them to expand hardware features.

Application

https://mctt.vn/upac-7186-i-7188-icp-das

Specifications

Software
OS	MiniOS7
Development	C Language

CPU Module
CPU	80186 or compatible, 16-bit and 80 MHz
64-bit Hardware Serial Number	Yes
EEPROM	16 KB
Flash	512 KB
NVRAM	31 Bytes
SRAM	512 KB
Real Time Clock	Provide seconds, minutes, hours, day of week, month, year
Watchdog Timer	Yes

LED Indicators
Status	1 x System

I/O Expansion
I/O Type	X-board

COM Ports
Ports	1 x RS-232 1 x RS-485
Baud Rate	115200 bps Max.

Ethernet
Ports	1 x RJ-45, 10/100 Base-TX

Power
Input Range	+10 ~ 30 VDC
Consumption	1.5 W

Mechanical
Dimensions (mm)	72 x 123 x 35 (W x H x D)
Installation	DIN-Rail Mounting

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +80 °C
Humidity	5 ~ 90 % RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

uPAC-7186EX-G CR

Ethernet PAC with 80186-80 CPU, MiniOS7 (Gray Cover) (RoHS)
