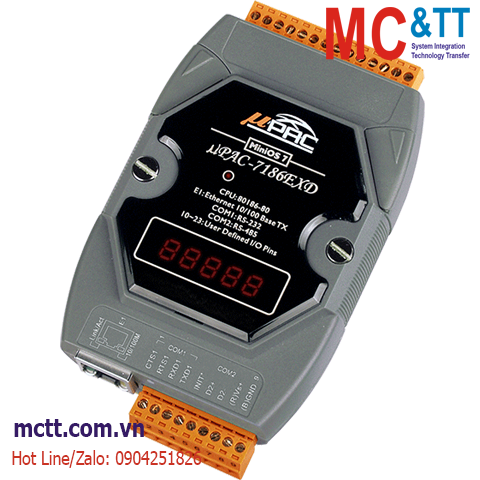

Miễn phí vận chuyển với đơn hàng từ 10.000.000đBộ lập trình nhúng MiniOS7 PAC với CPU 80186-80 ICP DAS uPAC-7186EXD-G CR
Features
• Built-in High-Performace MiniOS7 from ICP DAS
• Easy-to-use Software Development Tool Kits (Using C language)
• Various Storage Media
‣ 512 KB Flash
‣ 16 KB EEPROM
• Various Communication Interfaces
‣ 10/100 Base-TX Ethernet
‣ RS-232/RS-485
• 64-bit Hardware Serial Number
• I/O Expansion Bus Interface
• 5-Digital 7-SEG LED Display
• Build-in Watchdog Timer
Introduction
The uPAC-7186EXD is a palm-size programmable automation controller with RS-232/485 and Ethernet communication interfaces. ICP DAS provides easy-to-use software development tool kits (MiniOS7 framework, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).
For hardware expansion, the uPAC-7186EXD also supports an I/O expansion bus. A cost-effective I/O expansion board with A/D, D/A, D/I, D/O and serial ports is available. Nearly all kinds of I/O functions can be implemented by this bus. But the bus can support only one board. There are more than 50 boards available for uPAC-7186EXD, you can choose one of them to expand hardware features.
Application
https://mctt.vn/upac-7186-i-7188-icp-das
Specifications
| Software | |
|---|---|
| OS | MiniOS7 |
| Development | C Language |
| CPU Module | |
|---|---|
| CPU | 80186 or compatible, 16-bit and 80 MHz |
| 64-bit Hardware Serial Number | Yes |
| EEPROM | 16 KB |
| Flash | 512 KB |
| NVRAM | 31 Bytes |
| SRAM | 512 KB |
| Real Time Clock | Provide seconds, minutes, hours, day of week, month, year |
| Watchdog Timer | Yes |
| Display | |
|---|---|
| Type | 5 x Digit 7 Segment LED Display |
| LED Indicators | |
|---|---|
| Status | 1 x System |
| I/O Expansion | |
|---|---|
| I/O Type | X-board |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232 1 x RS-485 |
| Baud Rate | 115200 bps Max. |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100 Base-TX |
| Power | |
|---|---|
| Input Range | +10 ~ 30 VDC |
| Consumption | 2.5 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 72 x 123 x 35 (W x H x D) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +80 °C |
| Humidity | 5 ~ 90 % RH, Non-condensing |
Download
Ordering Information
| uPAC-7186EXD-G CR | Ethernet PAC with 80186-80 CPU, MiniOS7 and 7-Segment LED Display (Gray Cover) (RoHS) |
