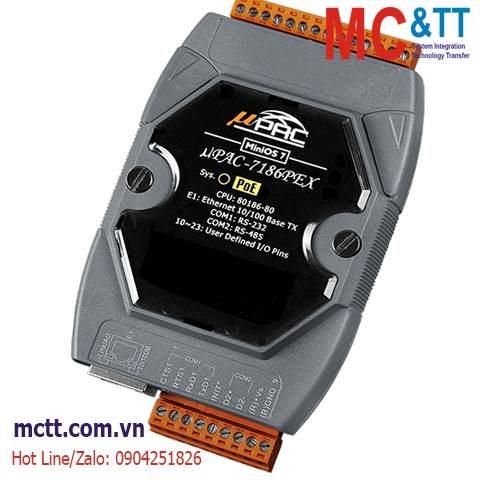

Bộ lập trình nhúng MiniOS7 PAC với CPU 80186-80 ICP DAS uPAC-7186PEX-G CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

Ethernet PAC with 80186-80 CPU, MiniOS7, PoE (Gray Cover)

Gọi +84 904251826 để được trợ giúp

Bộ lập trình nhúng MiniOS7 PAC với CPU 80186-80 ICP DAS uPAC-7186PEX-G CR

Features

• Built-in High-Performace MiniOS7 from ICP DAS
• Easy-to-use Software Development Tool Kits (Using C language)
• Various Storage Media
      ‣ 512 KB Flash
      ‣ 16 KB EEPROM
• Various Communication Interfaces
      ‣ 10/100 Base-TX Ethernet
      ‣ RS-232/RS-485
• 64-bit Hardware Serial Number
• I/O Expansion Bus Interface
• Build-in Watchdog Timer
• IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE)

Introduction

The uPAC-7186PEX is a palm-size programmable automation controller with RS-232/485 and Ethernet communication interfaces. ICP DAS provides easy-to-use software development tool kits (MiniOS7 framework, Modbus libraries). Users can use them to easily integrate serial devices to have Ethernet/Internet communication ability and through the standard Modbus protocol to communicate with SCADA software (Indusoft, ISaGARF, DasyLab, Trace Mode, Citect, iFix, etc.).

For hardware expansion, the uPAC-7186PEX also supports an I/O expansion bus. A cost-effective I/O expansion board with A/D, D/A, D/I, D/O and serial ports is available. Nearly all kinds of I/O functions can be implemented by this bus. But the bus can support only one board. There are more than 50 boards available for uPAC-7186PEX, you can choose one of them to expand hardware features.

The uPAC-7186PEX features true IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) using a standard category 5 Ethernet cable to receive power from a PoE switch like the NS-205PSE.

Application

https://mctt.vn/upac-7186-i-7188-icp-das

Specifications

Software
OS MiniOS7
Development C Language
CPU Module
CPU 80186 or compatible, 16-bit and 80 MHz
64-bit Hardware Serial Number Yes
EEPROM 16 KB
Flash 512 KB
NVRAM 31 Bytes
SRAM 512 KB
Real Time Clock Provide seconds, minutes, hours, day of week, month, year
Watchdog Timer Yes
LED Indicators
Status 1 x System/PoE
I/O Expansion
I/O Type X-board
COM Ports
Ports 1 x RS-232
1 x RS-485
Baud Rate 115200 bps Max.
Ethernet
Ports 1 x RJ-45, 10/100 Base-TX
Power
Input Range +12 ~ 48 VDC
Consumption 1.5 W
Powered from PoE IEEE 802 3af, Class 1
Mechanical
Dimensions (mm) 72 x 123 x 35 (W x H x D)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -40 ~ +80 °C
Humidity 5 ~ 90 % RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

uPAC-7186PEX-G     CR  Ethernet PAC with 80186-80 CPU, MiniOS7 and PoE (Gray Cover) (RoHS)
