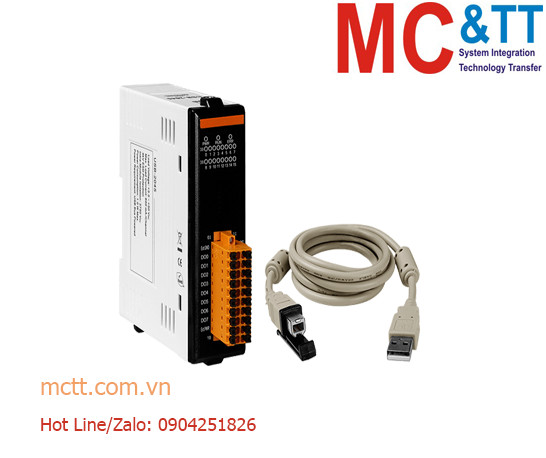

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule 16 kênh đầu ra số kết nối USB ICP DAS USB-2045 CR
Tính năng
• 16-channel sink type digital output
• Short Circuit, Overload and Overvoltage Protection
• Configurable Power-on Value Settings
• Safety functionality when communication failed
• No external power supply (USB Bus Powered)
• Plug-and-Play without driver
• Lockable USB cable
• Support firmware update via USB
• Utility tool for module configuration and I/O testing easily and quickly
• Provide API library (VB/C++/C#.NET/VB.NET/LabVIEW)
• Module supported for Win2000/XP , Win7/8/10/11 (32/64 bit) and Linux (32/64 bit)
Giới thiệu
The USB-2045 is a full-speed USB I/O device with 16 digital output channels module. In addition, The USB-2045 also offers 16 LED indicators that can be used to monitor the status of the digital output channels. Dual watchdog function that provided with configurable power-on and safe values ensures the device operates continuously, even in harsh environments.
We also provide API library and demos with source code for Windows and Linux users to develop their own USB applications with various development tools (VB/C++/C#.NET/VB.NET/LabVIEW). Therefore, the USB-2045/USB-2045 is the perfect choose for you to implement I/O expansion via a plug-and-play USB interface.
Ứng dụng
| ◾ Automation | ◾ Measurement and testing |
| ◾ Laboratory research | ◾ Testing equipment |
Thông số kỹ thuật
| CPU Module | |
|---|---|
| Watchdog Timer | 1 Hardware watchdog (1.6 second) 1 Software watchdog (Programmable) |
| EMS Protection | |
|---|---|
| ESD (IEC 61000-4-2) | 4 kV contact for each terminal 8 kV air for random point |
| LED Indicators | |
|---|---|
| Status | 3 x Power and Communication 16 x Digital Output |
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | Open Collector, Sink (NPN) |
| Load Voltage | +3.5 ~ +50 VDC |
| Load Current | 650 mA/Channel |
| Overvoltage Protection | 60 VDC |
| Overload Protection | 1.4 A (with short-circuit protection) |
| Power on Value | Yes, Programmable |
| Safe Value | Yes, Programmable |
| USB | |
|---|---|
| Specification | USB 2.0 Full-Speed (12Mbps) |
| Power | |
|---|---|
| Consumption | 1.2 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 x 110 x 96 (W x L x H) |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -40 ~ +85 °C |
| Humidity | 10 ~ 95% RH, Non-condensing |
Download
Thông tin mua hàng
| USB-2045 CR | USB I/O Module with 16-ch DO (Sink, NPN) with Overload Protection (RoHS) Includes 1.5M USB Cable (CA-USB15) |
