Miễn phí vận chuyển với đơn hàng từ 10.000.000đHub công nghiệp 7 cổng USB 3.0 ICP DAS USB-2563M7 CR
Feature
• USB 3.0 Gen1 speeds up to 5 Gbps
• Expand one USB port to 7 USB ports
• 7 downstream USB 3.0 ports (Type A); 1 upstream USB 3.0 port (Type B)
• Each downstream port supports up to 900mA with over-current protection
• 4 kV contact ESD protection and 1kV surge protection
• 10-30VDC Power inputs with polarity reverse protection
• Metal case with chassis ground
• DIN-rail mounting or wall mounting (optional)
Introduction
The USB-2563M7 allows you to add multiple high performance USB 3.0 peripheral devices to your computer. It supports the USB 3.0 high-speed mode that can achieve 5 Gbps data transmitting rate.
The USB-2563M7 only supports self-powered mode (drawing power from an external power supply). Externally powered USB hubs are the only way to guarantee the broadest compatibility for USB devices.
Application
Specifications
| LED Indicators | |
|---|---|
| Status | 1 x Power 7 x Downstream Ports |
| USB | |
|---|---|
| Ports | 7 |
| Specification | Universal serial bus Specification Rev.3.0/2.0/1.1/1.0 |
| Transfer Speed | 5 Gbit/s-Super speed mode |
| Supply Current | 900mA per port with over-current protection |
| Connector | Upstream x 1 (Type B) Downstream x 7 (Type A) |
| Power | |
|---|---|
| Input Range | +10 ~ +30 VDC |
| Consumption | 0.5 A @ 24 VDC for 450 mA per port. 1 A @ 24 VDC for 900 mA per port. |
| Mechanical | |
|---|---|
| Casing | Metal |
| Dimensions (mm) | 31 x 119 x 150 (W x L x H) |
| Installation | DIN-Rail mounting or wall mounting (optional) |
| Environment | |
|---|---|
| Operating Temperature | -25 °C ~ +75 °C |
| Storage Temperature | -40 °C ~ +85 °C |
| Humidity | 10 ~ 90% RH, non-condensing |
Download
Documents
Ordering Information

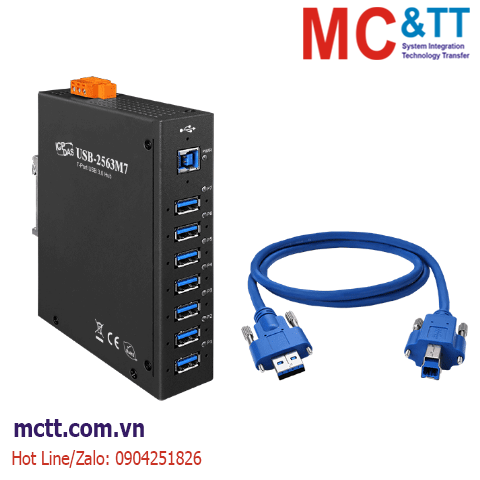

| USB-2563M7 CR | 7-Port 7-Port Industrial USB 3.0 Hub with Metal Case (RoHS) Includes CA-USB-AB1-L010 Cable (USB 3.0 Type-B to USB 3.0 Type-A Cable, 1M) |
