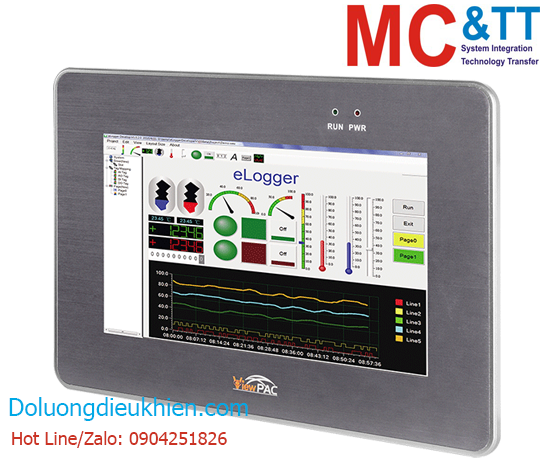

Miễn phí vận chuyển với đơn hàng từ 10.000.000đMàn hình cảm ứng lập trình nhúng ViewPAC 7 inch CPU Cortex-A8+ WinCE 7.0 ICP DAS VP-2201-CE7 CR
Features
• Cortex-A8, 1 GHz CPU
• 7" TFT LCD with Touch Panel
• Windows CE 7.0
• Hard Real-Time Capability
• Rich software support
• Various Memory and Storage
‣ 512 MB SDRAM and 256 MB Flash
‣ 16 KB EEPROM and 128 KB MRAM for data retention
‣ 1 x microSD socket with one microSD card
• Various Communication Interfaces
‣ 1 x 10/100/1000BASE-T Ethernet Port
‣ 2 x Serial Ports (RS-232/485)
‣ 2 x USB 2.0 (host)
• Built-In Real-time clock
• 64-bit Hardware Serial Number for Software Protection
• 2 x LED Indicators
• Audio with Earphone-out
• Built-In dual Watchdog Timer
• IP65 Compliant Front Panel
• Operating Temperature: -10 ~ +60 °C
Introduction
The VP-2201-CE7 are CE7 based ViewPAC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for integrating HMI, data acquisition and control in an individual PAC. It is equipped with an Cortex-A8 CPU, TFT LCD and a variety of connectives including dual a Gigabit Ethernet, USB port, RS-232 and RS-485 interface. I/O expansion is available to use our Ethernet I/O modules and RS-485 I/O modules. Designed for panel mount installation, the front panel is NEMA 4/IP65 rated and can withstand sprayed water, humidity and extreme dust. Designed to operate over a wide -10°C ~ 60°C ambient temperature range, the fanless design offers the ultimate in reliability with no moving parts. Windows Embedded Compact 7 is a componentized, hard real-time, high performance, and highly reliable operating system. CE7 delivers rich user experiences and a unique connection to Windows PCs, servers, services, and devices.
Specifications
| Software | |
|---|---|
| OS | Windows CE 7.0 |
| Service | FTP server, Web server (supports VB script, JAVA script), SQL Compact Edition 3.5 |
| Framework Support | .Net Compact Framework 3.5 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for VC, Dll for Visual Studio.Net 2008 |
| Main Unit | |
|---|---|
| CPU | Cortex-A8, 720 MHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 512 MB DDR3 SDRAM, 256 MB Flash (SSD) |
| Non-Volatile Memory | 128 KB MRAM, 16 KB EEPROM |
| Storage | 4 GB microSD card (up to 32 GB) |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
|---|---|
| Type | LCD |
| Size | 7" (16:9) |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 800 x 480 |
| Touch Panel | 4-wire, resistive type; light transmission: 80 % |
| LED Indicators | |
|---|---|
| Status | 1 x System, 1 x Power |
| COM Ports | |
|---|---|
| Ports | 2 x RS-232/RS-485 (2500 VDC Isolated) |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Audio | |
|---|---|
| Cable | Earphone-Out |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB | |
|---|---|
| Ports | 2 x USB 2.0 |
| Power | |
|---|---|
| Input Range | +12 ~ 48 VDC |
| Consumption | 6.0 W |
| Powered from PoE | Yes |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 213 x 148 x 44 (W x L x H) |
| Panel Cut-Out (mm) | 197 x 133, ±1 (W x H) |
| Installation | Panel mounting |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Weight | 1 Kg |
| Environmental | |
|---|---|
| Operating Temperature | -10 ~ +60 °C |
| Storage Temperature | -20 ~ +70 °C |
| Humidity | 10 ~ 90 % RH, Non-condensing |
Download
Ordering information
| VP-2201-CE7 CR | 7" Standard ViewPAC with Cortex-A8 CPU and WinCE 7.0 (RoHS) |
