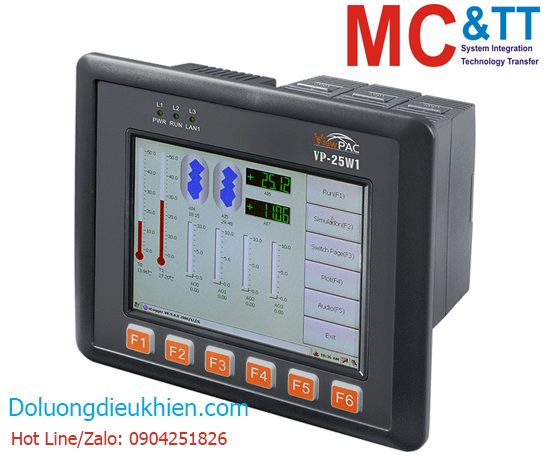

Miễn phí vận chuyển với đơn hàng từ 10.000.000đMàn hình cảm ứng lập trình nhúng ViewPAC 5.7 inch CPU PXA270+ WinCE 5.0 ICP DAS VP-25W1-EN CR
Features
• PXA270, 520 MHz CPU
• 5.7" TFT LCD with Touch Panel
• Windows CE 5.0
• Hard Real-Time Capability
• Rich software support
• Various Memory and Storage
‣ 128 MB SDRAM and 96 MB Flash
‣ 16 KB EEPROM for data retention
‣ 512 KB Battery-backup SRAM for data retention
‣ 1 x microSD socket with one microSD card
• Various Communication Interfaces
‣ 1 x 10/100BASE-T Ethernet Port
‣ 2 x Serial Ports (RS-232/485)
‣ 1 x USB 2.0 (host)
• Rubber Keypad with 6 Keys
• Built-In Real-time clock
• 64-bit Hardware Serial Number for Software Protection
• 3 x I/O Expansion Slots
• 3 x LED Indicators
• Audio with Microphone-in and Earphone-out
• Built-In dual Watchdog Timer
• IP65 Compliant Front Panel
• Operating Temperature: -20 ~ +70 °C
Introduction
VP-25W1-EN combines WinPAC, graphic display and keypad in one unit. It equips a PXA270 CPU (520MHz) running Windows CE.NET 5.0 operating system, various Communications (USB, Ethernet, RS-232/485), 3 slots to expand I/O modules, 5.7" TFT LCD and a rubber keypad. Its operating system, Windows CE.NET 5.0, has many advantages, includes hard real-time capability, small core size, fast boot speed, interrupt handling at a deeper level, achievable deterministic control and low cost. Running Windows CE.NET 5.0 in the ViewPAC gives it the ability to run PC-based control software such as Visual Basic.NET, Visual C#, Embedded Visual C++, SCADA software, Soft PLC Ketc. Compared to traditional IPC + PLC solutions, ViewPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.
Specification
| Software | |
|---|---|
| OS | Windows CE .NET 5.0 |
| Service | FTP Server, Web Server (supports VB script, JAVA script), Embedded SQL Server |
| Framework Support | .Net Compact Framework 2.0 |
| Multilanguage Support | English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese |
| SDK | Dll for eVC, Dll for Visual Studio.Net 2003/2005/2008 |
| Main Unit | |
|---|---|
| CPU | PXA270 or compatible, 32-bit, 520 MHz |
| 64-bit Hardware Serial Number | Yes |
| System Memory | 128 MB SDRAM |
| Non-Volatile Memory | 16 KB EEPROM, 512 KB Dual battery backup SRAM |
| Storage | 96 MB Flash, 4 GB microSD card (up to 32 GB) |
| Real Time Clock | Provide seconds, minutes, hours, dates, day of week, month, year |
| Watchdog Timer | Dual Watchdog Timer |
| Display | |
|---|---|
| Type | LCD |
| Size | 5.7" (4:3) |
| Backlight Life | 20,000 hours |
| Brightness | 400 cd/m2 |
| Resolution | 640 x 480 |
| Touch Panel | 4-wire, resistive type |
| LED Indicators | |
|---|---|
| Status | 1 x System, 1 x Power, 1 x Ethernet, 3 x Programmable |
| I/O Expansion | |
|---|---|
| I/O Type | I-8K, I-87K series |
| Slots | 3 |
| COM Ports | |
|---|---|
| Ports | 1 x RS-232, 1 x RS-485 (2500 VDC Isolated) |
| HMI | |
|---|---|
| Buzzer | Yes |
| Rotary Switch | 1 x 10 Position (0 ~ 9) |
| Rubber Keypad | 6 Keys |
| Audio | |
|---|---|
| Cable | Microphone-In and Earphone-Out |
| Ethernet | |
|---|---|
| Ports | 1 x RJ-45, 10/100 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| USB | |
|---|---|
| Ports | 1 x USB 1.1 (host) |
| Power | |
|---|---|
| Input Range | +10 ~ 30 VDC (1 kV Isolated ) |
| Consumption | 7.2 W |
| Mechanical | |
|---|---|
| Casing | Plastic |
| Dimensions (mm) | 182 x 158 x 125 (W x L x H) |
| Installation | Panel mounting |
| Ingress Protection Rating | Front panel: NEMA 4/IP65 |
| Weight | 1.6 Kg |
| Environmental | |
|---|---|
| Operating Temperature | -20 ~ +70 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 5 ~ 90 % RH, Non-condensing |
Download
Ordering information
| VP-25W1-EN CR | 5.7" Standard ViewPAC with PXA270 CPU, WinCE 5.0 and 3 I/O Slots (RoHS) (Multilanguage Version) |
