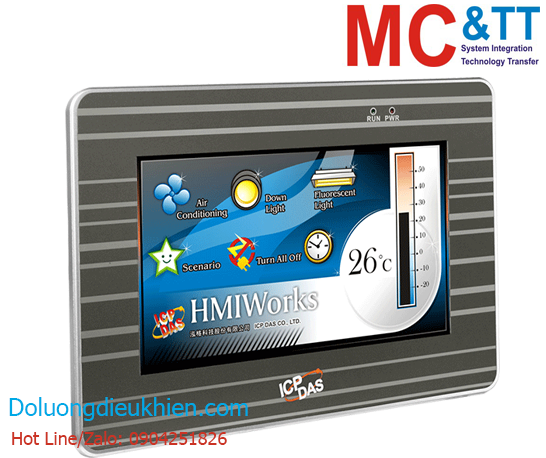

Màn hình cảm ứng HMI 7 inch 2xRS-232/485 + Ethernet Modbus RTU/TCP ICP DAS VPD-173N CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

7" Touch HMI Device with 2 x RS-232/RS-485, Ethernet (PoE), 16 MB Flash

THÔNG TIN SẢN PHẨM

Features

Excellent C/P ratio (cost/performance)
High-resolution color touch screen
RTC (Real Time Clock)
Serial communication interfaces
RTC (Real Time Clock)
I/O Expansion Boards: XV-Boards(VPD-173X/173X-64)
Front Panel: IP65 Waterproof
GUI design
Free HMIWorks development tool
Supports C language and Lader Designer
Supports user-defined third party protocol (C language)

Introduction

VPD-173 series HMI is designed for building, home and industrial automation. VPD-173 series is equipped with high resolution TFT color touch screen and fits in with regular electrical wall-mount outlet. Besides, it is seamlessly integrated with rich I/O modules and presents beautiful, flexible and user-defined picture frame. The VPD-173 series expands its memory to 16 MB SDRAM and 16 MB Flash, while the VPD-173-64 series expands its memory to 64 MB SDRAM and 64 MB Flash.Inshort, it is the best choice to upgrade the mechanical switch to intelligent control pads.

HMIWorks is a free development software for the VPD series HMI devices, which provides Ladder Designer for PLC users, and C language environment for IT users. Especially, it only takes no more than 30 minutes to learn how to create an application program of VPD-series devices when using Ladder Designer.

Specifications

Main Unit
CPU	32-bit RISC CPU
Storage	16 MB SDRAM/16 MB Flash
Real Time Clock	Yes

Display
Type	LCD 7” TFT (Resolution 800 x 480 , 65535 colors), defective pixels <= 3
Backlight Life	20,000 hours
Brightness	250 cd/m2
Touch Panel	Yes

LED Indicators
Status	2 LED

COM Ports
Ports	2 x RS-232 (3-pin) or RS-485 (including Self-Tuner) ; 2500 VDC isolated

HMI
Buzzer	Yes
Rotary Switch	Yes
Reset Button	Yes

Ethernet
Ports	RJ-45 x 1, 10/100 Base-TX

Power
Consumption	3.6 W
Powered from PoE	IEEE 802.3af, Class1 (48 V)
Powered from Terminal Block	+12 ~ 48 VDC

Mechanical
Dimensions (mm)	217 mm x 153 mm x 33 mm
Installation	Wall Mounting
Ingress Protection Rating	Front Panel: NEMA 4 /IP65

Environmental
Operating Temperature	-10 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering information

VPD-173N CR

7" Touch HMI Device with 2 x RS-232/RS-485, Ethernet (PoE), RTC, 16 MB Flash (RoHS)
