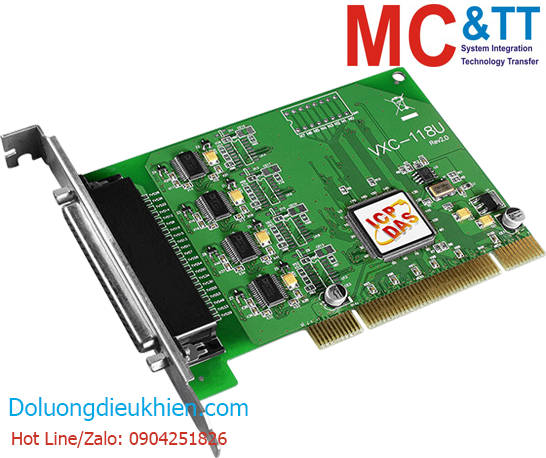

Card PCI 8 cổng COM RS-232 ICP DAS VXC-118U CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Universal PCI, Serial Communication Board with 8 RS-232 ports

THÔNG TIN SẢN PHẨM

Features

Supports 3.3 V/5 V PCI bus
Provides 8 RS-232 ports
Automatically select an available COM port number
Supports COM port number selection under software control
256-byte Hardware FIFO for Each Port
Short Card Design
RoHS compliant & No Halogen

Introduction

The VXC-118U card provides 8 RS-232 serial ports. It is equipped with a 256-byte hardware FIFO for each port, supports for speed up to 115200 bps and supports full-duplex communication. The VXC-118U card support drivers choose an available COM port number automatically.

The serial communication card are designed for use with intelligent devices like bar code reader, serial printers, intelligent sensors, instrumentation equipment, computers and almost any device with an RS-232 port.

Specification

Hardware
Connector	Female DB-62

COM Ports
Ports	8 x RS-232 (TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND)
Baud Rate	50 - 115200 bps
Parity	None, Even, Odd, Mark, Space
Data Bit	5, 6, 7, 8
Stop Bit	1, 1.5, 2
FIFO Size	Internal 256 bytes

Power
Consumption	120 mA @ 5 V

Mechanical
Dimensions (mm)	121 x 132 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Data sheet

D ocuments

Odering information

VXC-118U CR

Universal PCI, Serial Communication Board with 8 RS-232 ports (RoHS)
Includes one CA-PC62M D-Sub connector
