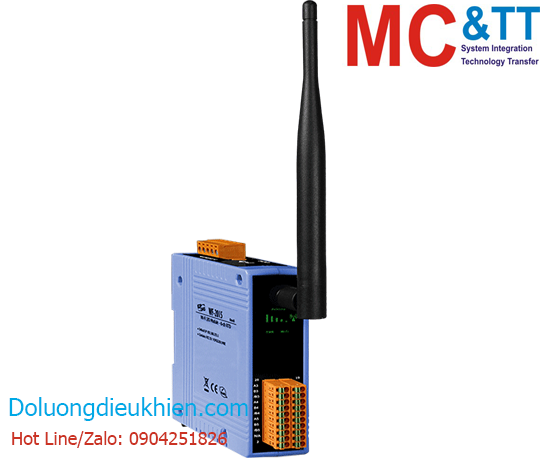

Module Wi-Fi Modbus TCP 6 kênh đầu vào RTD 3 dây ICP DAS WF-2015 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

Wi-Fi I/O Module with 6-ch RTD Input

THÔNG TIN SẢN PHẨM

Features

• 6-channel RTD Input
• 3-wire RTD Input with Lead Resistance Elimination
• Open Wire Detection
• Individual Channel Configuration
• Compatible with IEEE 802.11b/g standards
• Support WEP, WPA and WPA2 wireless encryption
• Support Modbus/TCP and UDP protocols
• Support DHCP network configuration
• 4 kV ESD/EFT Protection
• 3000 VDC Intra-module Isolation
• Built-in Watchdog

Introduction

The WF-2015 is a Wi-Fi interface and 6-channel RTD input module for long-distance temperature measurement, and features automatic compensation for three-wire RTD sensor, meaning that accurate measurements can be obtained regardless of the length of the wires. With the popularity of 802.11 network infrastructure, the WF-2015 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2015 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.

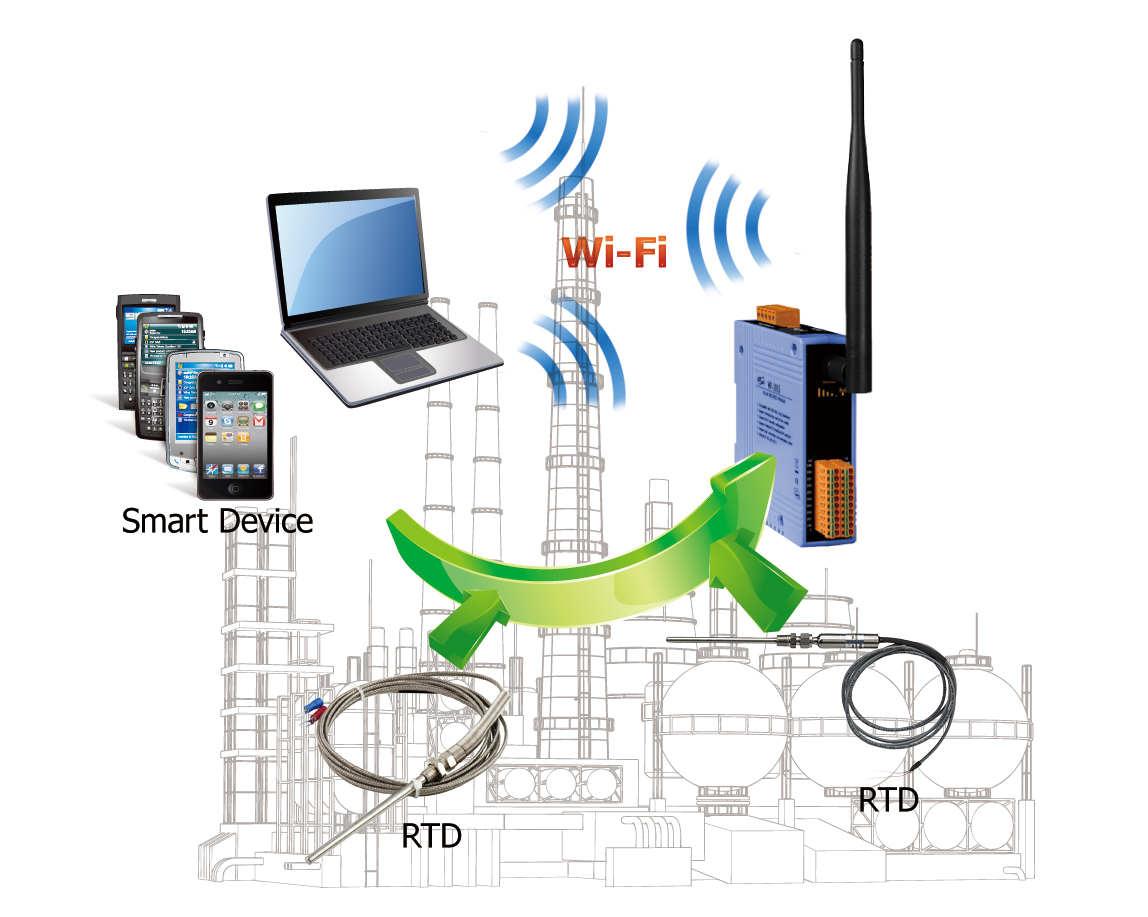

Application

Specification

Isolation
Intra-module Isolation	Power: 3000 VDC

Wi-Fi
Transmission Range	50 meters (LOS)
Standards	IEEE 802.11b/g
Receive Sensitivity	-83 dBm @ 11Mbps
Output Power	8 dBm @ 11 Mbps
Mode	Infrastructure & Ad-hoc* Infrastructure & Limit-AP**
Encryption	WEP, WPA and WPA2
Antenna	5 dBi (Omni-Directional)

Analog Input
Channels	6
Type	RTD
Sensor Type	Pt100, Pt1000, Ni120, Cu50, Cu100, Cu1000
Resistance Measurement	3.2 kΩ Max.
Resolution	16-bit
Accuracy	±0.05% of FSR
Sampling Rate	12 Hz (Total)
Overvoltage Protection	+120 VDC
Individual Channel Configuration	Yes
Open Wire Detection	Yes
3-wire RTD Lead Resistance Elimination	Yes

Power
Input Range	+10 VDC ~ +30 VDC
Consumption	1.44 W

Mechanical
Dimensions (mm)	33 x 106 x 120 (W x L x H)
Installation	DIN-Rail Mounting

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data Sheet

Documents

Ordering information

WF-2015 CR

Wi-Fi I/O Module with 6-ch RTD Input (RoHS)
