Module Wi-Fi Modbus TCP 10 kênh AI Thermocouple ICP DAS WF-2019/S CR

Tính năng

• 10 differential universal analog input channels
• Supports thermocouple devices with J, K, T, E, R, S, B, N, C types
• Compatible with IEEE 802.11b/g standards
• Support WEP, WPA and WPA2 wireless encryption
• Support Modbus/TCP and UDP protocols
• Support DHCP network configuration
• Wide operating temperature range
• Built-in watchdog

Giới thiệu

The WF-2019 is a 10-channel universal analog input module with voltage and current input types. It provides extremely accurate thermocouple measurement and automatically cold-junction compensation for each channel. In addition, the WF-2019 has WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2019 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2019 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.

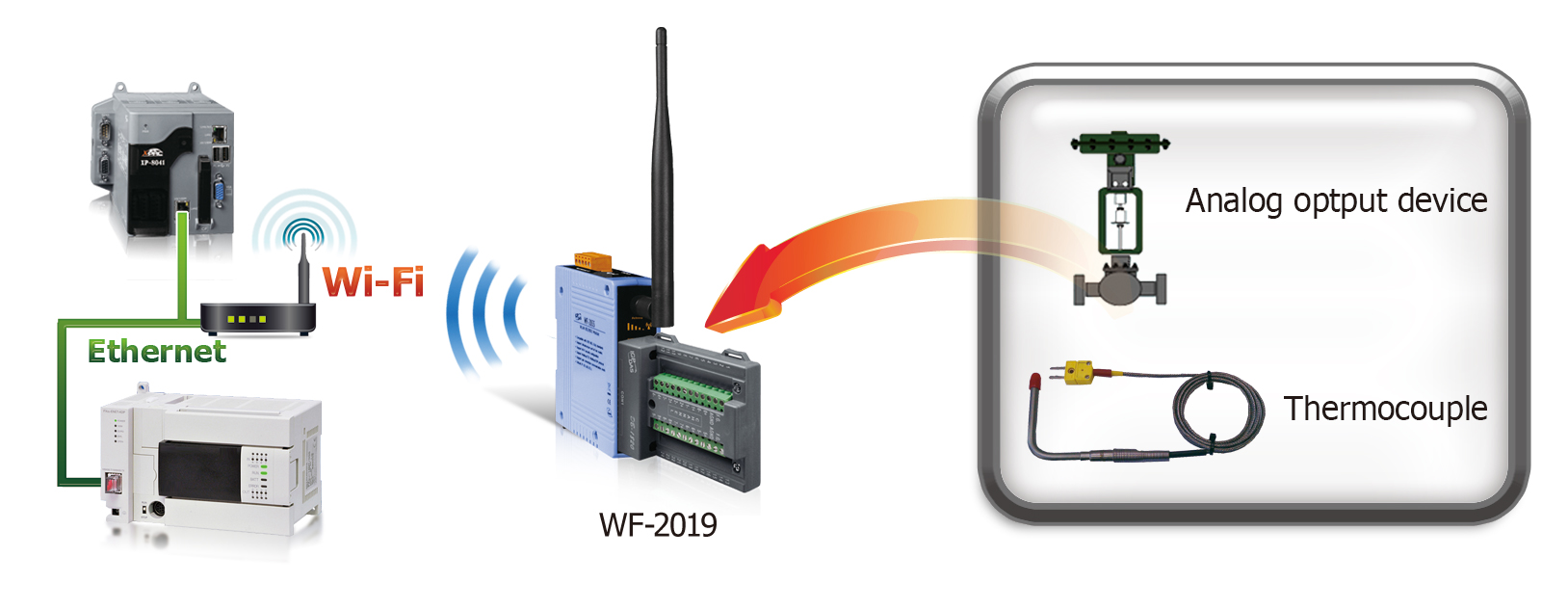

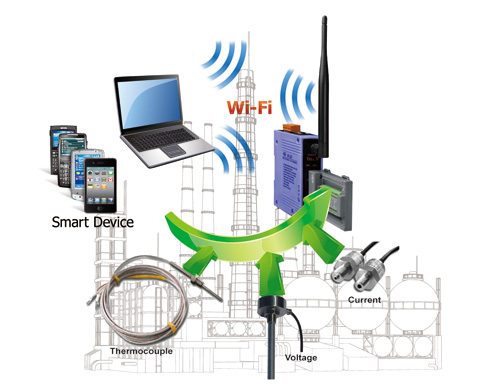

Ứng dụng

Specification

Isolation
Intra-module Isolation	AI: 3000 VDC

Wi-Fi
Transmission Distance (LoS)	50 meters (LOS)
Standard	IEEE 802.11 b/g* IEEE 802.11 b/g/n**
RX Sensitivity	-83 dBm @ 11 Mbps* -93 dBm @ 11 Mbps**
Output Power	8 dBm @ 11 Mbps* 14 dBm @ 11 Mbps**
Mode	Infrastructure & Ad-hoc* Infrastructure & Limit-AP**
Encryption	WEP, WPA and WPA2
Antenna	5 dBi (Omni-Directional)

Analog Input
Channels	10
Type	Voltage Current
Sensor Type	Thermocouple
Range	Voltage: ±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V, ±5 V, ±10 V Current: ±20 mA (External resistor is required) Thermocouple: J, K, T, E, R, S, B, N, C
Resolution	16-bit
Accuracy	±0.1% of FSR
Sampling Rate	10 Hz (Total)
Input Impedance	Voltage Input: >400 kΩ, Current Input: 125 Ω
Common Mode Rejection	86 dB Min.
Normal Mode Rejection	100 dB
Overvoltage Protection	240 Vrms
Individual Channel Configuration	Yes
Open Wire Detection	Yes
Zero Drift	±20 μV/°C
Span Drift	±25 ppm/°C
