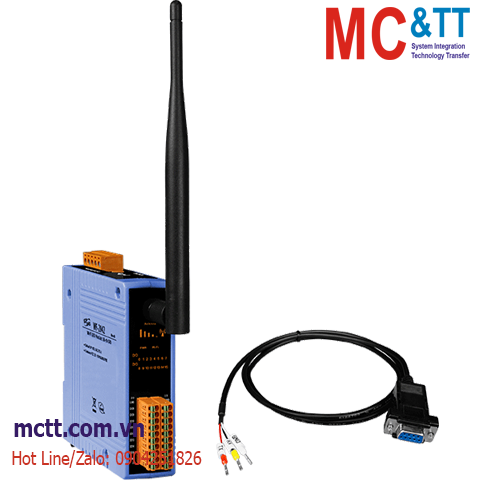

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule Wi-Fi Modbus TCP 16 kênh DO ICP DAS WF-2042 CR
Tính năng
• Support sink type digital output
• Compatible with IEEE 802.11b/g standards
• Support Infrastructure and Ad hoc modes
• Support Modbus/TCP and UDP protocols
• Support DHCP network configuration
• Support pair connection mode
• Support DO power on value & safe value mechanism
• Built-in Watchdog
• Wide Operating Temperature Range
• 4kV ESD Protection
Giới thiệu
The WF-2042 is a 16-channel isolated digital output module and it is one of the members of the WF-2000 wireless product family. In addition, the WF-2042 has WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2042 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2042 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.

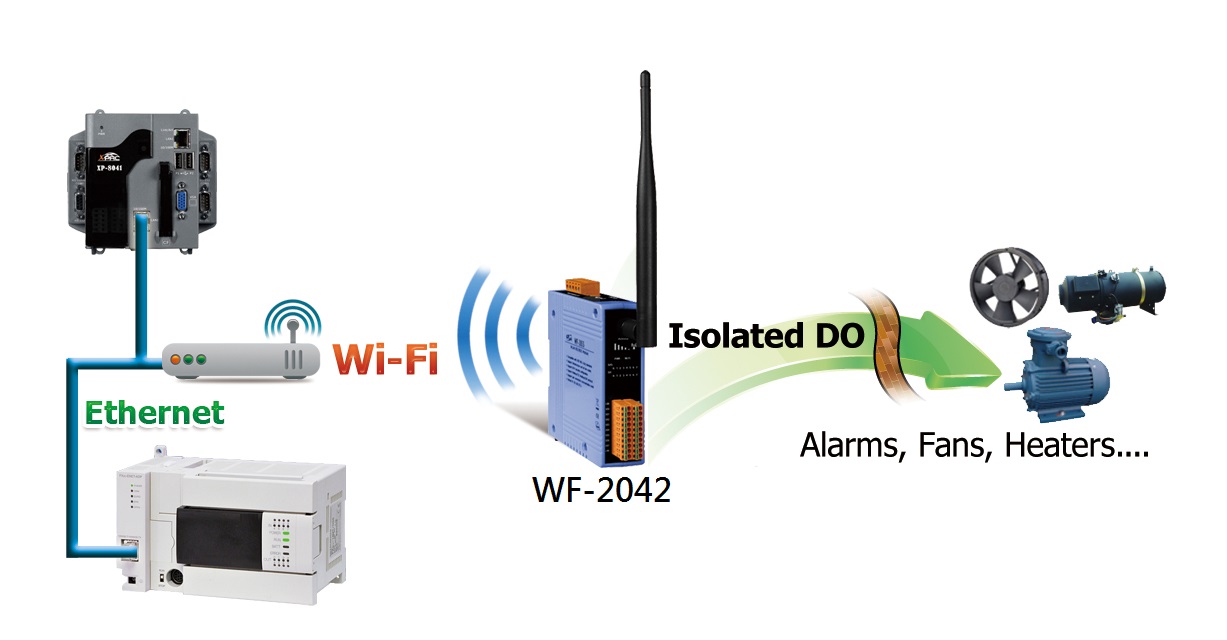

Ứng dụng
Thông số kỹ thuật
| Isolation | |
|---|---|
| Intra-module Isolation | DO: 3750 VDC |
| Wi-Fi | |
|---|---|
| Transmission Distance (LoS) | 50 meters (LOS) |
| Standard | IEEE 802.11 b/g* IEEE 802.11 b/g/n** |
| RX Sensitivity | -83 dBm @ 11 Mbps* -93 dBm @ 11 Mbps** |
| Output Power | 8 dBm @ 11 Mbps* 14 dBm @ 11 Mbps** |
| Mode | Infrastructure & Ad-hoc* Infrastructure & Limit-AP** |
| Encryption | WEP, WPA and WPA2 |
| Antenna | 5 dBi (Omni-Directional) |
| Digital Output | |
|---|---|
| Channels | 16 |
| Type | Open Collector |
| Sink/Source (NPN/PNP) | Sink (NPN) |
| Load Voltage | +3.5 ~ +50 V |
| Load Current | 700 mA per channel |
| Overvoltage Protection | 60 VDC |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.5 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 x 127 x 107 (W x L x H) (Without antenna) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Thông tin mua hàng
| WF-2042 CR | Wi-Fi I/O Module with Isolated 16-ch (Sink, NPN) DO (Asia Only) (RoHS) Includes ANT-124-05 Antenna and CA-0910 Cable |
