Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule Wi-Fi Modbus TCP 16 kênh DI ICP DAS WF-2051 CR
Tính năng
• Support sink/source type digital inputs
• Compatible with IEEE 802.11b/g standards
• Support infrastructure and ad hoc modes for wireless networks
• Support WEP, WPA and WPA2 wireless encryption
• Support Modbus/TCP and UDP protocols
• Support DHCP network configuration
• Built-in Watchdog
• Wide Operating Temperature Range
• 4 kV ESD Protection
Giới thiệu
The WF-2051 is a 16-channel isolated digital input with 32-bit counters module and it is one of the members of the WF-2000 wireless product family. In addition, the WF-2051 has WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2051 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2051 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.

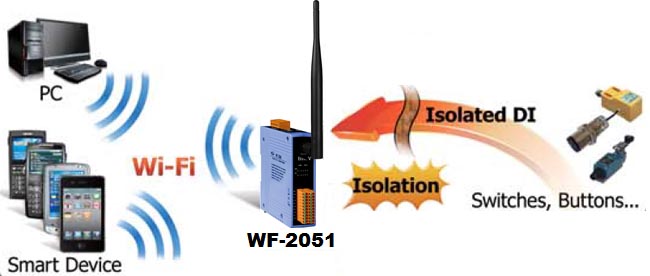

Application
Thông số kỹ thuật
| Isolation | |
|---|---|
| Intra-module Isolation | DI: 3750 VDC |
| Wi-Fi | |
|---|---|
| Transmission Distance (LoS) | 50 meters (LOS) |
| Standard | IEEE 802.11 b/g* IEEE 802.11 b/g/n** |
| RX Sensitivity | -83 dBm @ 11 Mbps* -93 dBm @ 11 Mbps** |
| Output Power | 8 dBm @ 11 Mbps* 14 dBm @ 11 Mbps** |
| Mode | Infrastructure & Ad-hoc* Infrastructure & Limit-AP** |
| Encryption | WEP, WPA and WPA2 |
| Antenna | 5 dBi (Omni-Directional) |
| Digital Input/Counter | |
|---|---|
| Channels | 16 Counters: 8 |
| Type | Dry Contact Wet Contact |
| Sink/Source (NPN/PNP) | Dry: Source Wet: Sink/Source |
| ON Voltage Level | Dry: Close to GND Wet: +10 ~ 50 VDC |
| OFF Voltage Level | Dry:Open Wet: +4 VDC Max. |
| Max. Counts | 32-bit (4294967295) |
| Frequency | 8K Hz Max. |
| Power | |
|---|---|
| Input Range | +10 VDC ~ +30 VDC |
| Consumption | 1.2 W |
| Mechanical | |
|---|---|
| Dimensions (mm) | 33 x 127 x 107 (W x L x H) (Without antenna) |
| Installation | DIN-Rail Mounting |
| Environment | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Thông tin mua hàng
| WF-2051 CR | Wi-Fi I/O Module with Isolated 16-ch (Dry, Wet) DI (Asia Only) (RoHS) Includes ANT-124-05 Antenna and CA-0910 Cable |
