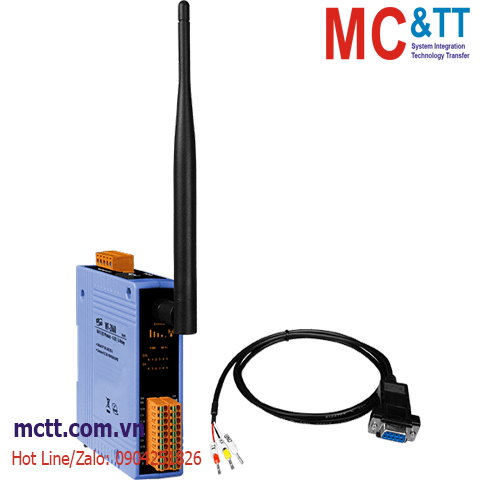

Module Wi-Fi Modbus TCP 6 kênh DI + 6 kênh Relay ICP DAS WF-2060 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng
Liên hệ

Wi-Fi I/O Module with Isolated 6-ch (Dry, Wet) DI and 6-ch Relay (Asia Only)

Gọi +84 904251826 để được trợ giúp

Module Wi-Fi Modbus TCP 6 kênh DI + 6 kênh Relay ICP DAS WF-2060 CR

Tính năng

• Support Relay type digital outputs
• Support sink/source type digital inputs
• Compatible with IEEE 802.11b/g standards
• Support infrastructure and ad hoc modes for wireless networks
• Support WEP, WPA and WPA2 wireless encryption
• Support Modbus/TCP and UDP protocols
• Support pair connection mode
• Support DO power on value & safe value Mechanism
• Built-in Watchdog

Giới thiệu

The WF-2060, one member of ICP DAS WF-2000 (Wi-Fi) wireless product family, is a 6-channel isolated digital input with 32-bit counters, 6-channel power relay output module. WF-2060 in WLAN connection complies with the IEEE802.11b/g standards. With the popularity of 802.11 network infrastructure, the WF-2060 makes an easy way to incorporate wireless connectivity into monitoring and control systems. The WF-2060 also supports Modbus/TCP and UDP protocols and the network encryption configuration, which makes perfect integration to SCADA software and offer easy and safe access for users from anytime and anywhere.

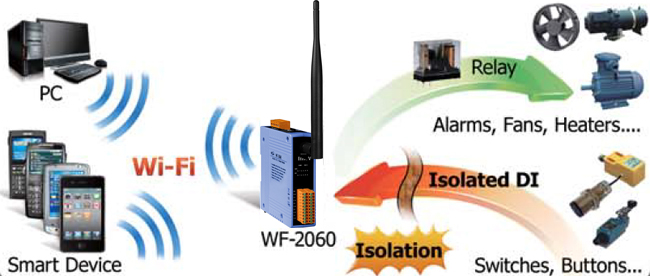

Ứng dụng



Thông số kỹ thuật

Isolation
Intra-module Isolation DI: 3750 VDC
Wi-Fi
Transmission Distance (LoS) 50 meters (LOS)
Standard IEEE 802.11 b/g*
IEEE 802.11 b/g/n**
RX Sensitivity -83 dBm @ 11 Mbps*
-93 dBm @ 11 Mbps**
Output Power 8 dBm @ 11 Mbps*
14 dBm @ 11 Mbps**
Mode Infrastructure & Ad-hoc*
Infrastructure & Limit-AP**
Encryption WEP, WPA and WPA2
Antenna 5 dBi (Omni-Directional)
Digital Input/Counter
Channels 6
Counters: 6
Type Dry Contact
Wet Contact
Sink/Source (NPN/PNP) Dry: Source
Wet: Sink/Source
ON Voltage Level Dry: Close to GND
Wet: +10 ~ 50 VDC
OFF Voltage Level Dry: Open
Wet: +4 VDC Max.
Max. Counts 32-bit (4294967295)
Frequency 10K Hz Max.
Relay Output
Channels 6
Type Power Relay (SPST-NO)
Contact Rating Form A:
5 A 250 VAC (47 ~ 63 Hz)
5 A 30 VDC
Operate Time Form A: 10 ms
Release Time Form A: 5 ms
Electrical Endurance 100,000 times min.
Mechanical Endurance 20,000,000 times min.
Power
Input Range +10 VDC ~ +30 VDC
Consumption 1.6 W
Mechanical
Dimensions (mm) 33 x 127 x 107 (W x L x H)
(Without antenna)
Installation DIN-Rail Mounting
Environment
Operating Temperature -25 ~ +75 °C
Storage Temperature -30 ~ +80 °C
Humidity 10 ~ 90% RH, Non-condensing

Download

Data Sheet

Documents

Thông tin mua hàng

WF-2060  CR  Wi-Fi I/O Module with Isolated 6-ch (Dry, Wet) DI and 6-ch Relay (Asia Only) (RoHS)
Includes ANT-124-05 Antenna and CA-0910 Cable
