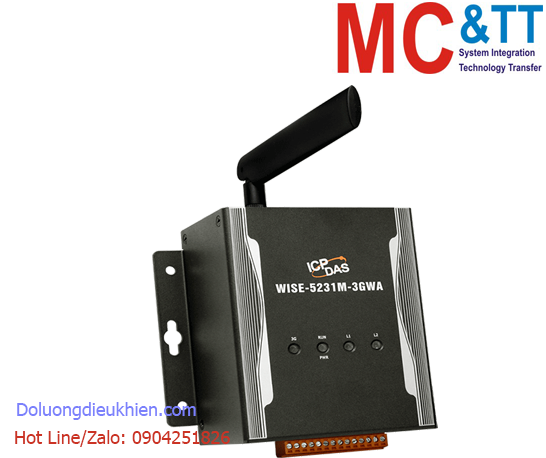

WISE-5231M-3GWA CR: Bộ lập trình nhúng IoT Wise (IIoT Edge Controller 3G)
Features
• Runs on browsers, no extra software tool is required.
• No more programming, Web pages provided for control logic editing.
• IF-THEN-ELSE logic rules execution ability.
• Support XV-board.
• Support DCON or Modbus RTU Slave modules (Up to 32, COM3 and COM4 can connect to Max. 16 modules individually.).
• Support Modbus TCP Slave modules (Up to 16).
• Timer and Schedule functions supported.
• Data logger and data files send back function supported.
• Active I/O sending function for real-time data transfer.
• CGI Command sending and receiving function supported for IP Camera and Network device.
• Support Modbus TCP/RTU, SNMP, FTP and MQTT protocols.
• Support Line, SMS and Email real-time message sending.
• Support Connection with IoT Cloud Platform (Microsoft Azure and IBM Bluemix).
• Support IoTstar Cloud Management Software.
• Support 3G wireless data communication.
Introductions
WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With the built-in IF-THEN-ELSE logic engine, WISE can execute the automation logic in a stable and efficient way, and it also provides mathematic operation, Schedule and Email alarm message sending functions. WISE provides more supports in I/O module connection, I/O data logging and IoT platform integration. It allows connection to XV-board, DCON I/O modules, and Modbus TCP/RTU Slave modules all together. The wide range of selection options enables flexibility in I/O module integration to meet the requirements from various applications. WISE provides the MQTT client, it can directly connect to the major public IoT Cloud platform (such as: Microsoft Azure or IBM Bluemix) and MQTT Broker. WISE also provide well thought-out CGI command functions to integrate with IP camera for the Access Control applications. Based on the ability as I/O module connection ability, Intelligent logic control, Data logging, and various communication protocols supported (SNMP, MQTT and Modbus TCP/RTU), WISE can help the IT/MIS/MES/SCADA system to manage the field side I/O modules and sensors efficiently in the application such as Unmanned Facility Room Monitoring, Intelligent Factory and Environment Monitoring. WISE is not just a Concentrator of I/O modules and Sensors; it is also a Gateway to transfer the sensor data to IoT Cloud platform. All of these make WISE the best choice in the IoT Age.
Specifications
| Software |
| Protocol |
• Modbus TCP & Modbus RTU
• FTP Client & Server
• SNMP & SNMP Trap
• MQTT Client (Message Publish & Subscribe; non-SSL & SSL)
• CGI Command (Sending & Receiving)
• Active I/O (Modbus TCP Master/MQTT Publish/SNMP Trap)
• DDNS |
| Function |
• Web Interface for Configuration
• IF-THEN-ELSE Logic operation (Unlimited rule supported)
• I/O channel monitoring and control
• Timer operation (Unlimited set supported)
• Schedule operation (More Powerful; Unlimited set supported)
• Data Logger operation (Unlimited set supported)
• Internal Register operation (100 set supported)
• Recipe operation (Unlimited set supported)
• Instant message sending function (LINE Notify)
• non-SSL & SSL Email sending function.
• SMS message sending function.
• SNTP Time Synchronization |
| IoT Service Integration |
• ICP DAS IoTstar IoT Cloud Management Software
• Microsoft Azure IoT Cloud platform
• IBM Bluemix IoT Cloud platform |
| CPU Module |
| CPU |
32-bit ARM CPU (1.0 GHz) |
| Storage Expansion |
Built-in one 4 GB microSD card (support up to 32 GB microSDHC card) |
| LED Indicators |
| Status |
1 x Power/Running
1 x Modem Status
1 x Mobile Network Status |
| 2G System |
| Frequency Band |
GSM: 850/900/1800/1900 MHz |
| GPRS Connectivity |
GPRS class 12/10; GPRS station class B |
| 3G System |
| Data Transmission |
WCDMA / HSPA+; Download: Max. 14.4Mbps; Upload: Max 5.76Mbps |
| Frequency Band |
WCDMA 850/900/1900/2100 MHz |
| I/O Expansion |
| I/O Type |
XV-board |
| Remote Module Support |
I-7000/M-7000/tM/DL/LC/SC/IR Series Module
WISE-7100/(P)ET-7000/WF-2000 Series Module
Modbus RTU Slave Module
Modbus TCP Slave Module |
| IP Camera |
iCAM Series Module |
| COM Ports |
| Ports |
COM 1: Reserved
COM 2: RS-232 (TxD, RxD, GND), non-isolated, Speed: 115200 bps max.
COM 3: RS-485 (Data+, Data-), non-isolated, Speed: 115200 bps max.
COM 4: RS-485 (Data+, Data-), 2500 VDC isolated, Speed: 115200 bps max. |
| Ethernet |
| Ports |
RJ-45 x 1, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators) |
| Power |
| Input Range |
12 ~ 48 VDC |
| Consumption |
6.5W |
| Mechanical |
| Dimensions (mm) |
117 × 126 × 58 (W x L x H) |
| Installation |
DIN-Rail Mounting/Wall Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-40 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Ordering information
| WISE-5231M-3GWA CR |
IIoT Edge Controller (Support 3G Communication) (Metal Case) (RoHS) |
Download
Data sheet
Manual
