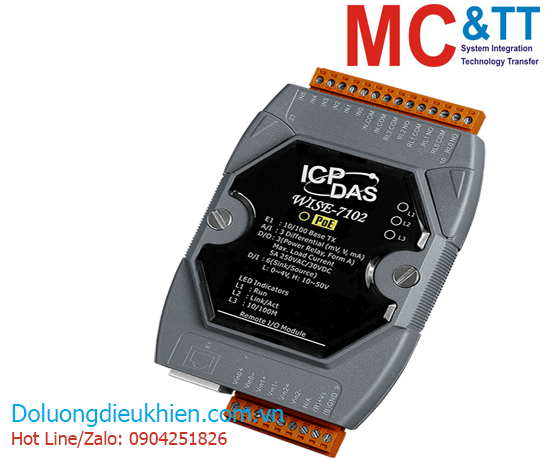

Module lập trình nhúng Wise IoT 3 kênh AI + 6 kênh DI + 3 kênh Relay ICP DAS WISE-7102 CR
Tính năng
- Runs on browsers, no extra software tool is required.
- No more programming, Web pages provided for control logic editing.
- IF-THEN-ELSE logic rules execution ability.
- Built-in I/O (AI: 3-channels; DO: 3-channels Power Relay; DI: 6-channels).
- Support I/O channel monitoring/control, Timer operations.
- Support non-SSL Email sending and CGI Command sending operations.
- Modbus TCP Protocol for SCADA System Integration.
- IEEE 802.3af-compliant Power over Ethernet (PoE).
Giới thiệu
WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the effort and cost spent on system development.
WISE-7102 follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency therefore simplifying systems design, saving space, reducing cables and eliminating the requirement for dedicated electrical outlets. Meanwhile, in case under a non-PoE environment, WISE-7102 will still be able to receive power from auxiliary power sources like AC adapters or battery, etc.
This multi-function module WISE-7102 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 3-channels analog inputs, 6-channels digital inputs and 3-channels Power Relay outputs. Each analog input channel provides 240 Vrms high over voltage protection.
Thông số kỹ thuật
| Protocol |
• Modbus TCP
• CGI Command (Sending) |
| Function |
• Web Interface for Configuration
• IF-THEN-ELSE Logic operation (36 rule supported)
• I/O channel monitoring and control
• Timer operation (12 set supported)
• Internal Register operation (48 set supported)
• Recipe operation (12 set supported)
• Advanced P2P (8 set supported)
• non-SSL Email sending function |
| CPU Module |
| CPU |
16-bit CPU (80 MHz) |
| Isolation |
| Intra-module Isolation |
2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±4 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each terminal and ±8 kV Air for random point |
| Surge (IEC 61000-4-5) |
±0.5 kV for Power Line |
| LED Indicators |
| Status |
1 x PoE Power
1 x System Running
1 x Ethernet Link/Act
1 x Ethernet 10/100M Speed |
| Analog Input |
| Channels |
3 (Differential) |
| Type |
±150mv, ±500mv, ±1 V, ±5 V, ±10 V
±20 mA, 0 ~ 20 mA, 4 ~ 20 mA
(Jumper Selectable) |
| Resolution |
16-bit |
| Accuracy |
±0.1% |
| Sampling Rate |
10 Sample/Sec. (Total) |
| Input Impedance |
Voltage: 2 MΩ
Current: 125 Ω |
| Common Mode Rejection |
86 dB Min. |
| Normal Mode Rejection |
100 dB |
| Overvoltage Protection |
240 Vrms |
| Overcurrent Protection |
Yes, 50 mA max. at 110 VDC/VAC max. |
| Individual Channel Configuration |
Yes |
| Open Wire Detection |
Yes, for 4 ~ 20 mA only |
| Zero Drift |
±20 μV/°C |
| Span Drift |
±25 ppm/°C |
| Digital Input/Counter |
| Channels |
6 |
| Type |
Wet Contact |
| Sink/Source (NPN/PNP) |
Sink/Source |
| ON Voltage Level |
+10 VDC ~ +50 VDC |
| OFF Voltage Level |
+4 VDC Max. |
| Max. Counts |
16-bit (65535) |
| Frequency |
50 Hz |
| Min. Pulse Width |
10 ms |
| Input Impedance |
10 KΩ, 0.5W |
| Overvoltage Protection |
+70 VDC |
| Relay Output |
| Channels |
3 |
| Type |
Power Relay, Form A (SPST N.O.) |
| Contact Rating |
Operating Voltage Range: 250 VAC/30 VDC
Max Load Current: 5.0A/channel at 25°C
Intra-module Isolation, Field to Logic: 3750 VDC |
| Operate Time |
6 ms (Typical) |
| Release Time |
3 ms (Typical) |
| Electrical Endurance |
VDE:
5 A @ 250 VAC 30,000 ops. (10 ops./minute) at 75°C
5 A @ 30 VDC 70,000 ops. (10 ops./minute) at 75°C
UL:
5 A @ 250 VAC/30 VDC 6,000 ops.
3 A @ 250 VAC/30 VDC 100,000 ops. |
| Mechanical Endurance |
20,000,000 ops. at no load (300 ops./minute) |
| Ethernet |
| Ports |
RJ-45 x 1, 10/100 Base-TX and automatic MDI/MDI-X |
| PoE |
Yes |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
12 ~ 48 VDC |
| Consumption |
3.4 W |
| Powered from PoE |
Yes, IEEE 802.3af, Class 1 |
| Powered from Terminal Block |
Yes, 12 ~ 48 VDC |
| Mechanical |
| Dimensions (mm) |
72 x 123 x 35 (W x L x H) |
| Installation |
DIN-Rail Mounting/Wall Mounting |
| Environment |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Data sheet
Documents
Thông tin mua hàng
| WISE-7102 CR |
Intelligent I/O Module with 3-ch AI, 6-ch DI, 3-ch Power Relay and PoE (RoHS) |
