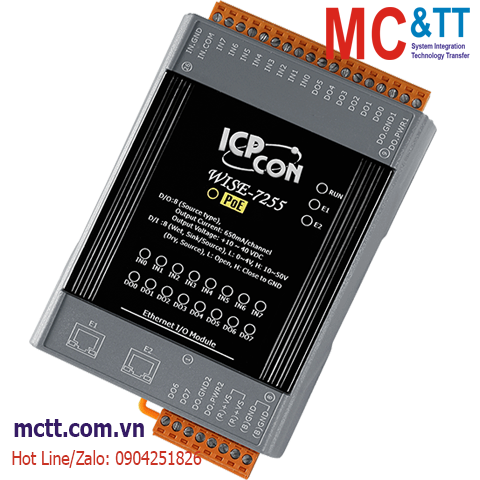

Miễn phí vận chuyển với đơn hàng từ 10.000.000đModule lập trình nhúng Wise IoT 8 kênh DI + 8 kênh DO ICP DAS WISE-7255 CR
Features
• Runs on browsers, no extra software tool is required.
• No more programming, Web pages provided for control logic editing.
• IF-THEN-ELSE logic rules execution ability.
• Built-in I/O (DI: 8 Dry/Wet Contact (Sink/Source); DO: 8 Isolated Open Collectors (Source Type)).
• Support I/O channel monitoring/control, Timer.
• Support non-SSL Email sending and CGI Command sending operations.
• Modbus TCP Protocol for SCADA System Integration.
• IEEE 802.3af-compliant Power over Ethernet (PoE). 2-port Ethernet Switch for Daisy-Chain Topology.
Introduction
WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the labor and cost spent on system development. WISE-7255 follows IEEE 802.3af-compliant (classification, Class 1) Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs (Category 5 Ethernet cable). This feature provides greater flexibility and higher efficiency therefore simplifying systems design, saving space, reducing cables and eliminating the requirement for dedicated electrical outlets. Meanwhile, in case under a non-PoE environment, WISE-7255 will still be able to receive power from auxiliary power sources like AC adapters or battery, etc. This module WISE-7255 supports Modbus/TCP protocol to make seamless integration with SCADA software available. It features 8-channel isolated open collector outputs and 8-channel Dry/Wet contact digital inputs. Each output channel supports 650 mA currnet driving 10 ~ 40 VDC.
Specifications
| Software | |
|---|---|
| Protocol | • Modbus TCP • CGI Command (Sending) |
| Function | •Web Interface for Configuration •IF-THEN-ELSE Logic operation (36 rules supported) •I/O channel monitoring and control •Timer operation (12 set supported) •Internal Register operation (48 set supported) •Recipe operation (12 set supported) •Advanced P2P (8 set supported) •non-SSL Email sending function |
| CPU Module | |
|---|---|
| CPU | 16-bit CPU (80 MHz) |
| Isolation | |
|---|---|
| Intra-module Isolation | 2500 VDC |
| EMS Protection | |
|---|---|
| EFT (IEC 61000-4-4) | ±2 kV for Power Line |
| ESD (IEC 61000-4-2) | ±4 kV Contact for each terminal and ±8 kV Air for random point |
| Surge (IEC 61000-4-5) | ±2 kV for Power Line |
| LED Indicators | |
|---|---|
| Status | 1 x PoE Power 1 x System Running 1 x Ethernet Link/Act 16 x I/O Channel Status |
| Digital Input/Counter | |
|---|---|
| Channels | 8 |
| Type | Dry + Wet Contact |
| Sink/Source (NPN/PNP) | Dry: Source Wet: Sink/Source |
| Wet Contact, ON Voltage Level | +10 VDC ~ +50 VDC |
| Wet Contact, OFF Voltage Level | +4 VDC Max. |
| Dry Contact, ON Voltage Level | Close to GND |
| Dry Contact, OFF Voltage Level | Open |
| Dry Contact, Effective Distance | 500 M Max. |
| Max. Counts | 16-bit (65535) |
| Frequency | 50 Hz |
| Min. Pulse Width | 10 ms |
| Input Impedance | 10 kΩ |
| Overvoltage Protection | +70 VDC |
| Digital Output | |
|---|---|
| Channels | 8 |
| Type | Isolated Open Collector |
| Sink/Source (NPN/PNP) | Source |
| Load Voltage | +10 VDC ~ +40 VDC |
| Max. Load Current | 650 mA/Channel at 25 °C |
| Overvoltage Protection | 47 VDC |
| Short-Circuit Protection | Yes |
| Ethernet | |
|---|---|
| Ports | RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators) |
| PoE | Yes |
| Power | |
|---|---|
| Reverse Polarity Protection | Yes |
| Input Range | 12 ~ 48 VDC |
| Consumption | 4.0 W |
| Powered from PoE | Yes, IEEE 802.3af, Class 1 |
| Powered from Terminal Block | Yes, 12 ~ 48 VDC |
| Mechanical | |
|---|---|
| Dimensions (mm) | 76 x 120 x 38 (W x L x H) |
| Installation | DIN-Rail Mounting/Wall Mounting |
| Environmental | |
|---|---|
| Operating Temperature | -25 ~ +75 °C |
| Storage Temperature | -30 ~ +80 °C |
| Humidity | 10 ~ 90% RH, Non-condensing |
Download
Ordering infromation
| WISE-7255 CR | Intelligent I/O Module with 2-port Ethernet Switch, 8-ch DI, 8-ch DO and PoE (RoHS) |
