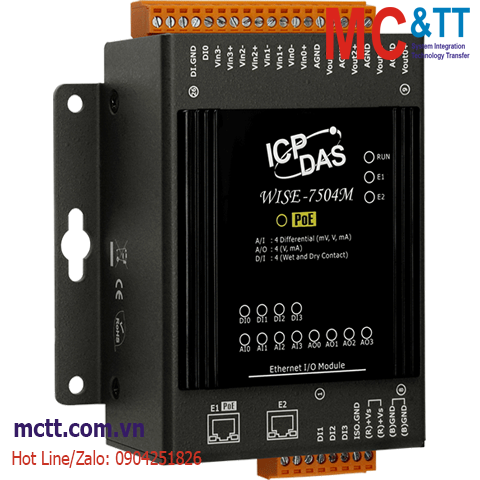

Module lập trình nhúng Wise IoT 4 kênh AI + 4 kênh AO + 4 kênh DI ICP DAS WISE-7504M CR
Features
• Runs on browsers, no extra software tool is required.
• No more programming, Web pages provided for control logic editing.
• IF-THEN-ELSE logic rules execution ability.
• Built-in I/O (AI: 4 Channels; AO: 4 Channels; DI: 4 Channels).
• Support I/O channel monitoring/control, Timer, Schedule operations.
• Support non-SSL Email sending and CGI Command sending operations.
• Modbus TCP Protocol for SCADA System Integration.
• MQTT Protocol for IT & IoT (Internet of Things) System Integration.
• IEEE 802.3af-compliant Power over Ethernet (PoE).
• 2-port Ethernet Switch for Daisy-Chain Topology.
Introduction
WISE (Web Inside, Smart Engine) is a product series developed by ICP DAS that functions as control units for use in remote logic control and monitoring in various industrial applications. WISE offers a user-friendly and intuitive web site interface that allows users to implement IF-THEN-ELSE control logic on controllers just a few clicks away; no programming is required. With its powerful and easy-to-use features, it will minimize the learning curve, shorten time to market and dramatically reduce the labor and cost spent on system development. WISE-7504M is a multi-function module with 4-channel analog inputs, 4-channel analog outputs and 4-channel digital inputs. It provides various programmable analog inputs, and analog outputs. Each analog input is allowed to configure a proper range with 240 Vrms high voltage protection. WISE-7504M follows IEEE 802.3af-compliant Power over Ethernet (PoE) specification. It allows receiving power from PoE enabled network by Ethernet pairs. In additional to this, WISE-7504M also has a built-in two-port Ethernet switch to implement daisy-chain topology. The cabling is much easier and total costs of cable and switch are significantly reduced. By integrating with IF-THEN-ELSE rule engine, WISE-7504M provides more powerful functions such as I/O Monitoring/Control, Counter, Timer, Schedule, non-SSL E-mail sending & CGI Command sending for use in various industrial applications. WISE-7504M also supports Modbus TCP and MQTT protocol to make seamless integration with SCADA, IT and IoT (Internet of Things) system.
Specifications
| Software |
| Protocol |
•Modbus TCP
•CGI Command (Sending)
•MQTT Client (non-SSL)
•Active I/O (MQTT Publish) |
| Function |
•Web Interface for Configuration
•IF-THEN-ELSE Logic operation (72 rules supported)
•I/O channel monitoring and control
•Timer operation (24 set supported)
•Schedule operation (24 set supported)
•Internal Register operation (48 set supported)
•Recipe operation (24 set supported)
•Advanced P2P (8 set supported)
•non-SSL Email sending function
•SNTP Time Synchronization |
| CPU Module |
| CPU |
32-bit CPU (400 MHz) |
| Isolation |
| Intra-module Isolation |
2500 VDC |
| EMS Protection |
| EFT (IEC 61000-4-4) |
±2 kV for Power Line |
| ESD (IEC 61000-4-2) |
±4 kV Contact for each terminal and ±8 kV Air for random point |
| Surge (IEC 61000-4-5) |
±2 kV for Power Line |
| LED Indicators |
| Status |
1 x PoE Power
1 x System Running
1 x Ethernet Link/Act
12 x I/O Channel Status |
| Analog Input |
| Channels |
4 (Differential) |
| Type |
±500 mV, ±1 V, ±5 V, ±10 V
+0 mA ~ +20 mA, ±20 mA, 4 ~ 20 mA
(Jumper Selectable) |
| Resolution |
16-bit |
| Accuracy |
±0.1% |
| Sampling Rate |
10 Samples/Second (Total) |
| Input Impedance |
Voltage: 2 MΩ
Current: 125 Ω |
| Common Mode Rejection |
86 dB Min. |
| Normal Mode Rejection |
100 dB |
| Common Voltage Protection |
±200 VDC |
| Overvoltage Protection |
240 Vrms |
| Overcurrent Protection |
Yes, 50 mA Max. at 110 VDC/VAC Max |
| Individual Channel Configuration |
Yes |
| Channel-to-Channel Isolation |
Yes, 400 VDC |
| Open Wire Detection |
Yes, for 4 ~ 20 mA only |
| Zero Drift |
±20 μV/°C |
| Span Drift |
±25 ppm/°C |
| Analog Output |
| Channels |
4 |
| Type |
+0 VDC ~ +5 VDC, ±5 VDC, +0 VDC ~ +10 VDC,±10 VDC
+0 mA ~ +20 mA, +4 mA ~ +20 mA
(Jumper Selectable) |
| Resolution |
12-bit |
| Accuracy |
±0.1% of FSR |
| Open Wire Detection |
Yes, for 4 ~ 20 mA only |
| Voltage Output Capability |
20 mA @ 10 V |
| Current Load Resistance |
400 Ω |
| Digital Input/Counter |
| Channels |
4 |
| Type |
Dry + Wet Contact |
| Wet Contact, ON Voltage Level |
+1 VDC Max. |
| Wet Contact, OFF Voltage Level |
+3.5 VDC ~ +30 VDC |
| Dry Contact, ON Voltage Level |
Close to GND |
| Dry Contact, OFF Voltage Level |
Open |
| Dry Contact, Effective Distance |
500 M Max. |
| Max. Counts |
16-bit (65535) |
| Frequency |
50 Hz |
| Min. Pulse Width |
10 ms |
| Overvoltage Protection |
+30 VDC |
| Ethernet |
| Ports |
RJ-45 x 2, 10/100 Base-TX, Swtich Ports (LED indicators) |
| PoE |
Yes |
| Power |
| Reverse Polarity Protection |
Yes |
| Input Range |
12 ~ 48 VDC |
| Consumption |
5.1 W |
| Powered from PoE |
Yes, IEEE 802.3af, Class 1 |
| Powered from Terminal Block |
Yes, 12 ~ 48 VDC |
| Mechanical |
| Dimensions (mm) |
97 x 120 x 42 (W x L x H) |
| Installation |
Wall Mounting |
| Environmental |
| Operating Temperature |
-25 ~ +75 °C |
| Storage Temperature |
-30 ~ +80 °C |
| Humidity |
10 ~ 90% RH, Non-condensing |
Download
Data sheet
Documents
Ordering infromation
| WISE-7504M CR |
Intelligent I/O Module with 2-port Ethernet Switch, 4-ch AI, 4-ch AO, 4-ch DI and PoE. Supports Modbus/TCP and MQTT (RoHS) |
