Bộ lập trình nhúng Win-GRAF PAC CPU Cortex-A8 + WinCE 7.0 + 4 slot module I/O ICP DAS WP-8428-CE7 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

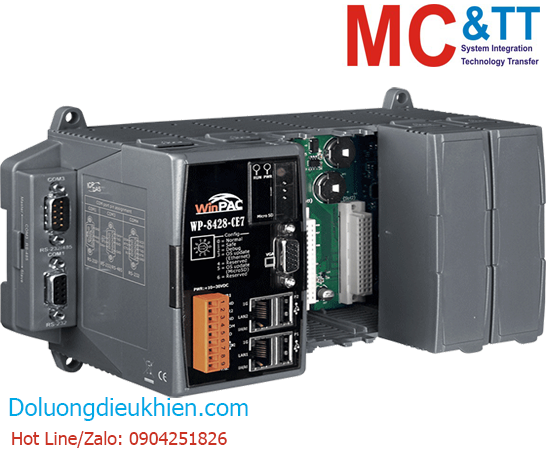

4-slot Win-GRAF Based PAC with Cortex-A8 CPU and WinCE 7.0

THÔNG TIN SẢN PHẨM

Features

• Cortex-A8, 1GHz CPU
• 512 MB DDR3 and 256 MB Flash
• Windows CE 7.0 Professional
• Embedded Win-GRAF SoftLogic (IEC 61131-3)
• Hard Real-Time Capability
• VGA Port Output
• Modbus RTU/TCP (Master, Slave)
• Support eLogger HMI
• Redundant Power Inputs
• Operating Temperature: -25 °C ~ +75 °C

Introduction

The Win-GRAF WinPAC-8000-CE7 Series (WP-8128-CE7/8428-CE7/8828-CE7) is the new generation Windows CE 7.0 based PAC (Programmable Automation Controller) of ICP DAS. Each WP-8000-CE7 is equipped with a Cortex-A8 (1.0 GHz) CPU running a Windows CE 7.0 operating system, a variant of input/output ports (VGA, USB, Ethernet, RS-232/485), and 1/4/8 expansion I/O slots that can be used to integrate high-performance I-8K (parallel-type) and I-87K (serial-type) series I/O modules.

The benefits of running Windows CE 7.0 on a WinPAC device include hard real-time capability, achievable deterministic control and allowing PAC can have a PC-like window displays and operating environment. The WP-8xx8-CE7 series PACs are capable of running Win-GRAF (IEC 61131-3 Standard) software to develop logic control applications, and also supporting M.S. VS 2008 software (VB .NET, C#) to develop HMI and data management applications that can exchange data with Win-GRAF applications. So the application's design is more convenient and more practical.

Specifications

Software
OS	Windows CE 7.0
Protocol	• NET ID • eLogger HMI • Modbus TCP/IP Master • Modbus TCP/IP Slave • Modbus RTU/ASCII Master • Modbus RTU Slave • DCON Protocol • User-defined Protocol • I/O Type: DCON, Modbus RTU, and Modbus TCP/IP remote I/O • Local I/O Modules • Application Protection • Data Binding • On Line Change • HART Master Protocol • Schedule Control • Retain Variables • File Access and Data Log
Development	Embedded Win-GRAF SoftLogic (IEC 61131-3)
Service	FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server
Framework Support	.Net Compact Framework 3.5
Multilanguage Support	English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK	Dll for VC, Dll for Visual Studio.Net 2008

Main Unit
CPU	Cortex-A8, 1.0 GHz
64-bit Hardware Serial Number	Yes
System Memory	512 MB DDR3 SDRAM
Non-Volatile Memory	512 KB MRAM, 16 KB EEPROM
Storage	256 MB Flash, 4 GB microSD card (up to 32 GB)
Real Time Clock	Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer	Dual Watchdog Timer

Display
Signal	VGA
Resolution	800 x 600, 1024 x 768

LED Indicators
Status	1x Power, 1 x System/Programmable

I/O Expansion
I/O Type	I-8K, I-87K series
Slots	4

COM Ports
Ports	2 x RS-232, 1 x RS-485 (3000 VDC Isolated), 1 x RS-232/RS-485

HMI
Buzzer	Yes
Rotary Switch	1 x 10 Position (0 ~ 9)
DIP Switch	8-bit for address

Ethernet
Ports	2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)

USB
Ports	2 x USB 2.0

Power
Input Range	+10 ~ 30 VDC (1 kV Isolated )
Redundant Power Inputs	Yes
Consumption	9.1 W

Mechanical
Casing	Plastic
Dimensions (mm)	231 x 132 x 111 (W x L x H)
Installation	DIN-Rail, Wall mounting
Ingress Protection Rating	IP30 (Aluminum)

Environmental
Operating Temperature	-25 ~ +75°C
Storage Temperature	-30 ~ +80°C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data sheet

Documents

Ordering infromation

WP-8428-CE7 CR

4-slot Win-GRAF Based PAC with Cortex-A8 CPU and WinCE 7.0 (RoHS)
