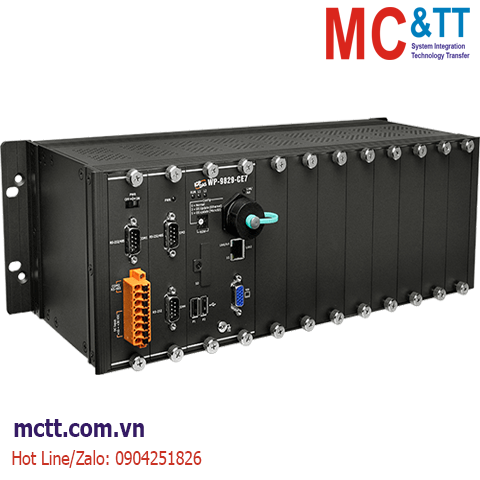

Bộ lập trình nhúng InduSoft PAC 300 tag CPU Cortex-A8 + WinCE 7.0 + 8 slot module IO ICP DAS WP-9829-CE7 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

InduSoft (300 tags) ready, 8-slot WinPAC

THÔNG TIN SẢN PHẨM

Features

• InduSoft 300 tags runtime license ready
• Cortex-A8, 1 GHz CPU
• Windows CE 7.0
• RTC (Real-time clock)
• 64-bit Hardware Serial Number for Software Protection
• 8 x I/O Expansion Slots for I-9k/I-97k Modules
• Various Memory and Storage
‣ 512 MB SDRAM and 256 MB Flash
‣ 16 KB FRAM and 128 KB MRAM for data retention
‣ 1 x SD socket with one SD card
• Various Communication Interfaces
‣ 2 x 10/100/1000BASE-T Ethernet Ports
‣ 4 x Serial Ports (RS-232/485)
‣ 2 x USB 2.0 (host)
• Redundant Power Input

Introduction

The WP-9829-CE7 is CE7 based WinPAC that combine computing, I/O, and operator interface into a single unit, and provide the perfect solution for data acquisition and control in an individual PAC. It is equipped with an ARM Cortex-A8 (32-bit and 1 GHz) CPU and a variety of input/output ports (USB, Ethernet, RS-232/485). Local 8 I/O slots are available to use ICP DAS I-9K and I-97K series I/O modules and remote I/O expansion is available to use Ethernet I/O modules and RS-485 I/O modules.

This WinPAC also features with the powerful InduSoft.
InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop Human Machine Interface (HMI) and Supervisory Control and Data Acquisition (SCADA) systems. Compared to traditional IPC + PLC solutions, WinPAC reduces overall system cost, space and gives you all the best features of IPC and PLC.

Application

Specifications

Software
OS	Windows CE 7.0
Service	FTP Server, Web Server (Supports VB script, JAVA script), Embedded SQL Server
Framework Support	.Net Compact Framework 3.5
Multilanguage Support	English, German, French, Spanish, Russian, Italian, Korean, Simplified Chinese, Traditional Chinese
SDK	Dll for VC, Dll for Visual Studio.Net 2008

Main Unit
CPU	Cortex-A8, 1.0 GHz
64-bit Hardware Serial Number	Yes
System Memory	512 MB DDR3 SDRAM
Storage	256 MB Flash, 4 GB SD card (up to 32 GB)
Non-Volatile Memory	128 KB MRAM, 16 KB EEPROM
Real Time Clock	Provide seconds, minutes, hours, dates, day of week, month, year
Watchdog Timer	Dual Watchdog Timer

Display
Signal	VGA
Resolution	800 x 600, 1024 x 768

LED Indicators
Status	1 x System, 2 x Power, 2 x Programmable

I/O Expansion
I/O Type	I-9K, I-97K series
Slots	8

COM Ports
Ports	1 x RS-232 (3000 VDC Isolated), 1 x RS-485 (3000 VDC Isolated), 2 x RS-232/RS-485 (3000 VDC Isolated)

HMI
Buzzer	Yes
Rotary Switch	1 x 10 Position (0 ~ 9)

Ethernet
Ports	2 x RJ-45, 10/100/1000 Base-TX (Auto-negotiating, Auto MDI/MDI-X, LED indicators)

USB
Ports	2 x USB 2.0

Power
Capacity	1.5 A, 5 V supply to CPU and backplane; 6.5 A, 5 V supply to I/O expansion slots, total 40 W
Input Range	+10 ~ 30 VDC (1 kV Isolated )
Redundant Power Inputs	Yes, with one power relay (1 A @ 24 VDC) for alarm
Consumption	10.8 W (0.45 A @ 24 VDC)

Mechanical
Casing	Metal
Dimensions (mm)	422 x 133 x 164 (W x L x H)
Installation	DIN-Rail, Wall mounting
Ingress Protection Rating	IP30 (Aluminum)

Environment
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-30 ~ +80 °C
Humidity	10 ~ 90 % RH, Non-condensing

Download

Datasheet

Documents

Ordering Information

WP-9829-CE7 CR

InduSoft (300 tags) ready, 8-slot WinPAC (WinCE 7.0) (RoHS)
