Module Zigbee Modbus RTU 4 kênh AI + 4 kênh AO ICP DAS ZT-2024 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

ZigBee Wireless 4-channle Voltage/Current Output Module (ZigBee Router) (Asia Only)

THÔNG TIN SẢN PHẨM

Features

ISM 2.4 GHz Operating Frequency
Fully Compliant with 2.4 G / ZigBee Specifications
Wireless Transmission Range up to 700 m
External DIP and Rotary Switches for easy Configuration
GUI Configuration Software (Windows Version)
4 Analog Output Channels (V, mA)
Configurable Power-on Value Settings
Configurable Safe Value Settings
±4 kV ESD Protections (Conact for each Terminal)
DIN-Rail Mounting

Introduction

The ZT-2024 is a 12-bit, 4-channel analog output wireless ZigBee module that provides a programmable output range an all channels, including 0 ~ +10 VDC, -10 VDC ~ +10 VDC, 0 ~ +5 VDC, -5 VDC ~ +5 VDC, 0 ~ +20 mA or +4 mA ~ +20 mA. There are also options for configuring the power-on value and the safe value. The module address, protocol, checksum, ZT-PID, ZT-channel and type code settings can be easily configured settings using a combination of rotary and DIP switches,

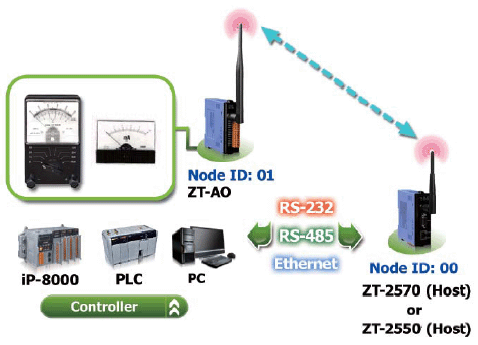

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment

Specification

CPU Module
Watchdog Timer	Yes, Module (1.6 Seconds), Communication (Programmable)

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for Power Line, Communication Line and each Channel, ±8 kV Air for Random Point
Surge (IEC 61000-4-5)	±3 kV for Power Line

LED Indicators
Status	1 x Power and Communication

ZigBee
Certifications	FCC/FCC ID, CE (RED excluded)
Max. Slaves	255
Protocol	Supports DCON and Modbus RTU Protocols
Standard	ZigBee 2007 Pro
Transmission Power	11 dBm (FCC Certificated) (Max. 19 dBm)
Transmission Range	700 m (Typical)

Analog Input
Type	0 ~ +10 VDC, -10 VDC ~ +10 VDC, 0 ~ +5 VDC, -5 VDC ~ +5 VDC, 0 ~ +20 mA, +4 mA ~ +20 mA

Analog Output
Channels	4
Resolution	12-bit
Accuracy	±0.1% of FSR
Programmable Output Slope	0.125 to 2048 mA/ second 0.0625 to 1024 V/ second
Voltage Output Capability	10 V @ 10 mA
Current Load Resistance	External +24 V power : 1050 Ω
Power on Value	Yes
Safe Value	Yes
Isolation	2500 VDC

Power
Input Range	+10 VDC ~ +30 VDC
Consumption	2.2 W Max.

Mechanical
Dimensions (mm)	33 x 87 x 110 (W x L x H)
Installation	DIN-Rail

Environmental
Operating Temperature	-25 °C ~ +75 °C
Storage Temperature	-30 °C ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data Sheet

Documents

Odering information

ZT-2024 CR

ZigBee Wireless 4-channle Voltage/Current Output Module (ZigBee Router) (RoHS)
(Asia Only)
