Module Zigbee Modbus RTU 4 kênh AI + 2 kênh AO + 2 kênh DI + 2 kênh DO ICP DAS ZT-2026 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

ZigBee Wireless 4-ch Voltage Input, 2-ch Voltage Output, 2-ch DI and 2-ch DO Module (ZigBee Router) (Asia Only)

THÔNG TIN SẢN PHẨM

Features

ISM 2.4 GHz Operating Frequency
Fully Compliant with 2.4 G / ZigBee Specifications
Wireless Transmission Range up to 700 m
External DIP and Rotary Switches for easy Configuration
GUI Configuration Software (Windows Version)
4 AI, 2 AO, 2 DI and 2 DO Channels
Individual Channel Configuration
Overvoltage Protection is up to 240 Vrms
Configurable Power-on Value Settings
Configurable Safe Value Settings
±4 kV ESD Protections (Conact for each Terminal)
DIN-Rail Mounting

Introduction

The ZT-2026 is a wireless ZigBee module that offers 4 differential analog input channels(Current input requires optional external 125 Ω resistor), 2 analog output channels, 2 digital input channels and 2 digital output channels and provides a programmable analog input and output range. Each analog input channel can be configured to an individual range and each has 240 Vrms overvoltage protection. There are also options for a power-on value and a safe value. Users can easily configure the module address, protocol, checksum, ZT-PID, ZT-channel and type code settings using a combination of rotary and DIP switches.

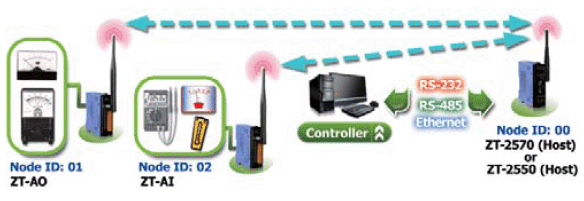

Application

Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment

Specification

CPU Module
Watchdog Timer	Yes, Module (1.6 Seconds), Communication (Programmable)

Isolation
Intra-module Isolation	2500 VDC (for AI, AO, DI and DO)

EMS Protection
EFT (IEC 61000-4-4)	±4 kV for Power Line
ESD (IEC 61000-4-2)	±4 kV Contact for Power Line, Communication Line and each Channel, ±8 kV Air for Random Point
Surge (IEC 61000-4-5)	±3 kV for Power Line

LED Indicators
Status	1 x Power and Communication

ZigBee
Antenna	2.4 GHz - 5 dBi Omni-directional Antenna
Certifications	FCC/FCC ID, CE (RED excluded)
Max. Slaves	255
Protocol	Supports DCON and Modbus RTU Protocols
Standard	ZigBee 2007 Pro
Transmission Power	11 dBm (FCC Certificated) (Max. 19 dBm)
Transmission Range	700 m (Typical)

Analog Input
Channels	4 Differential
Type	±10 V, ±5 V, ±1 V, ±500 mV, ±150 mV or -20 mA ~ +20 mA (Requires Optional External 125 Ω Resistor)
Accuracy	±0.1% of FSR
Sampling Rate	10 Samples/Second (Total)
Bandwidth	15.7 Hz
Input Impedance	>2 MΩ
Common Mode Rejection	86 dB
Normal Mode Rejection	100 dB
Overvoltage Protection	240 Vrms
Individual Channel Configuration	Yes

Analog Output
Channels	2
Type	±10 VDC, ±5 VDC, 0 ~ 10 VDC or 0 ~ 5 VDC
Resolution	12-bit
Accuracy	±0.1% of FSR
Programmable Output Slope	0.0625 ~ 512 V/Second
Voltage Output Capability	20 mA @ 10 V
Power on Value	Yes
Safe Value	Yes

Digital Input
Channels	2 (Sink)
Wet Contact, ON Voltage Level	3.5 VDC ~ 50 VDC
Wet Contact, OFF Voltage Level	1 VDC Max.
Input Impedance	10 KΩ

Digital Output
Channels	2 (Sink)
Type	Isolated Open Collector
Load Voltage	+5 VDC ~ +50 VDC
Max. Load Current	700 mA/channel
Power on Value	Yes
Safe Value	Yes

Power
Input Range	+10 VDC ~ +30 VDC (Reverse Polarity Protection)
Consumption	2.1 W Max.

Mechanical
Dimensions (mm)	33 x 87 x 110 (W x L x H)
Installation	DIN-Rail

Environmental
Operating Temperature	-25 °C ~ +75 °C
Storage Temperature	-30 °C ~ +80 °C
Humidity	10 ~ 90% RH, Non-condensing

Download

Data Sheet

Documents

Ordering information

ZT-2026 CR

ZigBee Wireless 4-ch Voltage Input, 2-ch Voltage Output, 2-ch DI and 2-ch DO Module (ZigBee Router) (RoHS)
(Asia Only)
