Bộ chuyển đổi RS-232/485 sang Zigbee (Router) ICP DAS ZT-2551 CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

RS-232/RS-485 to ZigBee Converter (Slave, ZigBee Router)

THÔNG TIN SẢN PHẨM

Features

ISM 2.4 GHz Operating Frequency
Fully Compliant with 2.4 G (IEEE802.15.4/ ZigBee Specifications)
Fully Compliant with ZigBee Pro (ZigBee 2007)
Wireless Transmission Range up to 700 m (Default)
Adjustable RF Transmission Output Power
Supports AES-128 Encryption for the Wireless Communication
GUI Configuration Software (Windows Version)
RS-232/RS-485 Interface Supported
Source Identification for the non-address Device Data Transmission
Supports Broadcast Transmission for the Redundancy Transmission Path
Supports Unicast Transmission to Reduce Network Loading
Supports Topology Utility for Network Monitoring and Improvement
DIN-Rail Mountable

Features

The ZT-2550 and ZT-2551 series modules are small-sized wireless ZigBee converters based on the IEEE802.15.4 standard that allow RS-232, RS-485 interface to be converted to a personal area ZigBee network. The typical transmission of ICP DAS ZT series ZigBee products is 700 meters (LOS, line of sight), with a transmission frequency range of between 2.405 GHz and 2.48 GHz, separated into 5 MHz sectors, providing 16 channels and 16384 PAN IDs. ZT-2000 series is not only a long distance wireless converter but also can act a ZigBee router to extend the transmission range and improve the quality of wireless signal. ZT-2000 series products are specification for a suite of high level communication protocols using small, low-power digital radios module, which are fitted the ZigBee 2007 (ZigBee Pro) of ZigBee Alliance. In the ZigBee network, it is only allowed one ZigBee Host and called “ ZigBee Coordinator”, ZT-2550 series products, are used to initialize and manager the routing. In addition, One ZigBee network are able to manager 255 ZigBee router and responsible for receiving or bypassing data from parent or child node. A Windows compatible GUI configuration utility is available. The utility allows users to set different configurations based on the type of application, together with several of required ZigBee variables such as Pan ID. The friendly user interface is also helping user be familiar with ZT-2000 series.

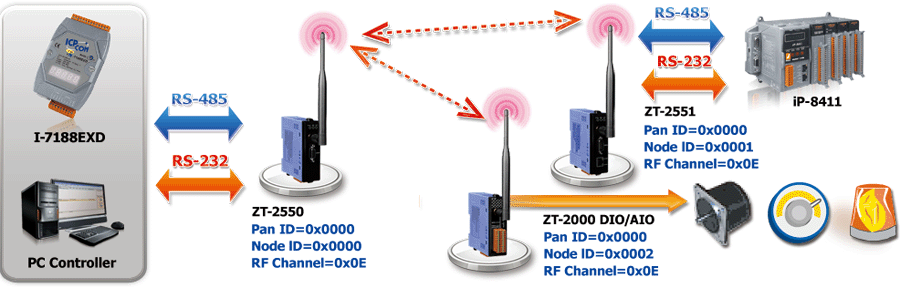

Application

Specification

CPU Module
CPU	8-bit microprocessor

LED Indicators
Status	1 x Power 1 x Net 1 x RxD

RF
Channels	16
Transmission Power	11 dBm

ZigBee
Antenna	5 dBi Omni-Directional antenna
Certifications	FCC/FCC ID, CE (RED included)
Max. Slaves	255
Transmission Range	700 m (Typical)

COM Ports
Ports	1 x RS-232 (TxD, RxD and GND) 1 x RS-232 (DB9 Male) 1 x RS-485 (DATA+, DATA-; internal ASIC self-tuner)

Power
Input Range	+10 VDC ~ +30 VDC
Consumption	1 W

Mechanical
Casing	Plastic
Dimensions (mm)	30 x 87 x 110 (W x L x H)
Installation	DIN-Rail

Environmental
Operating Temperature	-25 ~ +75 °C
Storage Temperature	-40 ~ +80 °C
Humidity	5 ~ 95% RH, Non-condensing

Download

Data Sheet

Documents

Ordering information

ZT-2551 CR

RS-232/RS-485 to ZigBee Converter (Slave, ZigBee Router) (RoHS)
