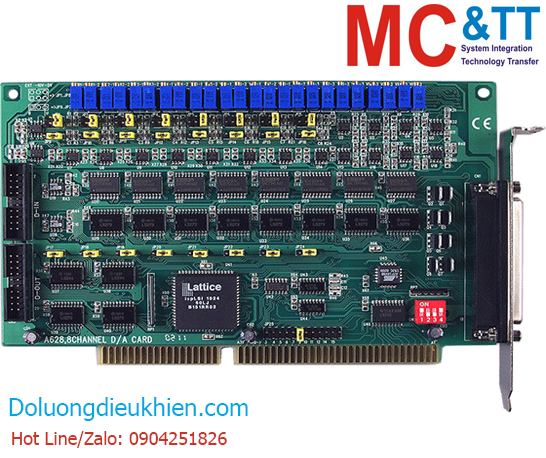

Card ISA 8 kênh đầu ra tương tự AO + 16 kênh vào/ra số TTL/5V ICP DAS A-628/S CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

ISA Bus, 8-ch 12-bit AO Board

THÔNG TIN SẢN PHẨM

Features

ISA Bus
6 analog output channels for A-626/A726 only
8 analog output channels for A-628 only
12-bit resolution
Voltage output range: 0 ~ 5 V, 0 ~ 10 V, ±5 V, ±10 V
Current output range: 4 ~20 mA (sink)
Internal reference voltage: -5 V, -10 V
External reference voltage: ±10 V (max.) AC or DC
IRQ level from IRQ3 ~ IRQ 15
16 digital output channels
16 digital input channels
Connects directly to DB-16P, DB-16R, DB-24PR, DN-20 and DN-37

Introduction

The A-726 card is new generation product is designed as completely compatible with the A-626.

The A-626, A-628 and A-726 are 12-bit analog output boards with 16 digital input channels and 16 digital output channels. The A-626 and A-726 supports 6 analog output channels while the A-628 supports 8 analog output channels. They are supports both current and voltage output range .The each D/A channel can be individually jumper selectable for different voltage range +/-10 V, +/-5 V, 0 ~ 5 V, 0 ~ 10 V and 4 ~ 20 mA (sink) current. On board reference chip BB Ref-01 is used for solving the thermo-drifting problem of the reference voltage.

These cards support various OS versions, such as Linux, DOS, Windows 98/NT/2000 and 32-bit Windows XP/Vista/7. DLL and Active X control together with various language sample programs based on Turbo C++, Borland C++, Microsoft C++, Visual C++, Borland Delphi, Borland C++ Builder, Visual Basic and LabVIEW are provided in order to help users quickly and easily develop their own applications.

Specification

Hardware
Connector	Female DB37 x 1 20-pin Box header x 2

Analog Output
Channels	8
Range	Voltage: ±10 V, ±5 V, 0 ~ 10 V, 0 ~ 5 V Current: 4 ~ 20 mA
Resolution	12-bit
Accuracy	0.01% of FSR ±1 LSB @ 25 °C, ± 10 V
Voltage Output Capability	±5 mA
Response Time	500 kHz (Typical)
Operation Mode	Static Update

Digital Input
Channels	16
Type	5 V/TTL
TTL Input, ON Voltage Level	2.0 V Min.
TTL Input, OFF Voltage Level	0.8 V Max.
Response Speed	1.0 MHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	16
Type	5 V/TTL
Operation Mode	Static Update
Voltage	Logic 0: 0.4 V Max. Logic 1: 2.4 V Min.
Max. Load Current	Sink: 2.4 mA @ 0.8 V Source: 0.8 mA @ 2.0 V
Response Speed	1.0 MHz (Typical)

PC Bus
Type	ISA
Data Bus	8-bit

Power
Consumption	1.1 A @ +5 V 130 mA @ +12 V 105 mA @ -12 V

Mechanical
Dimensions (mm)	106 x 157 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Data sheet

D ocuments

Odering information

A-628/S CR

ISA Bus, 8-ch 12-bit Analog Output Board (RoHS)
Includes one DB-37 wiring termination board
