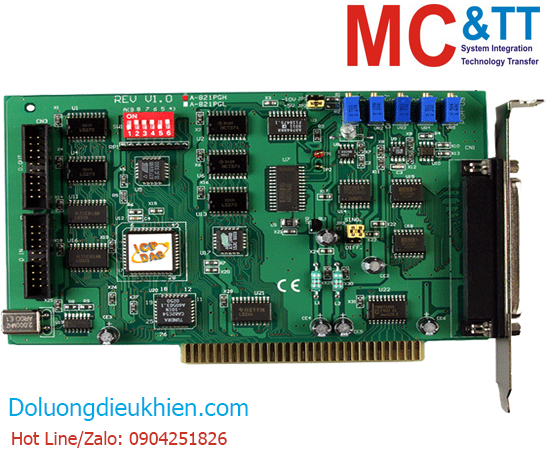

Card ISA 16 kênh AI 12 bits, 45 kS/s + 2 kênh AO + 16 kênh DI/DO + 1 kênh Timer/Counter/Frequency ICP DAS A-821PGH/S CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

ISA Bus, 45 kS/s, 16-ch 12-bit AI Multifunction Board

THÔNG TIN SẢN PHẨM

Features

12-bit A/D converter
12-bit D/A converter
16 single-ended or 8 differential input channels
45 k/s sampling rate
One 12-bit analog output channel
Analog Output Range : 0 ~ 5 V , 0 ~ 10 V
Software programmable gain :
- A-821PGL (Low Gain Version ) : 1 , 2 , 4 , 8
- A-821PGH (High Gain Version) : 1, 10, 100, 1000
Interrupt handling
A/D Trigger modes : Software Trigger, Pacer Trigger, External Trigger , Event Trigger
A/D data transfer modes : polling , interrupt , DMA
16 digital input & 16 digital output
37 pin D-Sub connector

Introduction

The A-821PGH/L is 12-bit multifunction analog and digital I/O boards for the PC/AT compatible computer. The A-821PGH/L offer 16 single-ended or 8 differential analog inputs, plus two channels of analog output with 12-bit resolution. In addition, The A-821PGH/PGL has 16 digital input, 16 digital output , and one timer/counter channel. The A-821PGH Provides gain of 1, 10,100 , 1000 while the A-821PGL provides gains of 1 , 2 , 4, 8 . It has a maximum sampling rate of 45 k Samples/Sec. . Interrupts are programmable 3 and 9 and provide one channel D/A output.

ICP DAS discontinue the /NDA model (without D/A function) since the standard model provides full functions that covers the requirement for /NDA version. Please contacts us for OEM/ODM project if you are interested on customized version (or /NDA model).

Specification

Hardware
Connector	Female DB37 x 1 20-pin box header x 2

Analog Input
Channels	16 single-ended/8 differential
Range	± 5V, ± 0.5V, ± 0.05V, ± 0.005V
Resolution	12-bit
Accuracy	0.1% of FSR ±1 LSB @ 25 °C, ±10 V
Sampling Rate	45 kS/s. Max.
Overvoltage Protection	Continuous ±35 Vp-p
Zero Drift	15 ppm/°C of FSR
Trigger Mode	Software, Pacer
Data Transfer	Polling, Interrupt

Analog Output
Channels	1
Range	0 ~ 10 V, 0 ~ 5 V
Resolution	12-bit
Accuracy	±10 LSB
Voltage Output Capability	±5 mA
Response Time	500 kHz (Typical)
Slew Rate	0.6 μs to 0.01% for full scale step
Operation Mode	Static Update

Digital Input
Channels	16
Type	5 V/TTL
TTL Input, ON Voltage Level	2.0 V Min.
TTL Input, OFF Voltage Level	0.8 V Max.
Response Speed	1.0 MHz (Typical)
Trigger Mode	Static Update

Digital Output
Channels	16
Type	5 V/TTL
Operation Mode	Static Update
Voltage	Logic 0: 0.4 V Max. Logic 1: 2.4 V Min.
Max. Load Current	Sink: 40 mA Source: 20 mA
Response Speed	1.0 MHz (Typical)

Timer/Counter/Frequency
Channels	1
Type	5V /TTL
Resolution	16-bit

PC Bus
Type	ISA
Data Bus	16-bit

Power
Consumption	300 mA @ +5 V 60 mA @ +12 V 30 mA @ -12 V

Mechanical
Dimensions (mm)	106 X 160 X 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Data sheet

D ocuments

Odering information

A-821PGH/S

ISA Bus, 45 kS/s, 16-ch 12-bit Analog Input Multifunction Board (with Daughter Board DB-8225)
Includes one CA-3710 D-Sub cable
