Card ISA 32 kênh đầu vào tương tự AI ICP DAS ISO-AD32L/S CR

Thương hiệu: ICP DAS | Tình trạng: Còn hàng

Liên hệ

ISA Bus, 200 kS/s, 32-ch, 12-bit Isolated AI Board (1 K word FIFO)

THÔNG TIN SẢN PHẨM

Features

Built-in DC/DC converter with 1000 VDC isolation
32 single-ended or 16 differential input channels, 5000 Vrms photo-isolation protections
Maximum 200 k 12-bit sampling rate
Built-in 1 KB FIFO
Auto-channel / gain scan
Command set programming
Gap-free A/D conversion

Introduction

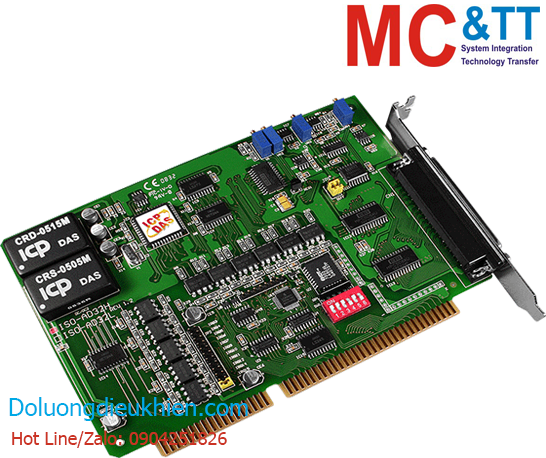

The ISO-AD32H/L ( H for high gain / L for low gain ) is a bus-type isolated 12-bit A/D board for PC/AT compatible computers. The isolation inputs can operate with up to 500 Vrms of common-mode voltage. The ISO-AD32H/L features a 200 kHz 12-bit analog-to-digital converter ,on board 1 KB FIFO buffer ,32 singled-ended or 16 differential analog input channels .The analog input allows auto-channel /gain scan . This board support gap-free A/D conversion at 200 kHz sampling rates for single channel or 100 kHz sampling rates for channel scan . The "Hands-Off" design permits all board parameters (channel selection, gain, input type, and operating mode ) to be performed in software . Once installed , you will never have to take care it again. The board's innovative design improves several drawbacks of the conventional isolated A/D card . Such as : 1.The speed is faster ; up to 200 kHz 2. The sampling rate can be programmable 3. On board FIFO buffer support gap-free A/D conversion and work well under NT and 95 environment. 4. High channel count input can be implemented in half size .

Specification

Hardware
Connector	Female DB37 x 1

Analog Input
Channels	32 single-ended
Range	Gain: 0.5,1, 2, 4, 8 Bipolar Range: ±10 V, ±5 V, ±2.5 V, ±1.25 V, ±0.625 V Unipolar Range: 0 ~ 10 V, 0 ~ 5 V, 0 ~ 2.5 V, 0 ~ 1.25 V
Resolution	12-bit
Accuracy	0.01% of FSR ±1 LSB @ 25 °C, ± 10 V
Sampling Rate	200 kS/s. Max.
Input Impedance	10 MΩ/6 Pf
Overvoltage Protection	Continuous ±35 Vp-p
Zero Drift	±25 ppm/°C of FSR
FIFO Size	1024 samples
Trigger Mode	Software, Pacer, External
Data Transfer	Polling

PC Bus
Type	ISA
Data Bus	8-bit

Power
Consumption	850 mA @ +5 V

Mechanical
Dimensions (mm)	122 x 173 x 22 (W x L x D)

Environmental
Operating Temperature	0 ~ +60°C
Storage Temperature	-20 ~ +70°C
Humidity	5 ~ 85% RH, Non-condensing

Download

Data sheet

D ocuments

Odering information

ISO-AD32L/S

ISA Bus, 200 kS/s, 32-ch, 12-bit Islated Analog Input Board (1 K word FIFO) (with DN-37)
Includes one CA-3710 D-Sub cable
