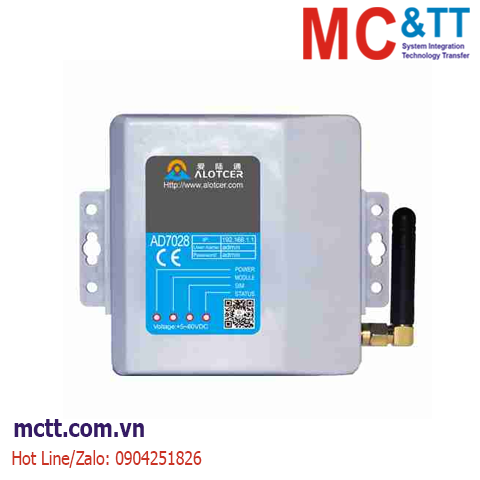

Router công nghiệp 3G/4G VPN 1 cổng LAN Alotcer AD7028

Thương hiệu: Alotcer | Tình trạng: Còn hàng

Liên hệ

Industrial 3G/4G Router 1 LAN

THÔNG TIN SẢN PHẨM

AD7028 Cellular Router is a kind of cellular terminal device that developed based on 2G/3G/4G LTE connectivity, VPN client, among other features. It adopts high-powered industrial 32 bits CPU and embedded real time operating system. It supports 2 separate RS232 (or 1 RS232 and 1 RS485) and 1 LAN port that can conveniently and transparently connect one device to a cellular network. It support wide power range 5-60V DC. With a compact and robust design, it includes the necessary accessories for Mount kit or DIN rail.

It has been widely used on M2M fields, such as intelligent transportation, smart grid, industrial automation, telemetry, finance, POS, water supply, environment protection, post, weather, and so on.

Tính năng

Support All Protocols Such as IEC 101, IEC104
5G/4G Network, Trend Leading, National Invention Patent
State Grid Network Hardware Encryption
User Configuration Information Anti-lost Mechanism
Efficient Remote Device Management

Thông số kỹ thuật

Contents

Items	Contents
Industrial Design	High-powered industrial cellular module
	High-powered industrial 32bits CPU
	Wide Operating Temperature(-35~+75ºC)
	Power range: DC 5~60V
High Reliability	Support hardware and software WDT
	Support auto recovery mechanism, including online detect, auto redial when offline to make it always online
	Ethernet port: 1.5KV magnetic isolation protection
	RS232/RS485 ports:15KV ESD protection
	SIM/UIM port: 15KV ESD protection
	Power port: reverse-voltage and over voltage protection
	large serial port data cache(10MB) ,ensure the data is not lost
	Antenna port: lightning protection(optional)
Standard and Convenience	Adopt terminal block interface, convenient for industrial application
	Support standard two RS232(or RS232 and RS485) and Ethernet ports that can connect to serial devices directly
	Support several work modes
	Support intellectual mode, enter into communication state automatically when powered
	Convenient configuration and maintenance interface
High-performance and Security	Support TCP server
	Support double data centers, one main and another backup
	Support multi data centers and it can support 5 data centers at the same time
	Support NTP, RTC embedded.
	Support MAC address cloning.
	Support dynamic domain name(DDNS) and IP access to data center
	Design with standard TCP/IP protocol stack
	Support APN/VPDN
	Support local log storage.
	Support dual SIM/UIM card (optional).
	Support hardware encryption/decryption (optional)
Hardware System	CPU	Industrial 32 bits CPU
	FLASH	16MB (Extendable to 64MB)
	SDRAM	128MB
Interface	Serial	2 RS232 ports (or 1 RS232 and 1 RS485), 15KV ESD protection Serial port: 8PIN industrial terminal, 3.81mm pitch Data bits: 5, 6 ,7, 8 Stop bits: 1, 1.5(optional), 2 Parity: none, even, odd, space, mark Baud rate: 110~230400 bps Large serial port data cache:10MB
	LAN	1 10/100Mbps Ethernet ports(RJ45), auto MDI/MDIX, 1.5KV magnetic isolation protection
	Antenna	Standard SMA female interface, 50 ohm
	SIM/UIM	Standard 3V/1.8V user card interface, 15KV ESD protection
	Power	Terminal block interface, reverse-voltage and over voltage protection
	Reset	Inside the module. Press this key for 8 seconds to restore the module to its original factory default settings
	Indicator	“POWER”、”MODULE”、”SIM”、”STATUS”
Network	Wireless Network	GSM/GPRS/EDGE: 850/900/1800/1900MHz CDMA: 800/1900MHz WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz CDMA2000 1x/ EVDO Rev. A: 800/1900MHz TD-SCDMA: 1880-1920/2010-2025MHz(A/F) TDD-LTE:Band 38/39/40/41& Band 61/62 (Private Network) FDD-LTE:Band1/2/3/4/5/7/8/12/13/17/18/19/20/21/25/26/28/66
	PPP Protocol	Support PPP Protocol
	PPP Heartbeat	Maintaining links with the cellular network to prevent forced sleep, to ensure the stability of dial-up link.
	Network Authentication	Support CHAP/PAP Authentication
	TCP Heartbeat	Monitor the server connection
Power supply	Power range	DC 5~60V, Recommended 12VDC
	Communication Current	<410mA (@12VDC)
	Standby Current	<250mA（@12VDC）
Physical	Shell Material	ABS
	Dimensions	108.43x85x40.7mm
	Weight	126g
	Installation	Mount Kit or DIN Rail 35mm (optional)
Environmental Limits	Operating Temperature	-35~+75ºC (-31~+167℉)
	Storage Temperature	-40~+85ºC (-40~+185℉)
	Operating Humidity	95% ( unfreezing)

Thông tin đặt hàng

Product Type	Model	Product Name
Standard	AD7028-W	WCDMA Cellular Router
	AD7028-E	EVDO Cellular Router
	AD7028-F	FDD-LTE Cellular Router
	AD7028-T	TDD-LTE Cellular Router
	AD7028-D	TDD/FDD-LTE Cellular Router
Dual SIM	AD7028-WS	WCDMA Dual SIM Cellular Router
	AD7028-ES	EVDO Dual SIM Cellular Router
	AD7028-FS	FDD-LTE Dual SIM Cellular Router
	AD7028-TS	TDD-LTE Dual SIM Cellular Router
	AD7028-DS	TDD/FDD-LTE Dual SIM Cellular Router

Tài liệu

Datasheet
